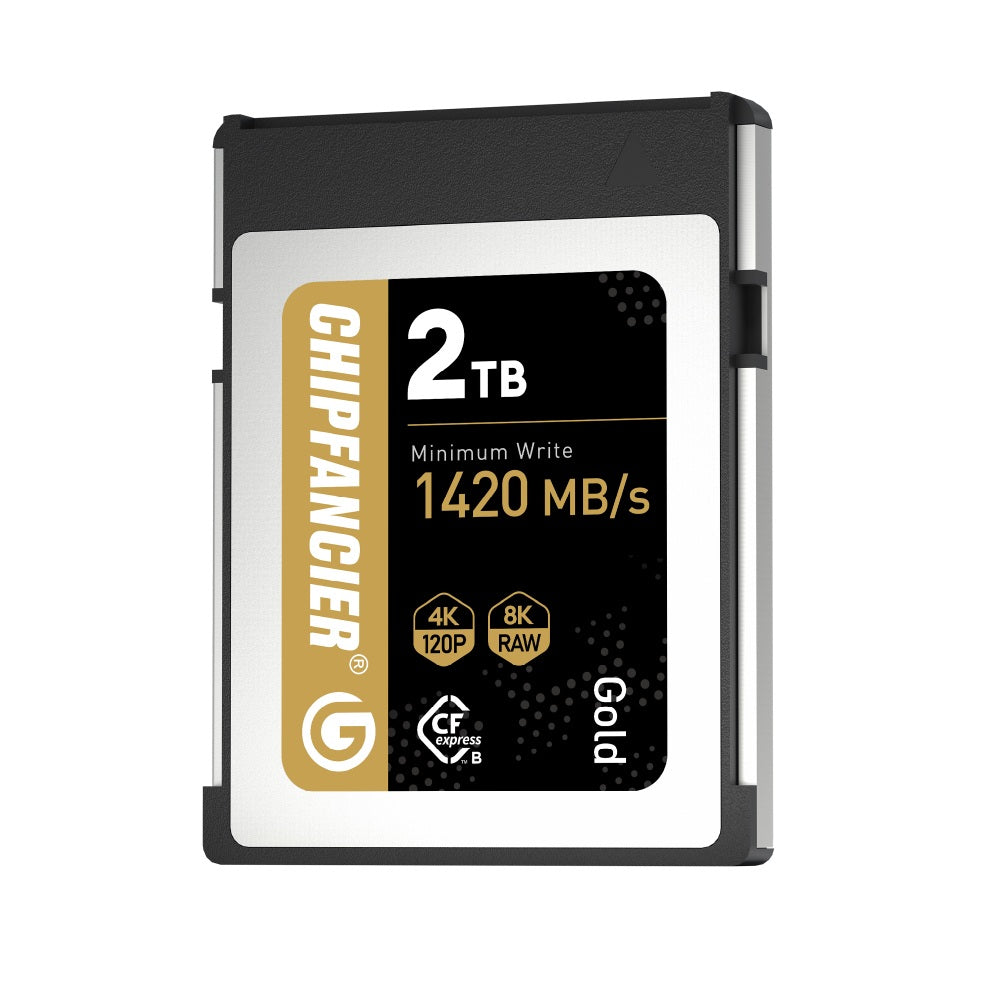

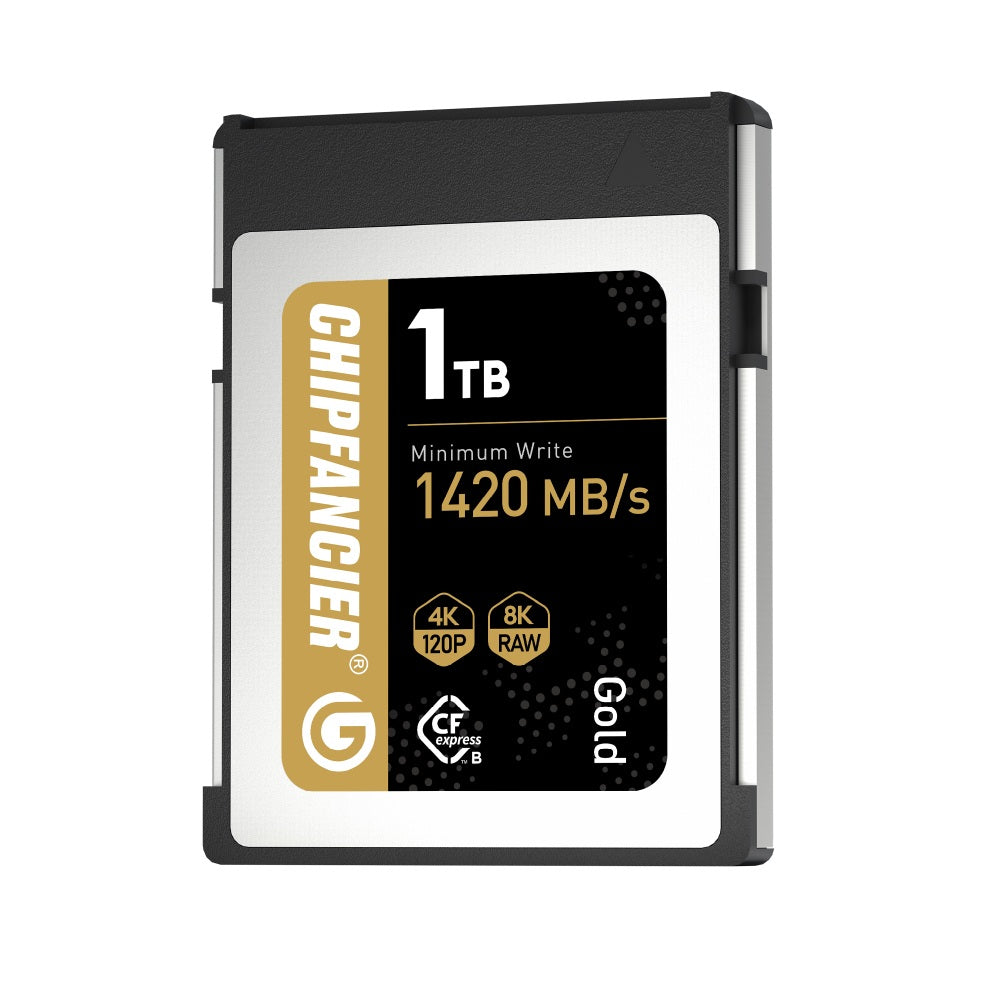

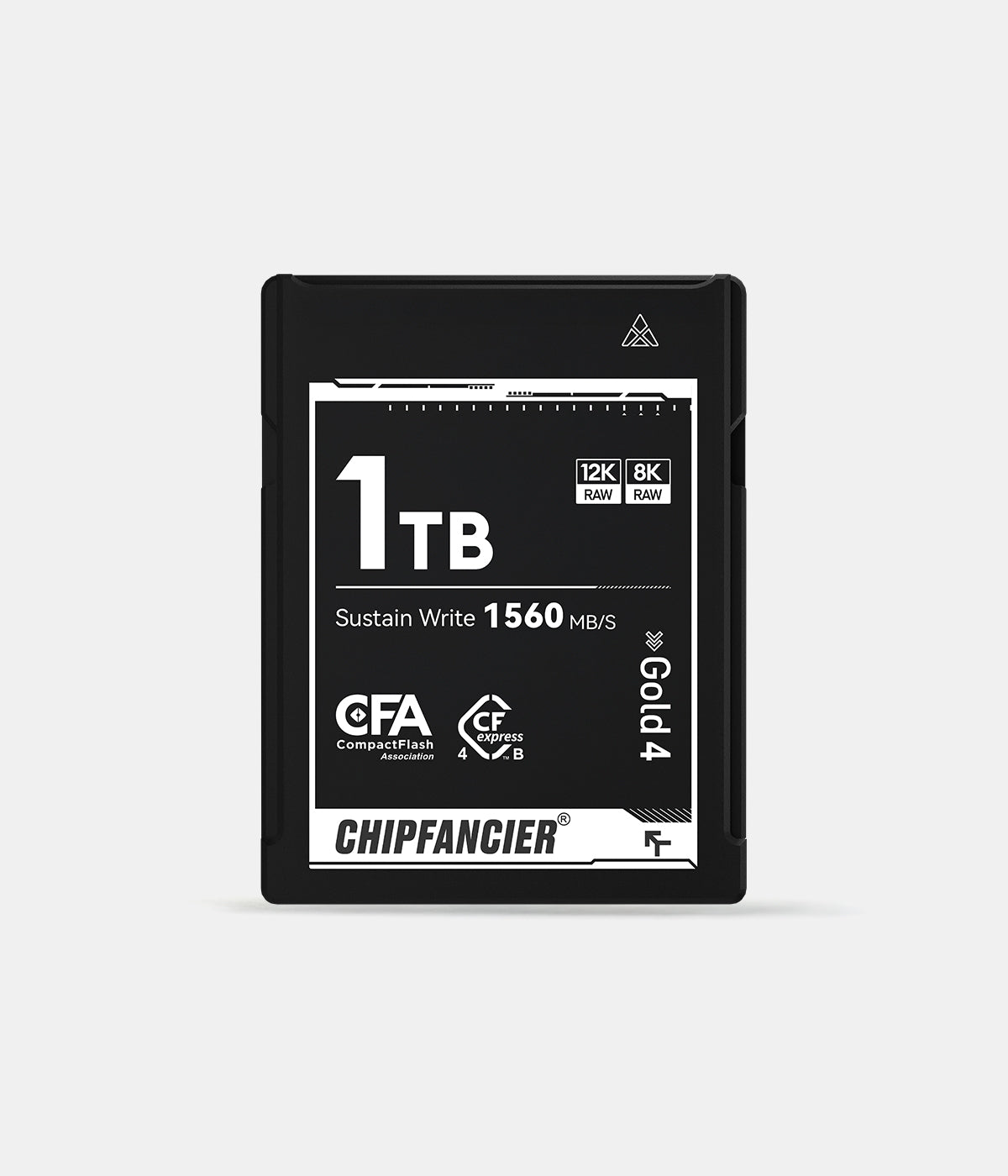

CHIPFANCIER CFexpress Type B 2.0 Memory Card
Lifetime Warranty
Delivery time 4-10 business daysShoot
without interruption and store without lag!

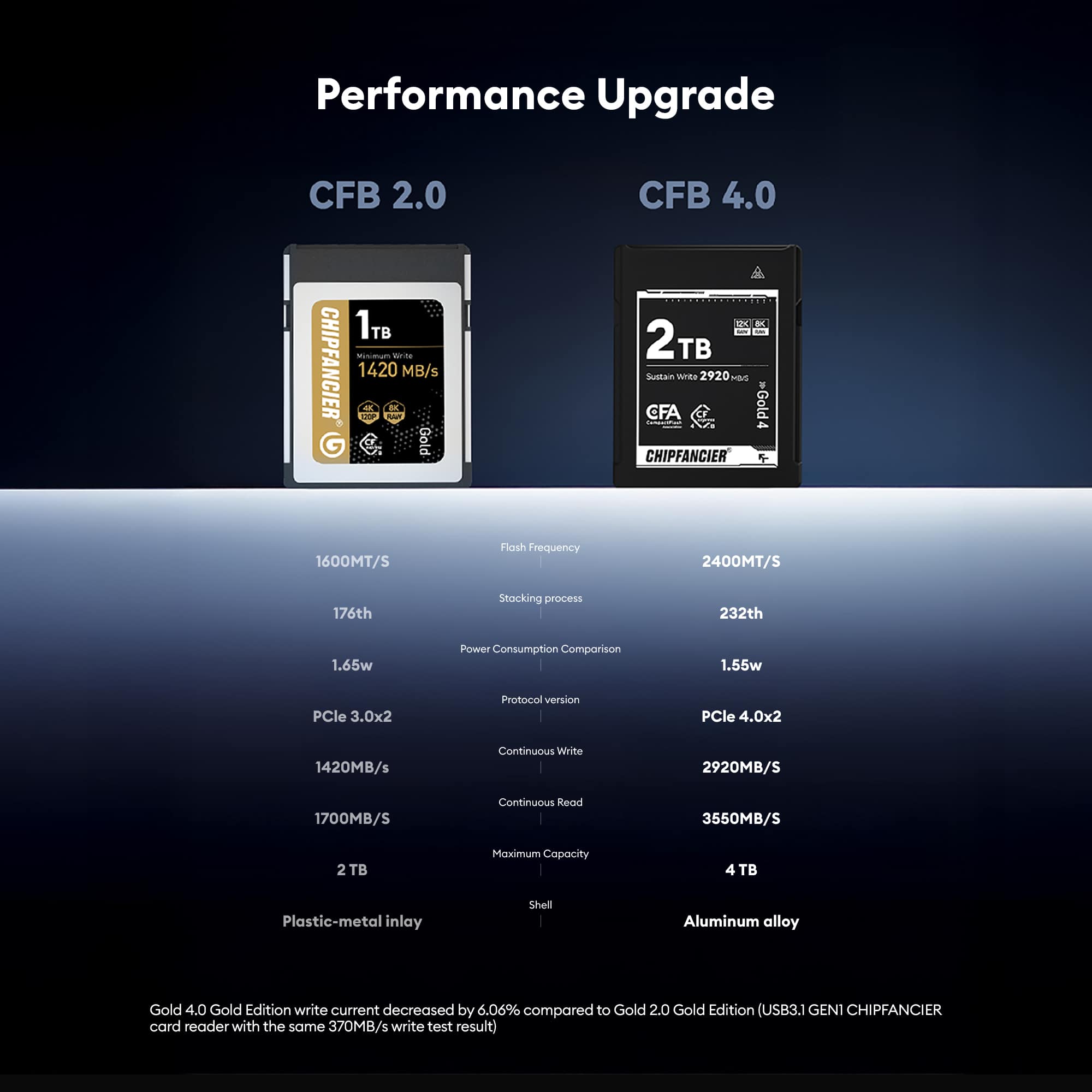

Product Specifcation
The most cost-effective CFexpress type-B card in the market.
Our storage card is equipped with an advanced 12nm chip, with a control clock speed of up to 982MT/s, ensuring ultra-fast data processing. It supports flash read/write speeds of 1600MT/s, easily handling high-speed continuous shooting and 4K video recording. At the same time, the 1.65W low power consumption design ensures high efficiency under peak performance, extending device usage time and reducing heat generation, so you don’t have to worry about storage issues during your creative process.

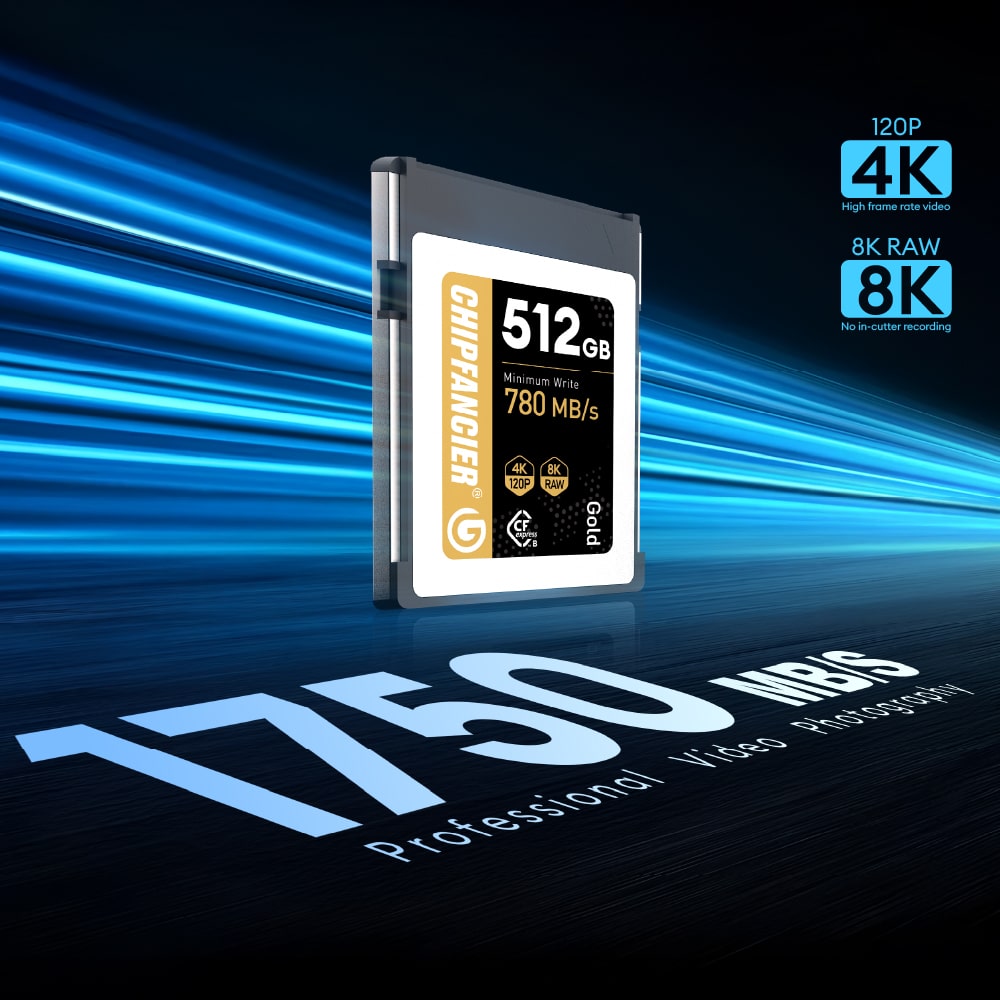

MAX READ SPEED:1700MB/s
512GB:Write 780MB/s

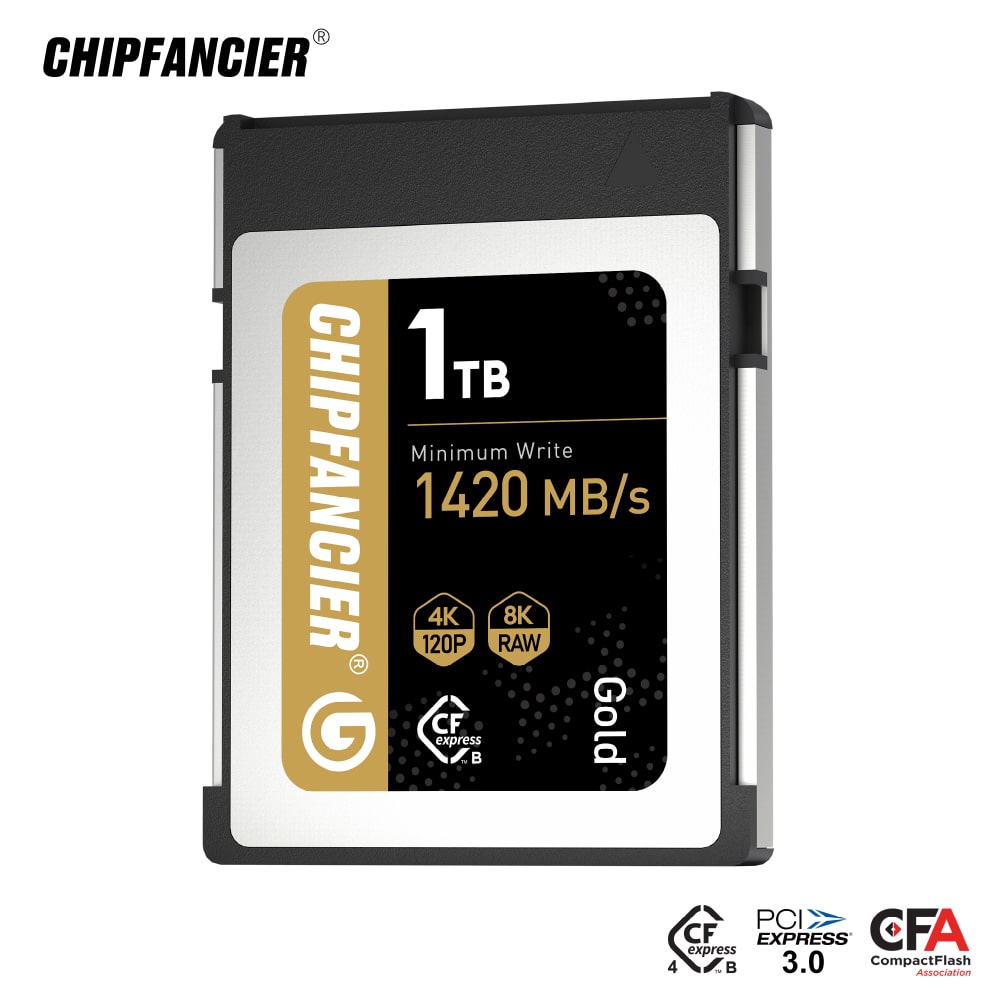

1 TB:Write 1420MB/s

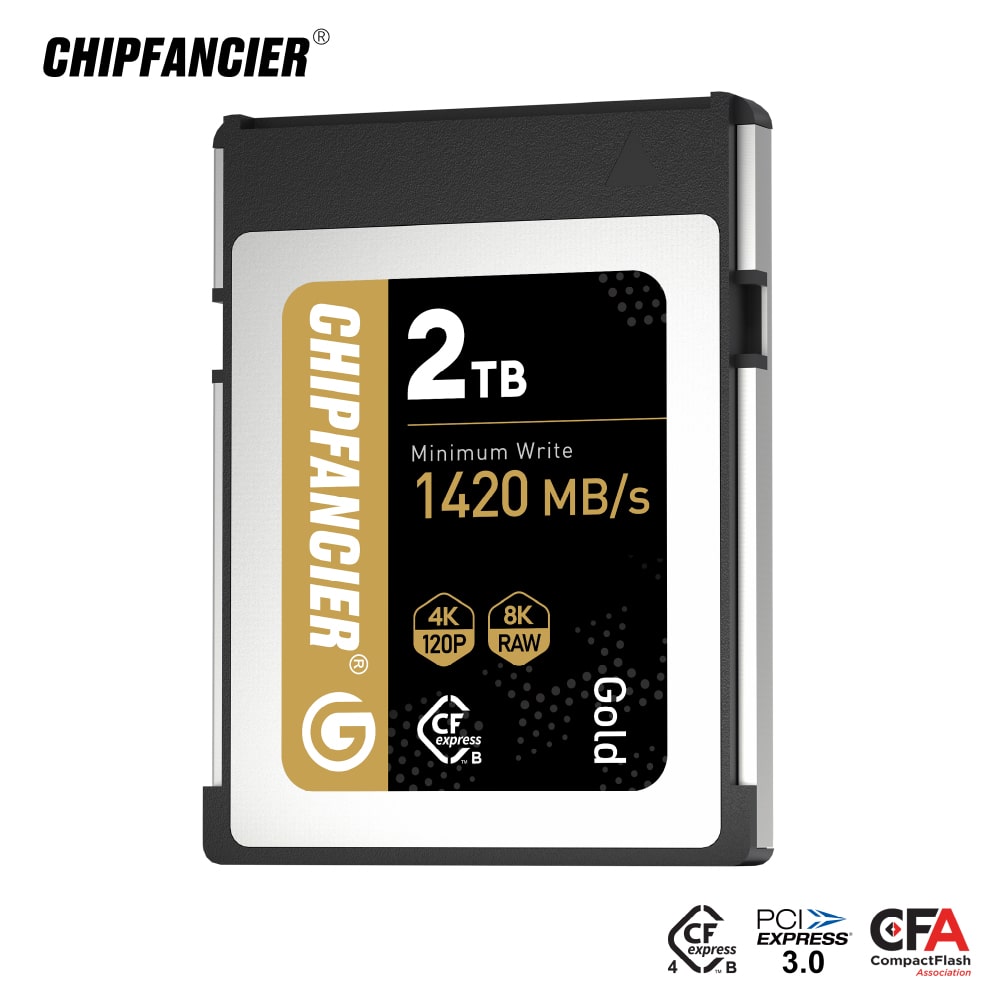

2 TB:Write 1420MB/s
TSMC 12nm
176L
982 MT/s
1600 MT/s
Lifetime warranty
PCI-E 3.0 x2 NVMe 1.4
PCl Express Base 4.0
Ecc Engine: LDPC
Dynamic Wear Leveling
Bad Block Management-
TRIM
SMART
Over-Provision
Firmware Update
Support APST
Support ASPM
Support L1.2
End to end data path protection
Themal throttling
LDPC + RAID ECC
SmartRefreshTM
Drive log
Support HMB (Host Memory Buffer)
Support of TCG Pyrite4
RPMB
Boot Partition
EN 55024, CISPR 24
EN 61000-4-2 and lEC 61000-4-2
+/- 4KV
EN 55032, CISPR 32(CE)
AS/NZS CISPR 32(CE)
ANSI C63.4(FCC)
VCCI-CISPR 32(VCCI)
CNS 13438(BSMI)
-15° degrees Celsius to 75° degrees Celsius
-40° degrees Celsius to 85° degrees Celsius

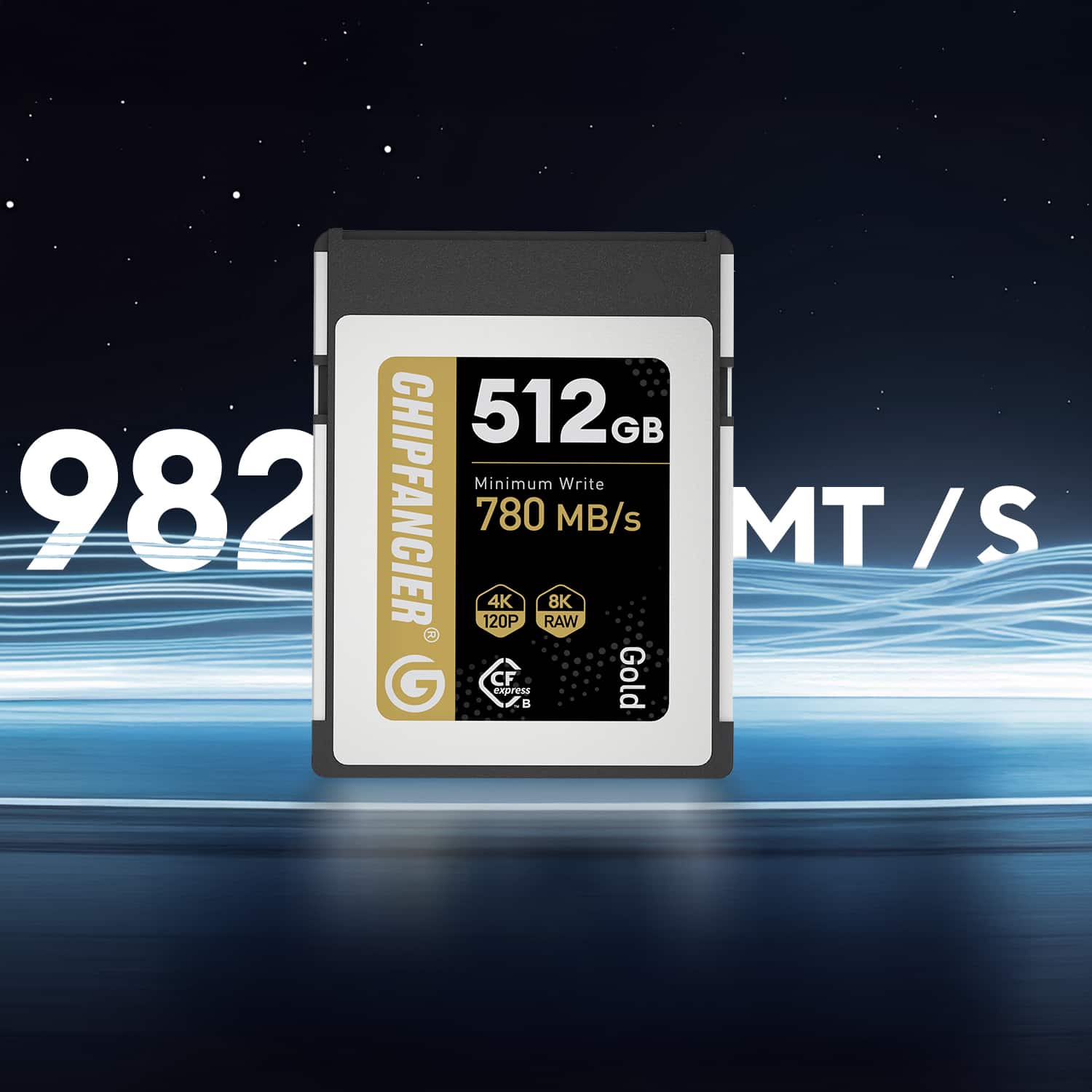

Ultra-fast data processing
With 982 million transfers per second, the controller chip ensures the storage card performs smoothly during high-speed shooting and continuous recording.

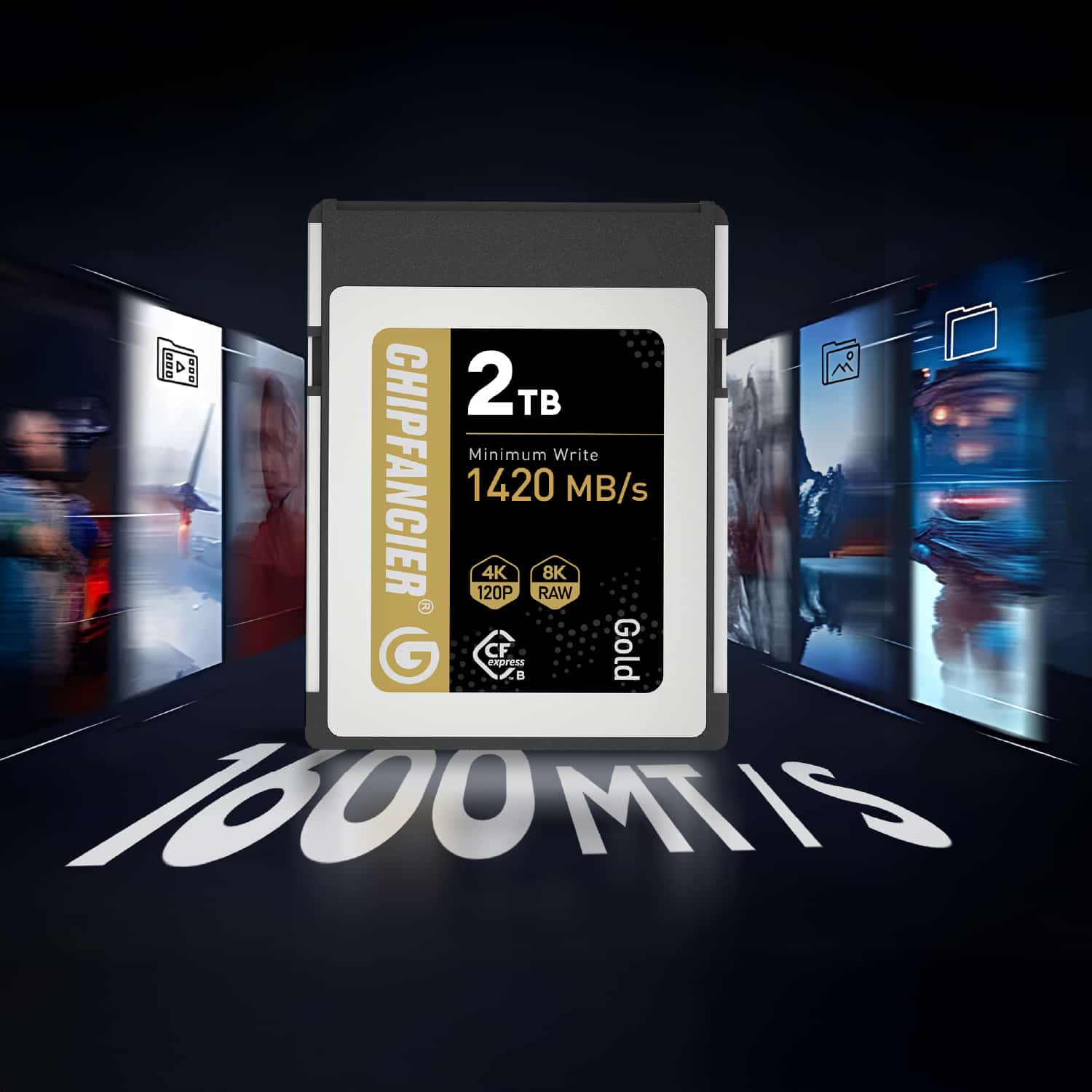

High-speed data transfer
With 1600 million transfers per second, the flash memory ensures ultra-smooth performance during rapid shooting and large file transfers.

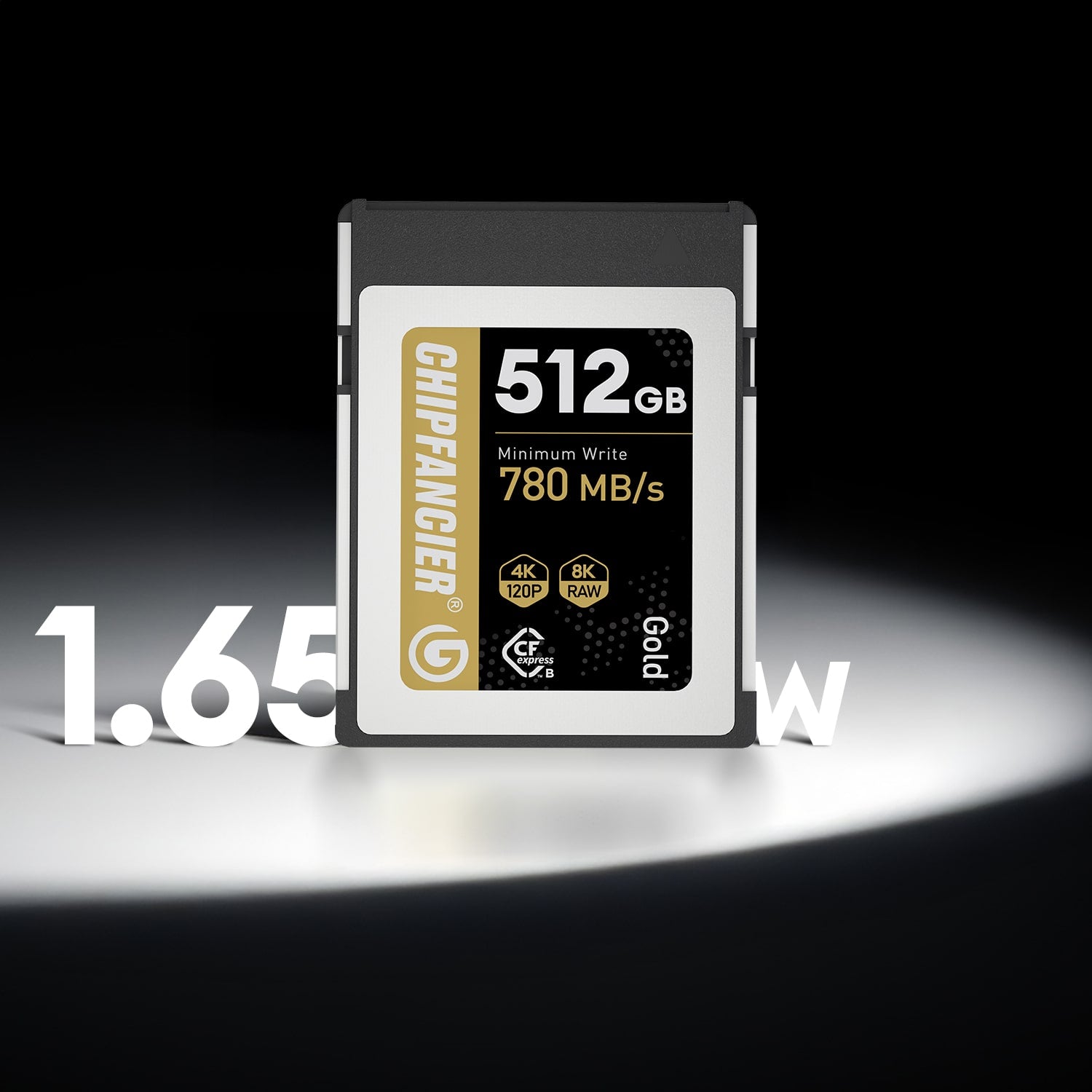

Low power design
With a power consumption of 1.65W, the storage card remains efficient under high-load operation, reducing heat and extending device usage time.

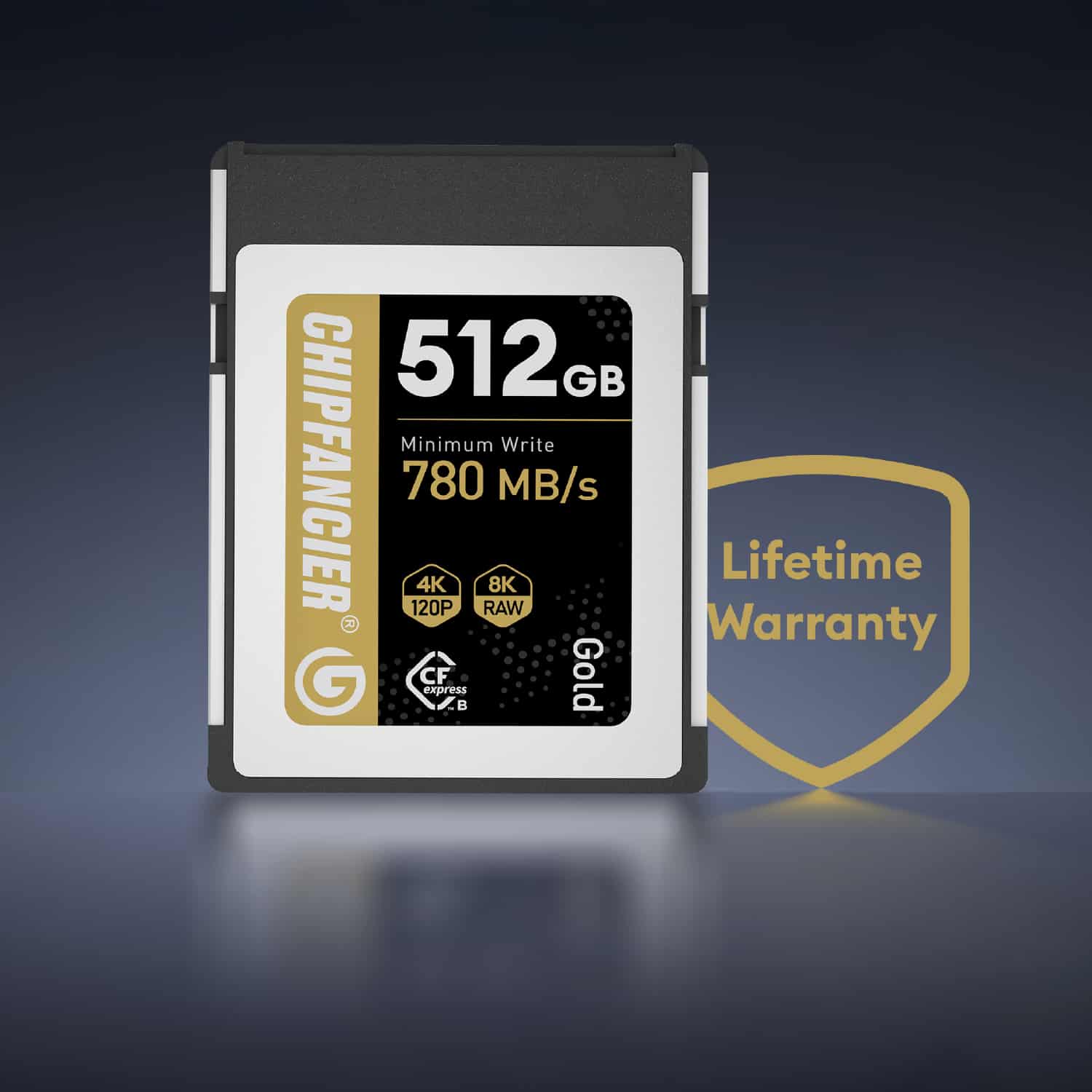

Lifetime Warranty
All our memory cards come with a lifetime warranty. In the event of non-human damage, we will replace the product even if it reaches the end of its lifespan."
Video and Photo Performance Pushed to the Limit

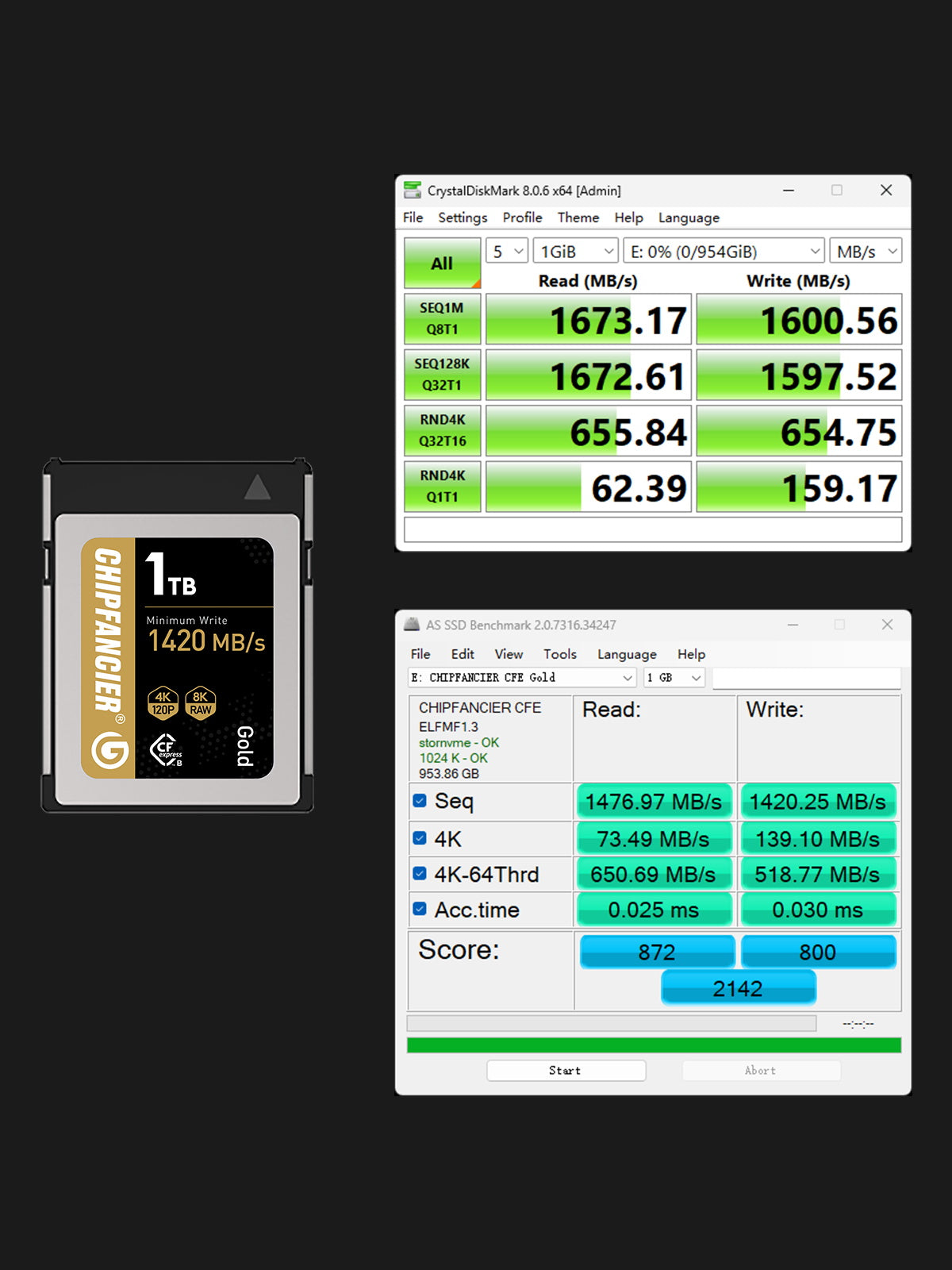

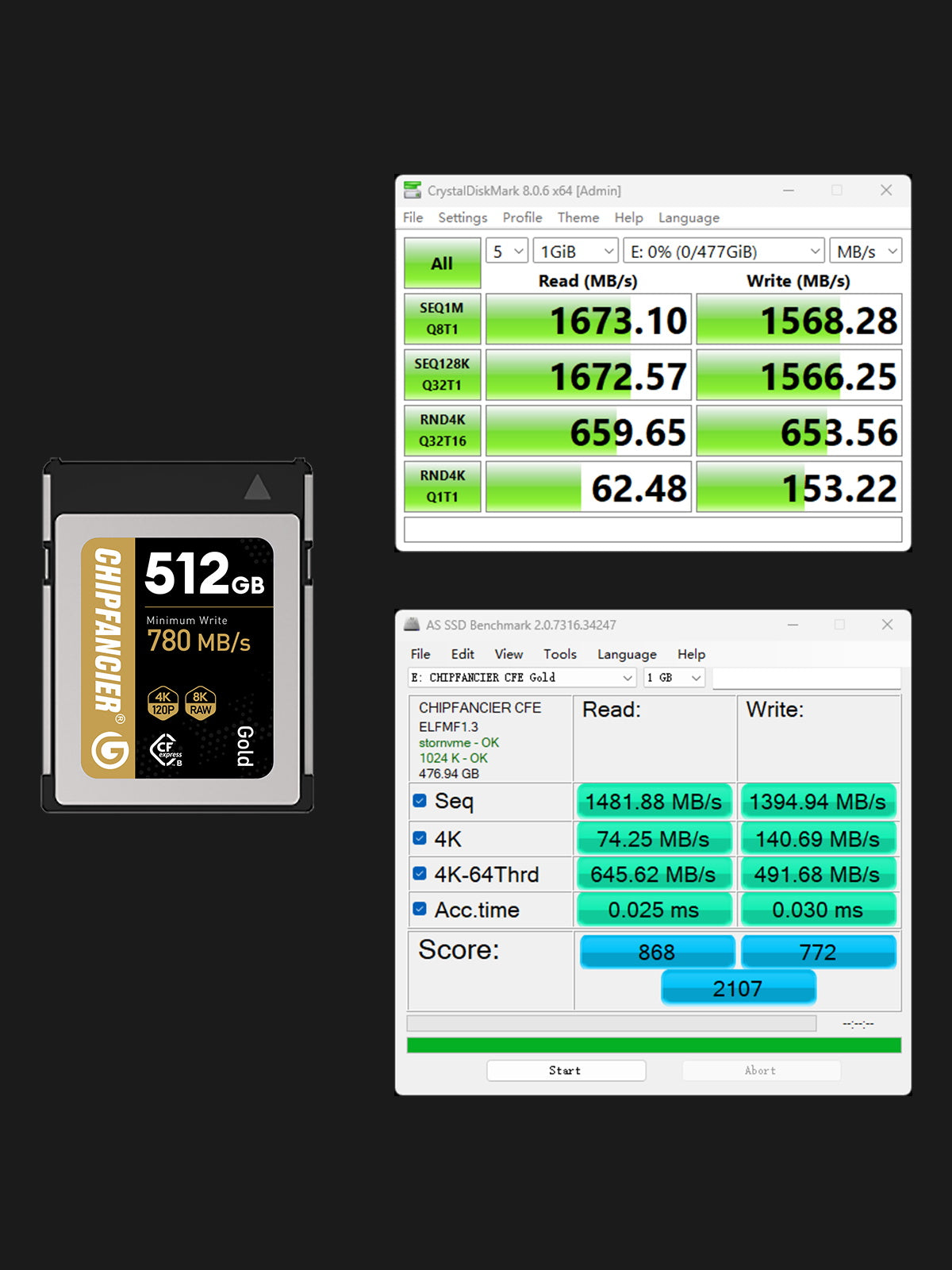

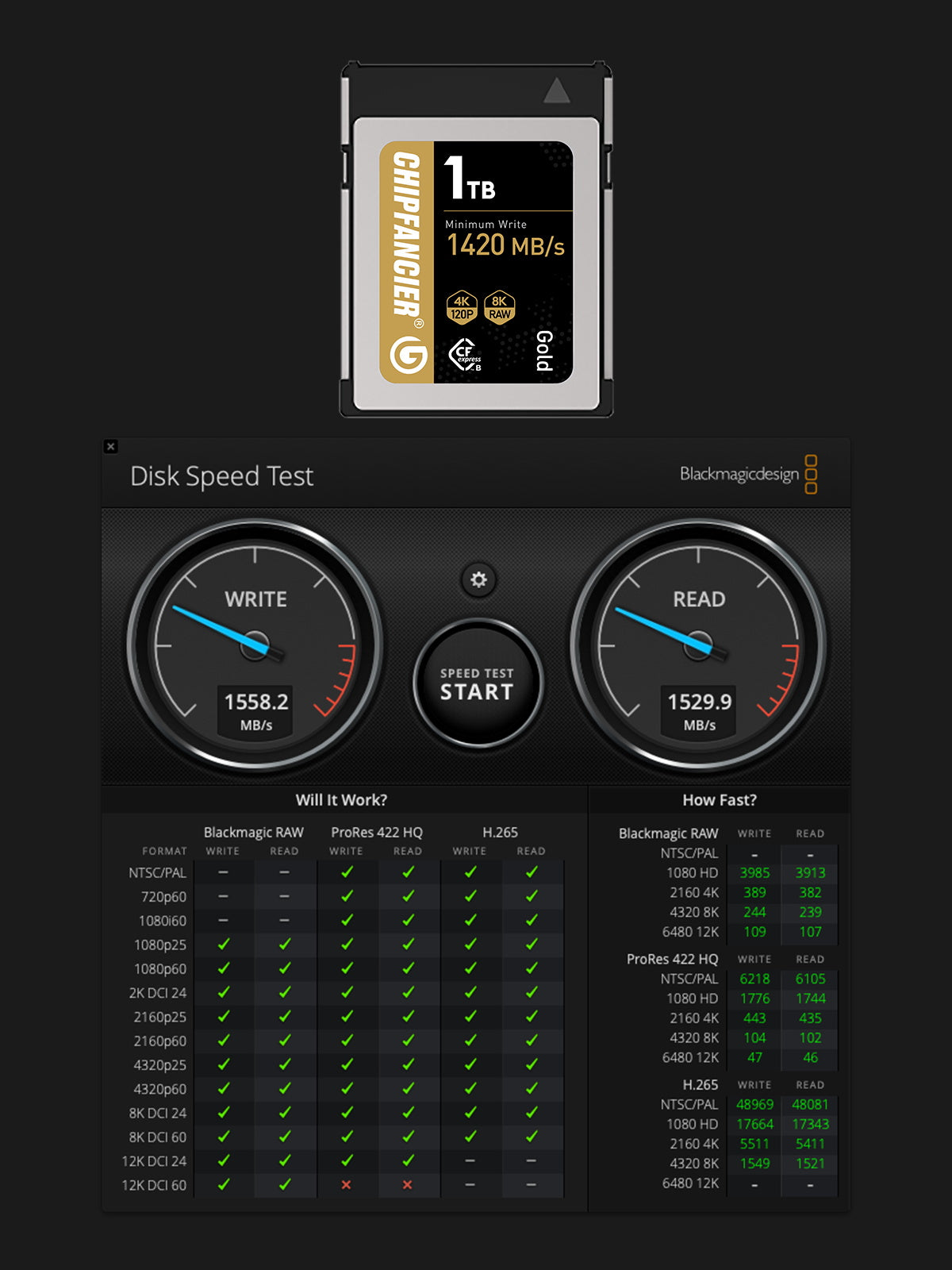

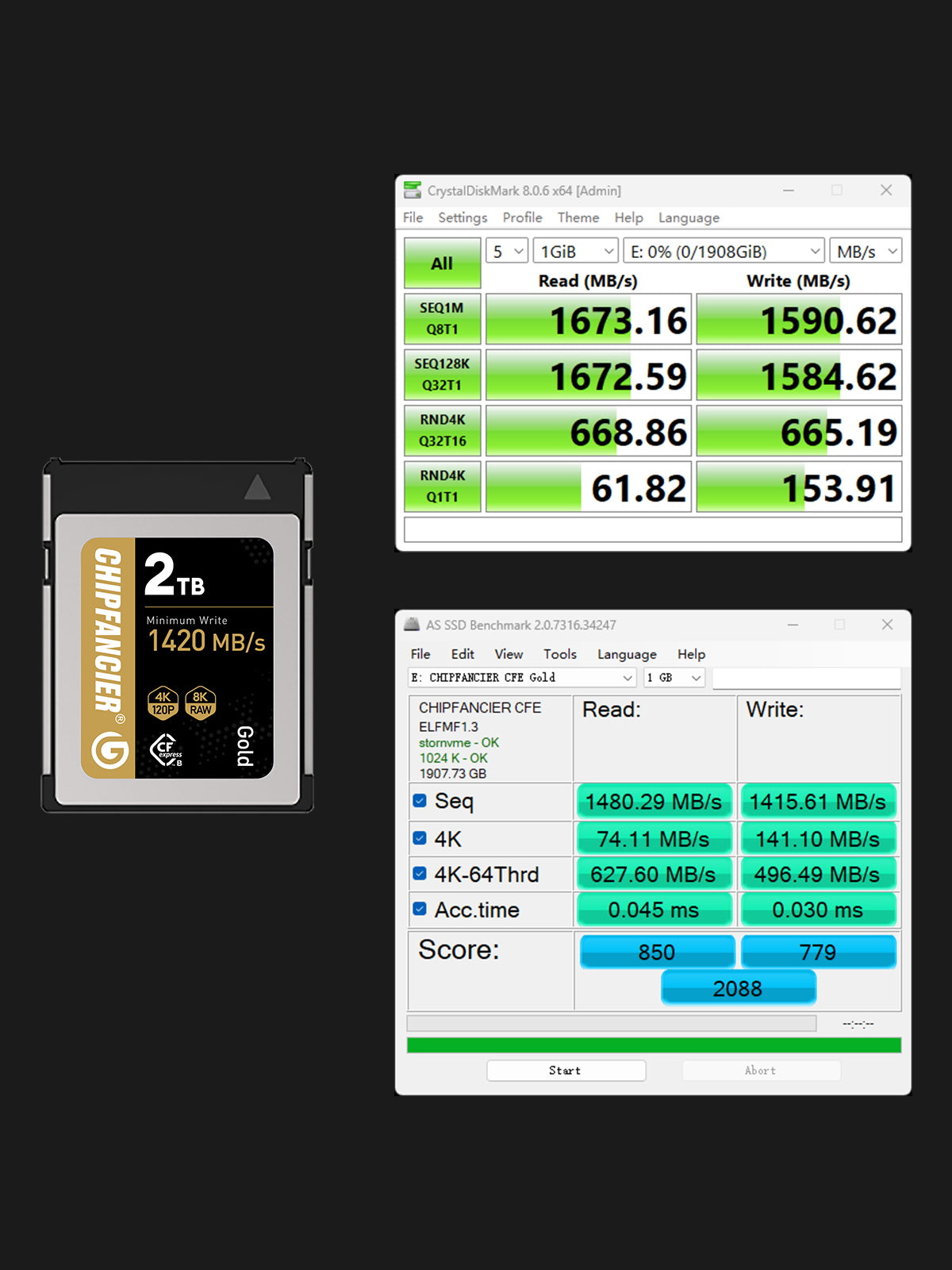

Measured Performance
Test interface: CFEXPRESS adapter card connected to the motherboard PCle slot
Signal: PCle4.0 lossless transmission
Motherboard: MSI PRO Z690-A
CPU: Intel(R) Core(TM) i9-12900K @P-Core 5.2G E-Core 4.0G (all CPU power-saving features turned off)
Memory: Oloy DDR4 8GBX2 4000Mhz Gearl C14-14-14-28.
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci

Measured Performance
Test interface: CFEXPRESS adapter card connected to the motherboard PCle slot
Signal: PCle4.0 lossless transmission
Motherboard: MSI PRO Z690-A
CPU: Intel(R) Core(TM) i9-12900K @P-Core 5.2G E-Core 4.0G (all CPU power-saving features turned off)
Memory: Oloy DDR4 8GBX2 4000Mhz Gearl C14-14-14-28.
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci

Measured Performance
Test interface: CFEXPRESS adapter card connected to the motherboard PCle slot
Signal: PCle4.0 lossless transmission
Motherboard: MSI PRO Z690-A
CPU: Intel(R) Core(TM) i9-12900K @P-Core 5.2G E-Core 4.0G (all CPU power-saving features turned off)
Memory: Oloy DDR4 8GBX2 4000Mhz Gearl C14-14-14-28.
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci
Measured Performance
Test interface: CFEXPRESS adapter card connected to the motherboard PCle slot
Signal: PCle4.0 lossless transmission
Motherboard: MSI PRO Z690-A
CPU: Intel(R) Core(TM) i9-12900K @P-Core 5.2G E-Core 4.0G (all CPU power-saving features turned off)
Memory: Oloy DDR4 8GBX2 4000Mhz Gearl C14-14-14-28.
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci
Measured Performance
Test interface: CFEXPRESS adapter card connected to the motherboard PCle slot
Signal: PCle4.0 lossless transmission
Motherboard: MSI PRO Z690-A
CPU: Intel(R) Core(TM) i9-12900K @P-Core 5.2G E-Core 4.0G (all CPU power-saving features turned off)
Memory: Oloy DDR4 8GBX2 4000Mhz Gearl C14-14-14-28.
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci
Measured Performance
Test interface: CFEXPRESS adapter card connected to the motherboard PCle slot
Signal: PCle4.0 lossless transmission
Motherboard: MSI PRO Z690-A
CPU: Intel(R) Core(TM) i9-12900K @P-Core 5.2G E-Core 4.0G (all CPU power-saving features turned off)
Memory: Oloy DDR4 8GBX2 4000Mhz Gearl C14-14-14-28.
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci

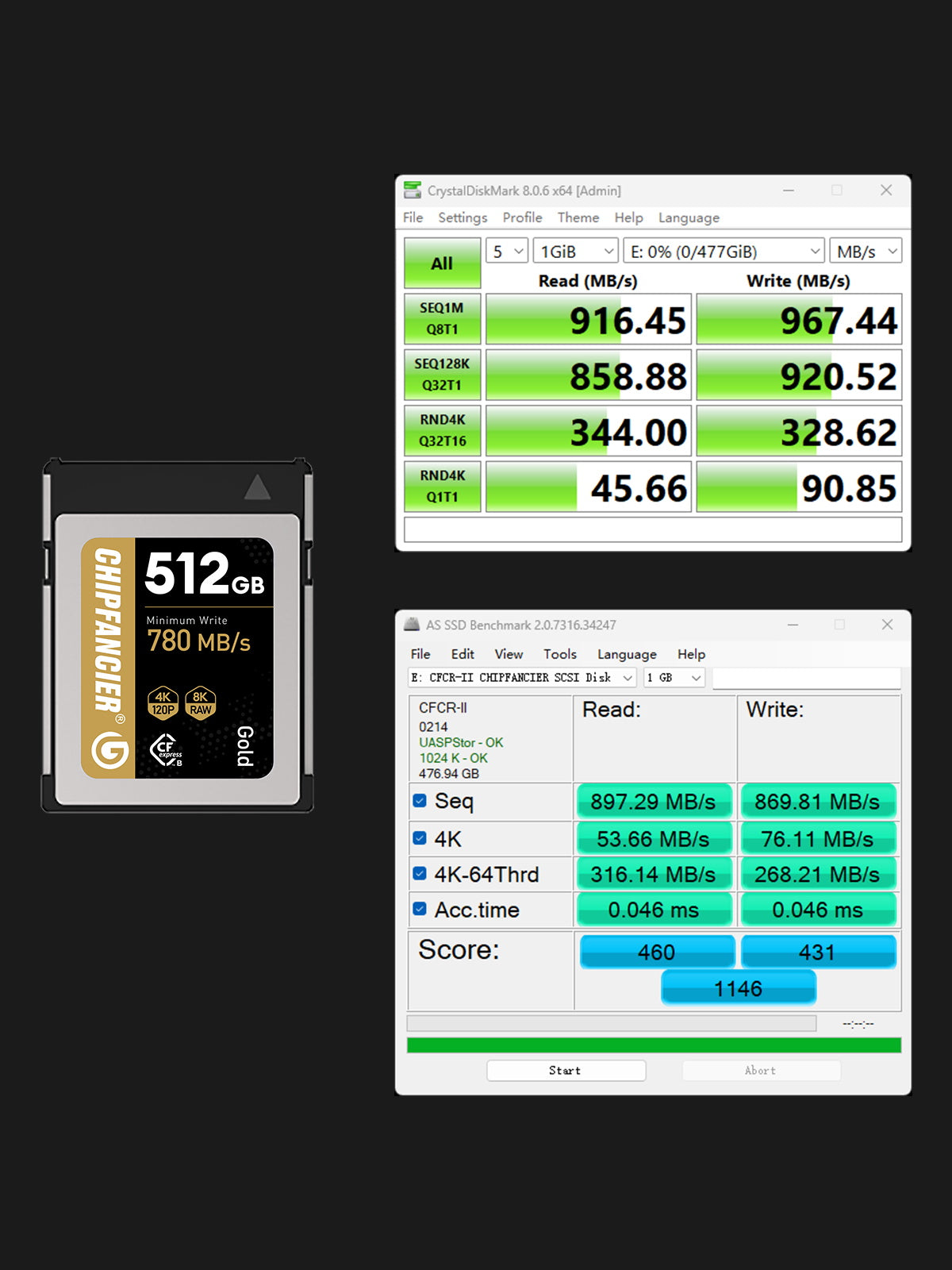

Measured Performance
Test interface: USB 3.1 10Gb/s Card Readefr with Thunderbolt 4 Interface③④
Signal: PCIe 3.0 to USB 10Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R) Core(TM) i9-14900K @P-Core 5.8G E-Core 4.5G (all CPU power-saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung 990PRO 2TB 2280 nvme PCle 4.0
System: Windows 11 Enterprise (x64) 24H2 (power on excellent performance)
Driver: System default storahci

Measured Performance
Test interface: USB 3.1 10Gb/s Card Readefr with Thunderbolt 4 Interface③④
Signal: PCIe 3.0 to USB 10Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R) Core(TM) i9-14900K @P-Core 5.8G E-Core 4.5G (all CPU power-saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung 990PRO 2TB 2280 nvme PCle 4.0
System: Windows 11 Enterprise (x64) 24H2 (power on excellent performance)
Driver: System default storahci

Measured Performance
Test interface: USB 3.1 10Gb/s Card Readefr with Thunderbolt 4 Interface③④
Signal: PCIe 3.0 to USB 10Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R) Core(TM) i9-14900K @P-Core 5.8G E-Core 4.5G (all CPU power-saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung 990PRO 2TB 2280 nvme PCle 4.0
System: Windows 11 Enterprise (x64) 24H2 (power on excellent performance)
Driver: System default storahci
Measured Performance
Test interface: USB 3.1 10Gb/s Card Readefr with Thunderbolt 4 Interface③④
Signal: PCIe 3.0 to USB 10Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R) Core(TM) i9-14900K @P-Core 5.8G E-Core 4.5G (all CPU power-saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung 990PRO 2TB 2280 nvme PCle 4.0
System: Windows 11 Enterprise (x64) 24H2 (power on excellent performance)
Driver: System default storahci
Measured Performance
Test interface: USB 3.1 10Gb/s Card Readefr with Thunderbolt 4 Interface③④
Signal: PCIe 3.0 to USB 10Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R) Core(TM) i9-14900K @P-Core 5.8G E-Core 4.5G (all CPU power-saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung 990PRO 2TB 2280 nvme PCle 4.0
System: Windows 11 Enterprise (x64) 24H2 (power on excellent performance)
Driver: System default storahci
Measured Performance
Test interface: USB 3.1 10Gb/s Card Readefr with Thunderbolt 4 Interface③④
Signal: PCIe 3.0 to USB 10Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R) Core(TM) i9-14900K @P-Core 5.8G E-Core 4.5G (all CPU power-saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung 990PRO 2TB 2280 nvme PCle 4.0
System: Windows 11 Enterprise (x64) 24H2 (power on excellent performance)
Driver: System default storahci




Measured Performance

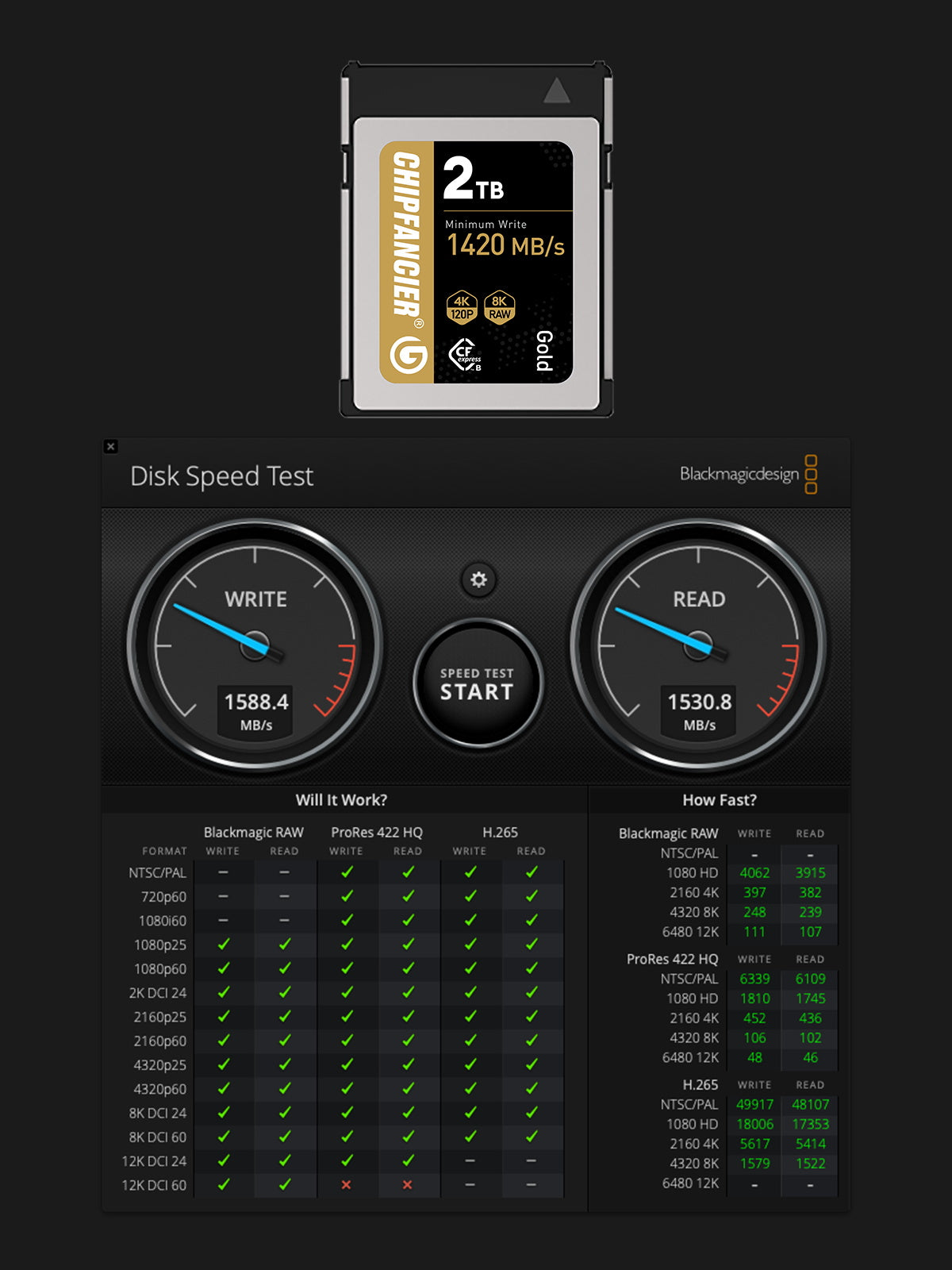

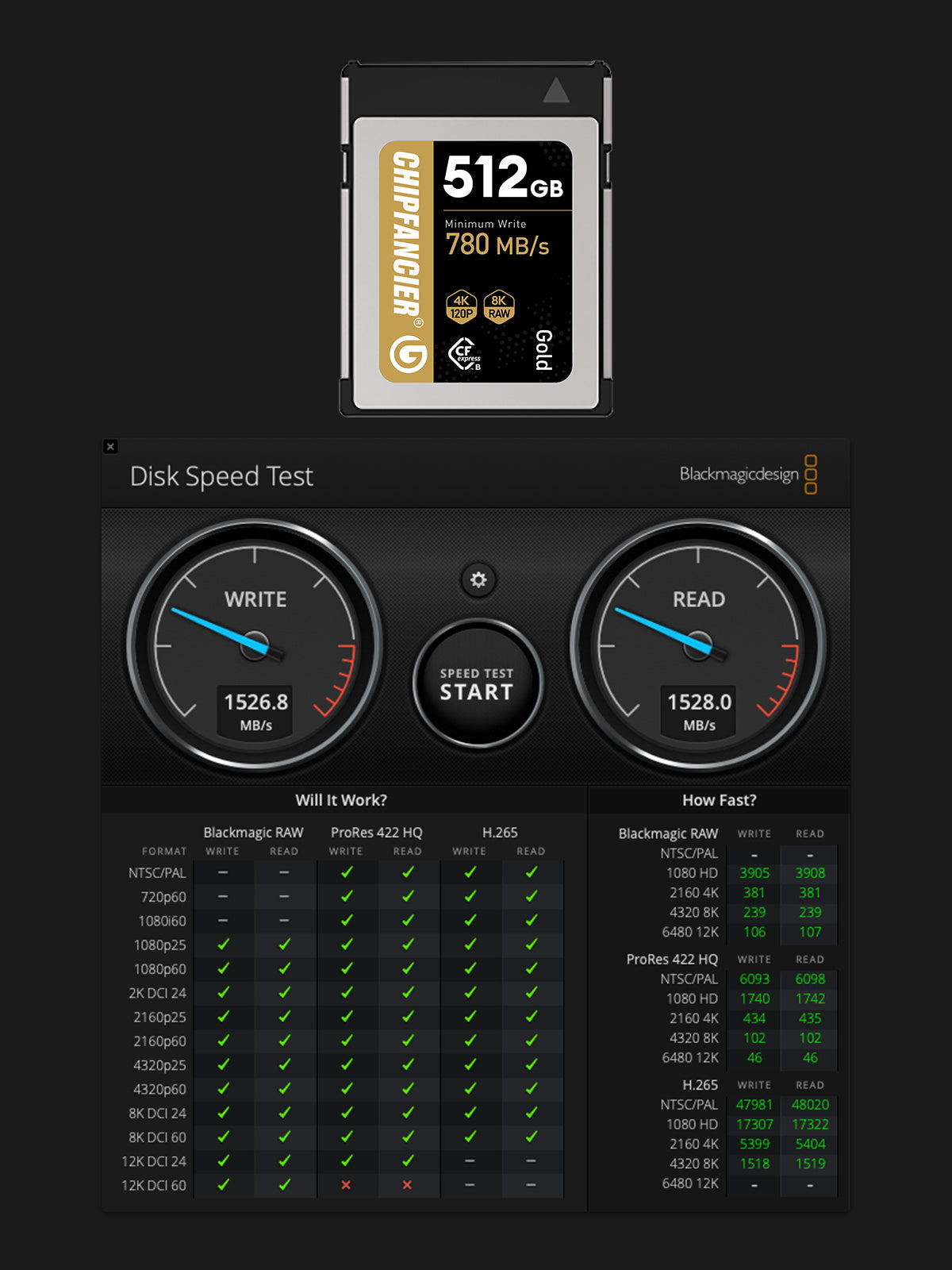

Test Interface:USB4 40Gb/s card reader plug Thunderbolt4 40Gb/s interface
Signal: PCle4.0 to USB4 40Gb/s
Equipment: Mac mini (2024)
CPU: APPLE M4
Memory: APPLE 16G
Hard disk: APPLE 256G
System: macOS Sequoia 15.1.1

Measured Performance
Test Interface:USB4 40Gb/s card reader plug Thunderbolt4 40Gb/s interface
Signal: PCle4.0 to USB4 40Gb/s
Equipment: Mac mini (2024)
CPU: APPLE M4
Memory: APPLE 16G
Hard disk: APPLE 256G
System: macOS Sequoia 15.1.1

Measured Performance
Test Interface:USB4 40Gb/s card reader plug Thunderbolt4 40Gb/s interface
Signal: PCle4.0 to USB4 40Gb/s
Equipment: Mac mini (2024)
CPU: APPLE M4
Memory: APPLE 16G
Hard disk: APPLE 256G
System: macOS Sequoia 15.1.1
Measured Performance
Test Interface:USB4 40Gb/s card reader plug Thunderbolt4 40Gb/s interface
Signal: PCle4.0 to USB4 40Gb/s
Equipment: Mac mini (2024)
CPU: APPLE M4
Memory: APPLE 16G
Hard disk: APPLE 256G
System: macOS Sequoia 15.1.1
Measured Performance
Test Interface:USB4 40Gb/s card reader plug Thunderbolt4 40Gb/s interface
Signal: PCle4.0 to USB4 40Gb/s
Equipment: Mac mini (2024)
CPU: APPLE M4
Memory: APPLE 16G
Hard disk: APPLE 256G
System: macOS Sequoia 15.1.1
Measured Performance
Test Interface:USB4 40Gb/s card reader plug Thunderbolt4 40Gb/s interface
Signal: PCle4.0 to USB4 40Gb/s
Equipment: Mac mini (2024)
CPU: APPLE M4
Memory: APPLE 16G
Hard disk: APPLE 256G
System: macOS Sequoia 15.1.1



CFexpress Type B 2.0 Camera Memory Card
Product specification
The CHIPFANCIER CFexpress Type B 2.0 Camera Memory Card offers professional photographers and image creators exceptional performance and reliability, perfectly adapted to the needs of 8K video recording, high-resolution photo storage, and high-speed data transfer. Below are the detailed technical specifications of this memory card to help you better understand its powerful features and benefits:
- 512GB
- 1TB
- 2TB
- Operation: -10°C~70°C
- Storage:-20°℃~85°C
- EN 55024, CISPR 24
- EN 61000-4-2 and EC 61000-4-2+/- 4KV
- PCI-E 3.0 x2 NVMe 1.4
- PCl Express Base 4.0
- Ecc Engine: LDPC
- Support APST
- Support ASPM
- Support L1.2
- EN 55032, CISPR 32(CE)
- AS/NZS CISPR 32(CE)
- ANSI C63.4 (FCC)
- VCCI-CISPR 32(VCCI)
- CNS 13438(BSMI)
- Dynamic Wear Leveling
- Bad Block Management
- TRIM
- SMART
- Over-Provision
- Firware Update
- End to end data path protection
- Themmal throttling
- LDPC + RAID ECC
- SmartRefreshTM
- Drive log
- Support HMB (Host Memory Buffer)
- Support of TCG Pyrite4
- RPMB
- Boot Partition
38.5mm x 29.8mm x 3.8mm
Frequently Asked Questions
Have a question ? We are here to help.
Q: How to choose the capacity? Should I buy 256G or 512G or 1T?
A:Take R5 8KRAW as an example, 512G can only store about 24 minutes, 1T can only store about 48 minutes, so if you have a high bit rate video shooting needs, we usually recommend to consider 512G to start with, but if you just simply take pictures, then 128G, 256G can also meet the demand.
Q: Is your memory card compatible with my camera? How is the compatibility?
A: Our memory cards are compatible with the vast majority of currently available cameras and do not have compatibility issues. Additionally, we continuously update and improve the firmware of the cards to better support newly released cameras. For a detailed list of supported models, please refer to the information at the beginning or contact customer service.
Q: What is the actual capacity of a memory card on a camera? What is the actual capacity on the computer?
A:Take 512G as an example, because the difference of algorithm between binary (1G=1024M) and decimal (1G=1000M) will lead to the capacity display is different, the camera and Windows system is the binary algorithm display, so it will display 476GB, MAC OS is the decimal display, so it will display 512GB.
Q: How does your product compare to other brands like Sony or SanDisk?
A: Sorry, we do not comment on competitors' products, as they are respected counterparts. We recommend purchasing our product for your own comparison. We offer a 7-day no-reason return policy, so if you are not satisfied with our product, you can return it.
Q:Can purchasing a memory card guarantee data recovery?
A: Sorry, we do not make such absolute guarantees. Although the overall failure rate of our memory cards is very low, we cannot guarantee that they will never encounter issues. Without being able to predict the exact cause of any potential problems, we cannot offer a 100% data recovery guarantee. However, if you do encounter such difficult issues, we will make every effort to attempt data recovery, and this service is provided free of charge.
Q: Is the card reader universal? Can it use an XQD reader? Does it overheat?
A: Other brands' CFexpress card readers should theoretically be compatible with our memory cards, but actual performance may vary, and we cannot guarantee 100% compatibility. XQD card readers, in theory, cannot support CFexpress memory cards. Our memory cards have high performance, so some heat generation is inevitable during operation. However, we have optimized the algorithm protocol and power DCDC to ensure that, compared to other products, our cards generate relatively low heat.
Q: What are the overall advantages of your CFexpress?
A: We are a senior council member of the global CFA organization (https://compactfash.org), which is responsible for setting the CFexpress standards. Each of our memory card products undergoes testing and certification by the CFA association, so you can be assured of their quality and compatibility.
Q: Does it support Z8/Z9’s 8.3K 60P and RED W’s 8K 120P? Can it continuously record until full?
A: The Gold version offers excellent performance, meeting the high specifications required for demanding recording needs, including 8.3K 60P NRAW quality for the Z9, as well as 8K recording for the R5, R5C, and RED VV. Additionally, the Gold version has low power consumption and maintains stable full-card speeds, supporting recording until the card is full.
Q: What is the actual speed of the product on the computer? Is it as fast as you claimed?
A: The actual speed is affected by the computer configuration and the actual copied files. It's just like the principle that a sports car can run at a certain speed on a certain road. Computer speed is like a "barrel effect", and any shortcoming will become a bottleneck. For example, if you plug it into USB2.0, then no matter how good the computer is, it will only be around 20 to 30. For example, if you copy from HDD to CFexpress, even if you plug it into USB3.0, the speed can only reach the reading limit of the HDD.
Q: How is the product warranty handled?
A: CFexpress memory cards come with a lifetime warranty and have no write limit. Card readers come with a 1-year warranty. For qualit y issues within 30 days of the order, we will cover the round-trip shipping costs. After 30 days, shipping costs will be shared. Please note that issues caused by user actions such as disassembly, repair, bending, deformation, or water damage will void the warranty.
