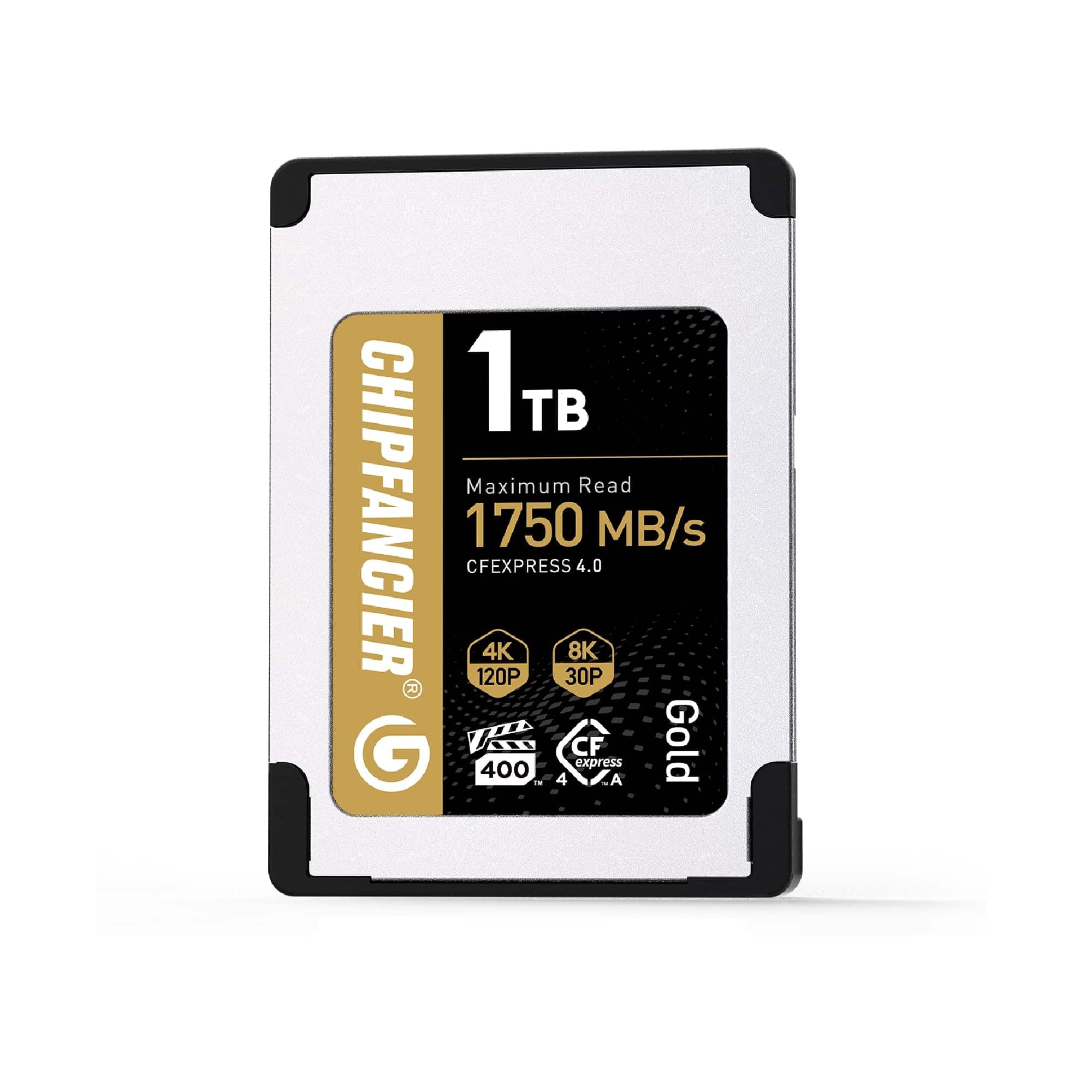

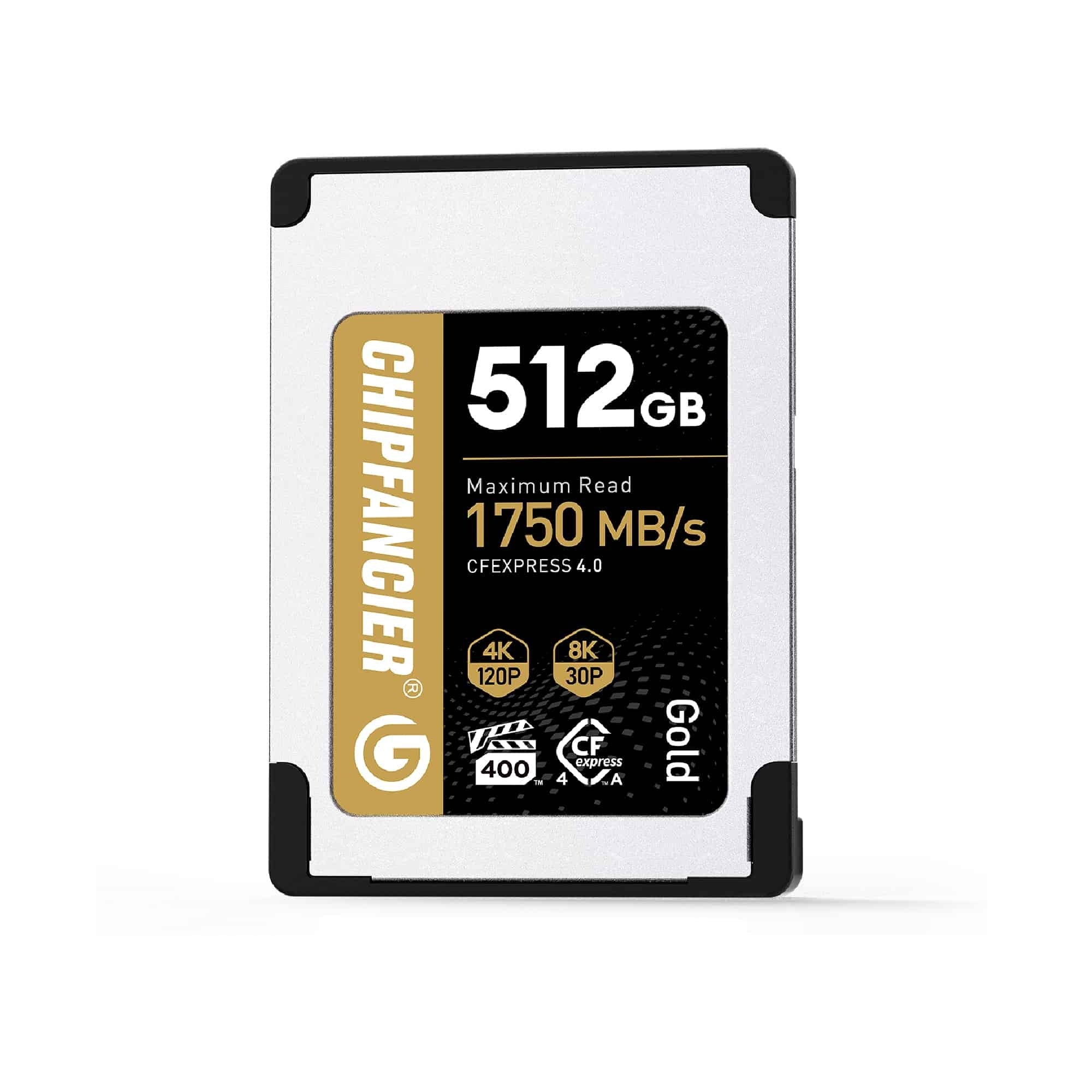

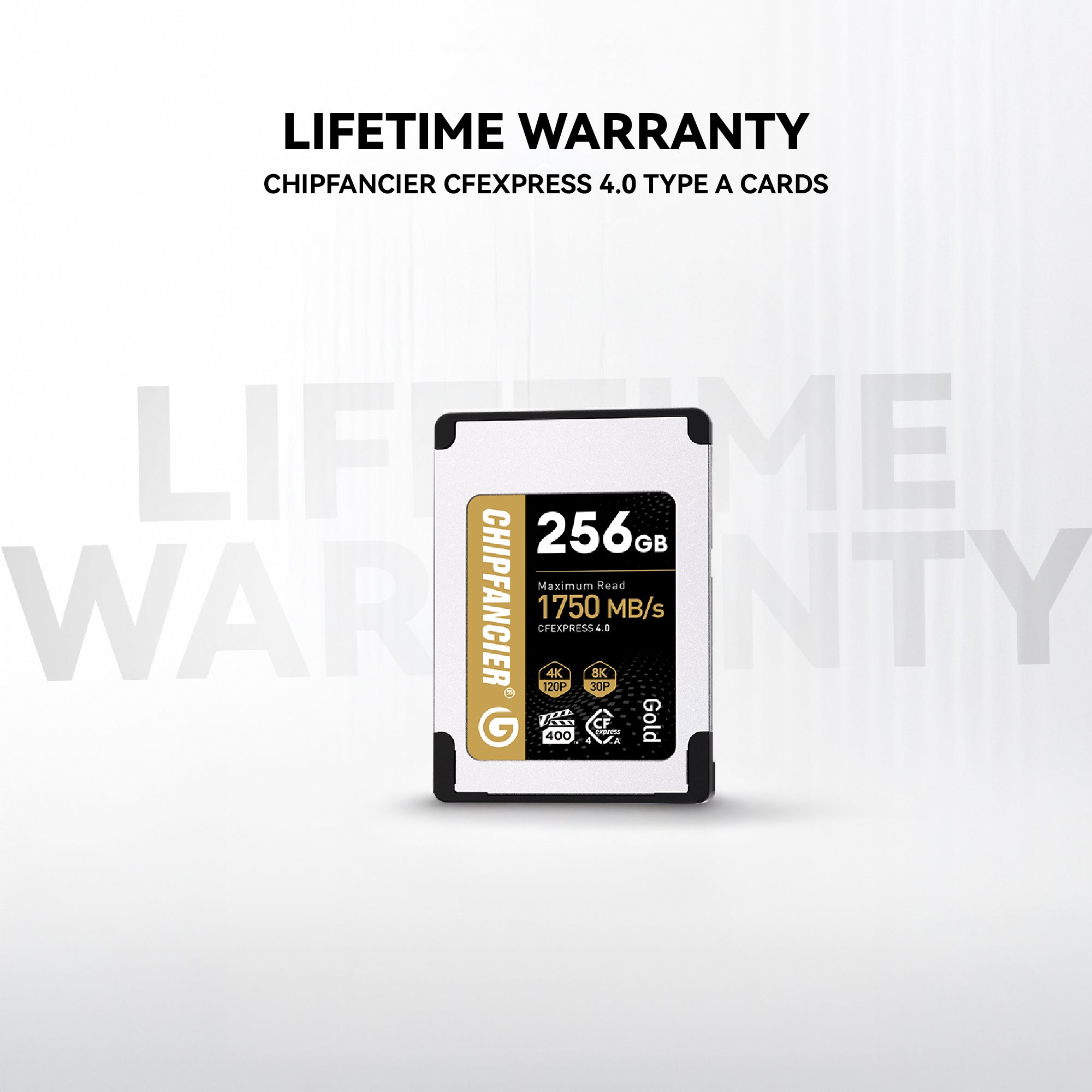

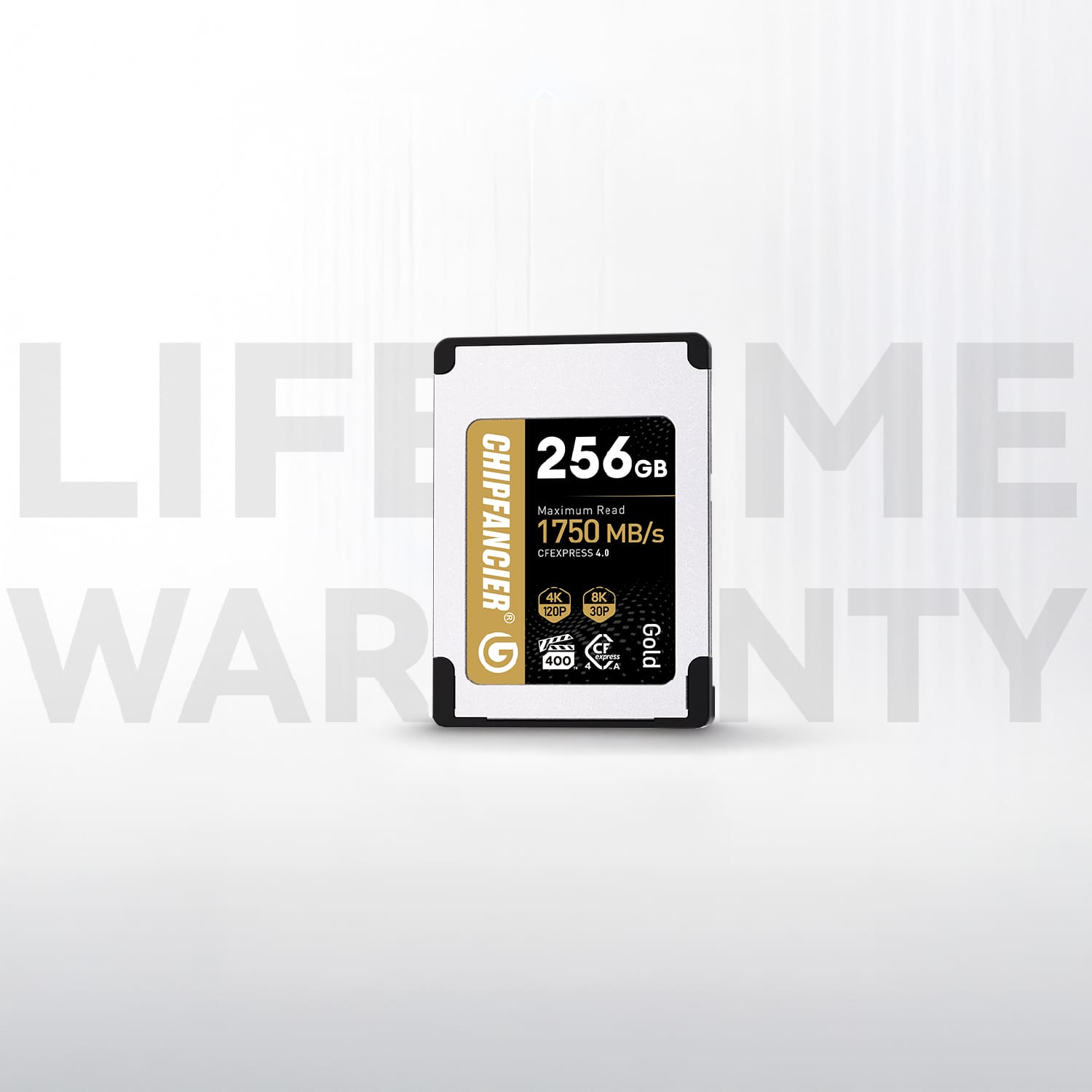

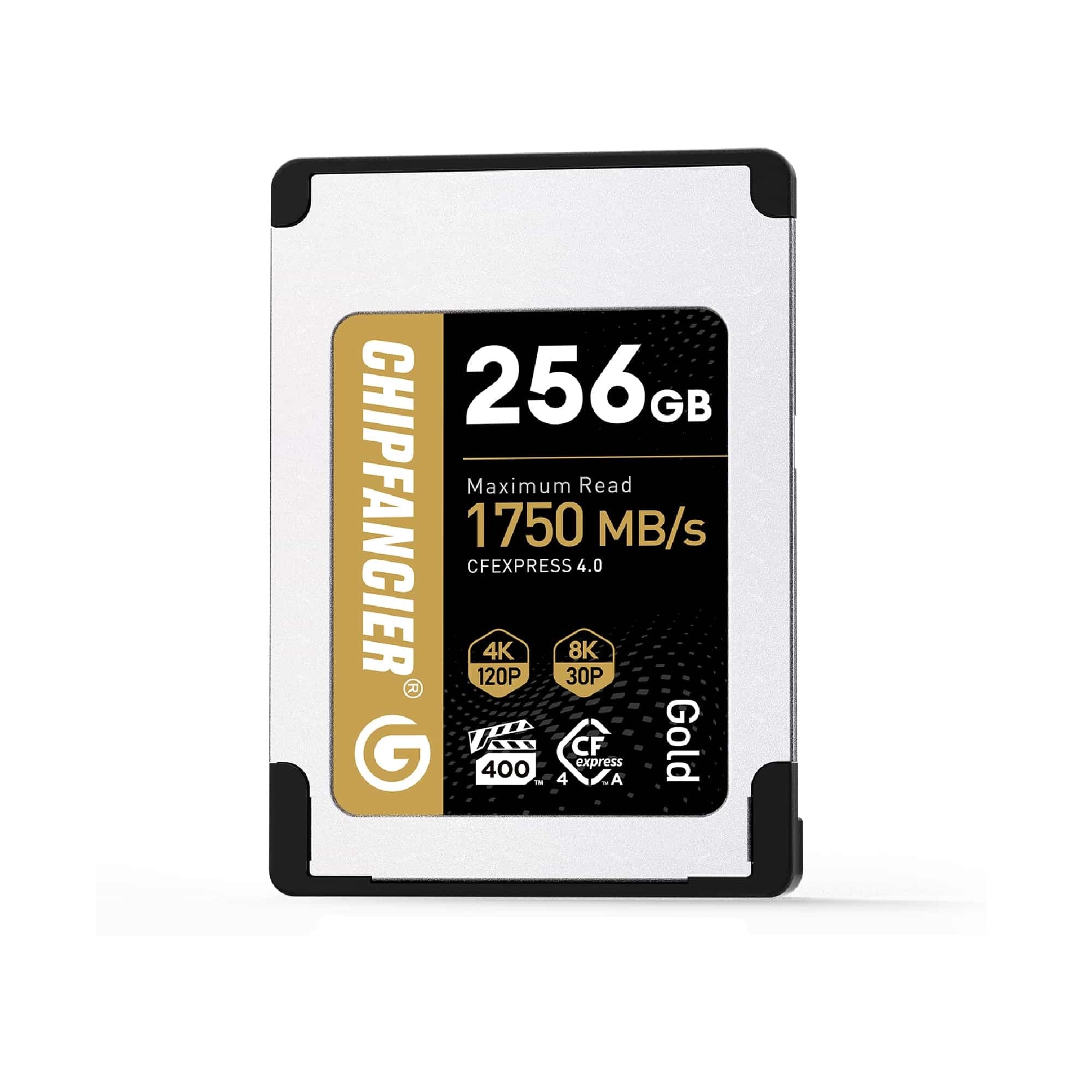

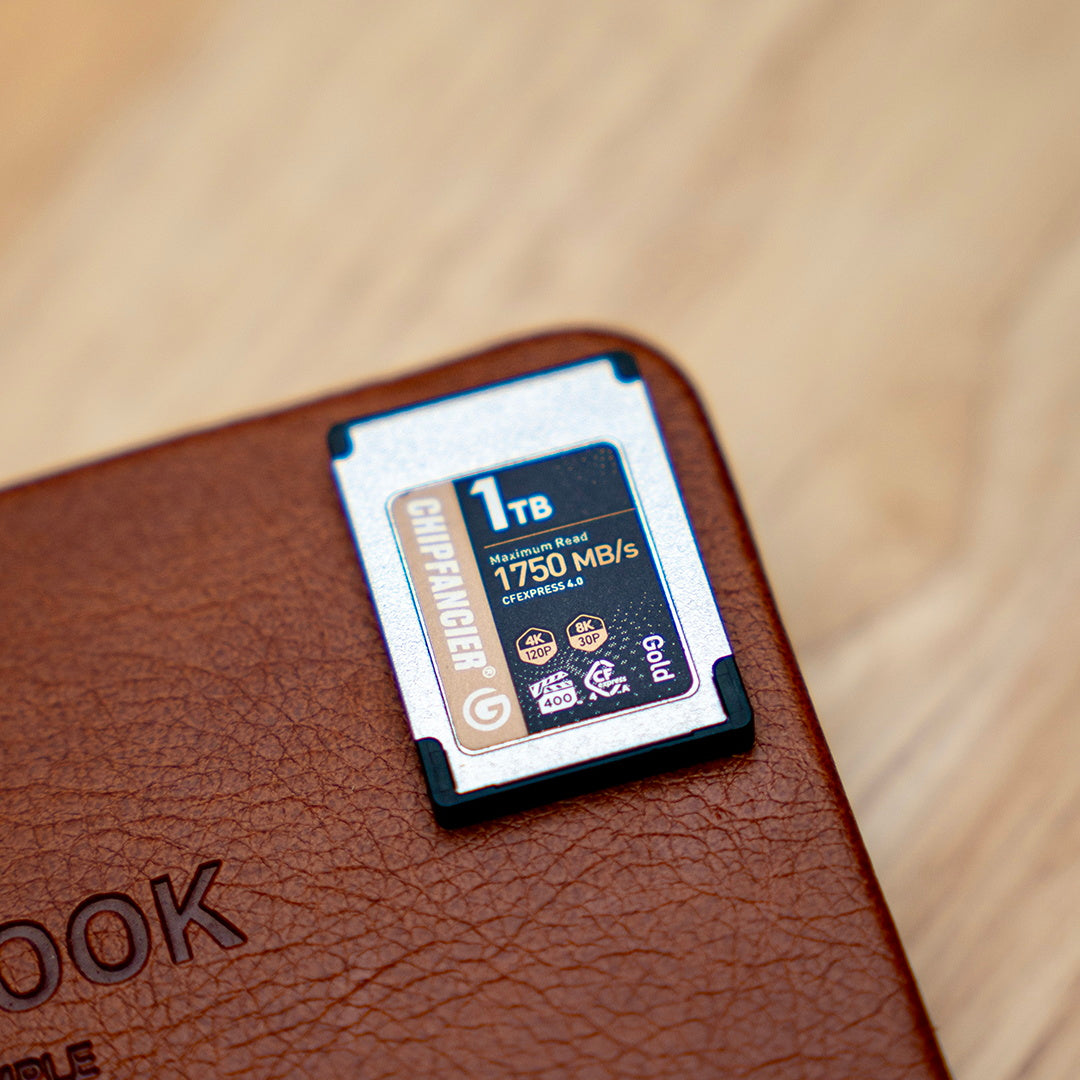

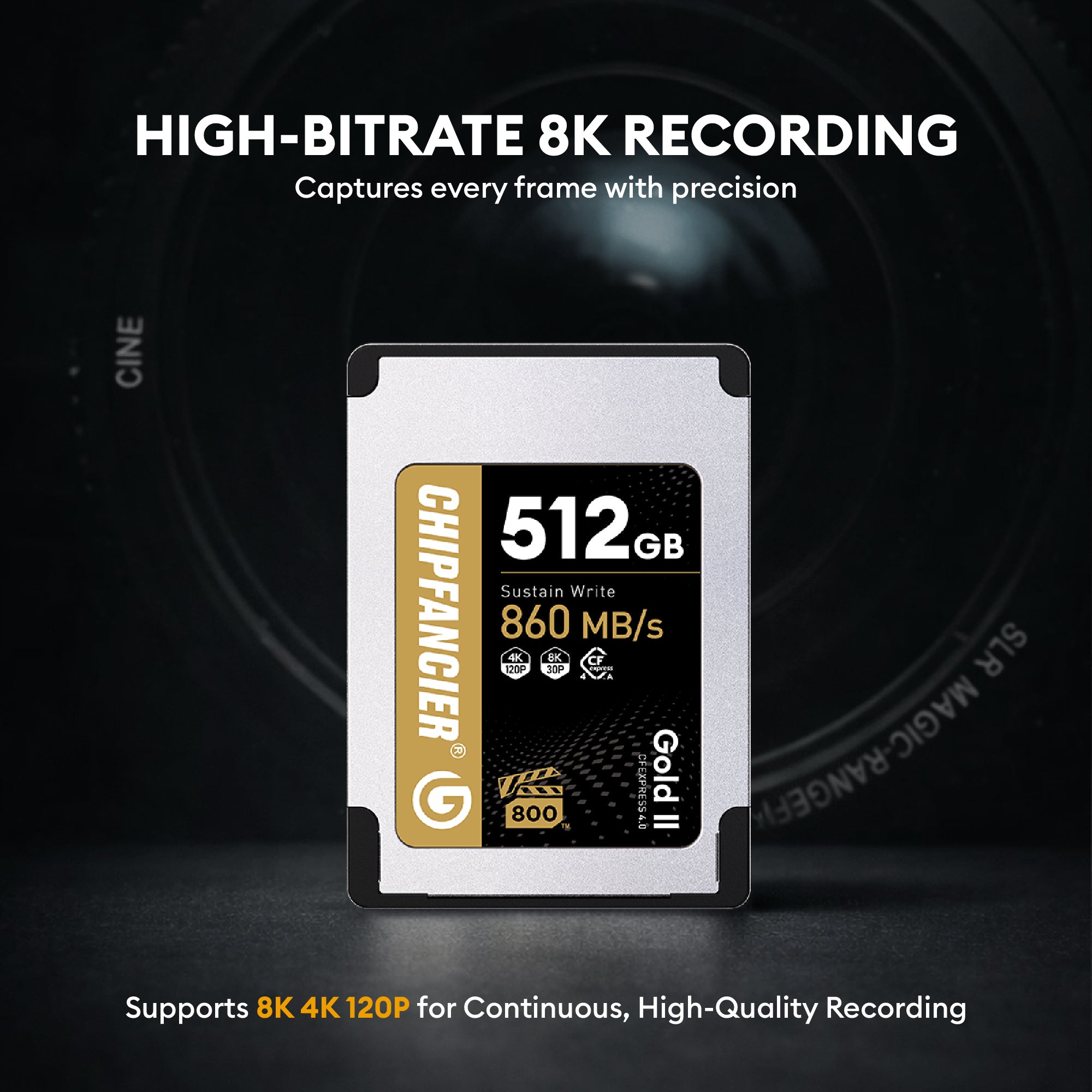

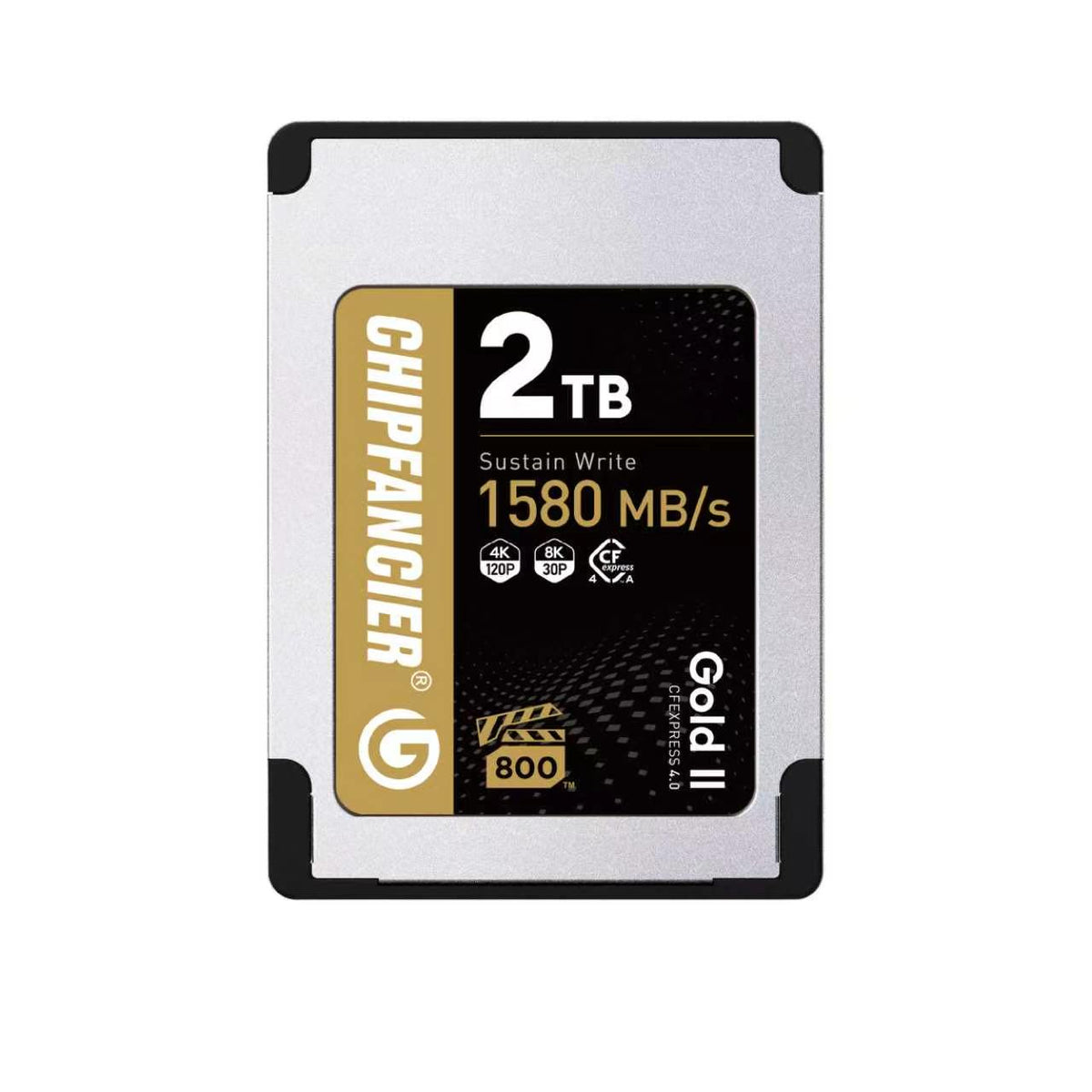

CHIPFANCIER CFexpress Tpye A 4.0 Card VPG400
Lifetime Warranty
Delivery time 4-10 business days
Shoot without interruption and store without lag!
About the CFexpress 4.0 type-A
The most cost-effective CFexpress 4.0 type-A card in the market.
The ideal companion for your daily data storage or usage, the CFexpress 4.0 type-A is our most advanced high-speed storage card.
CFexpress Type-A

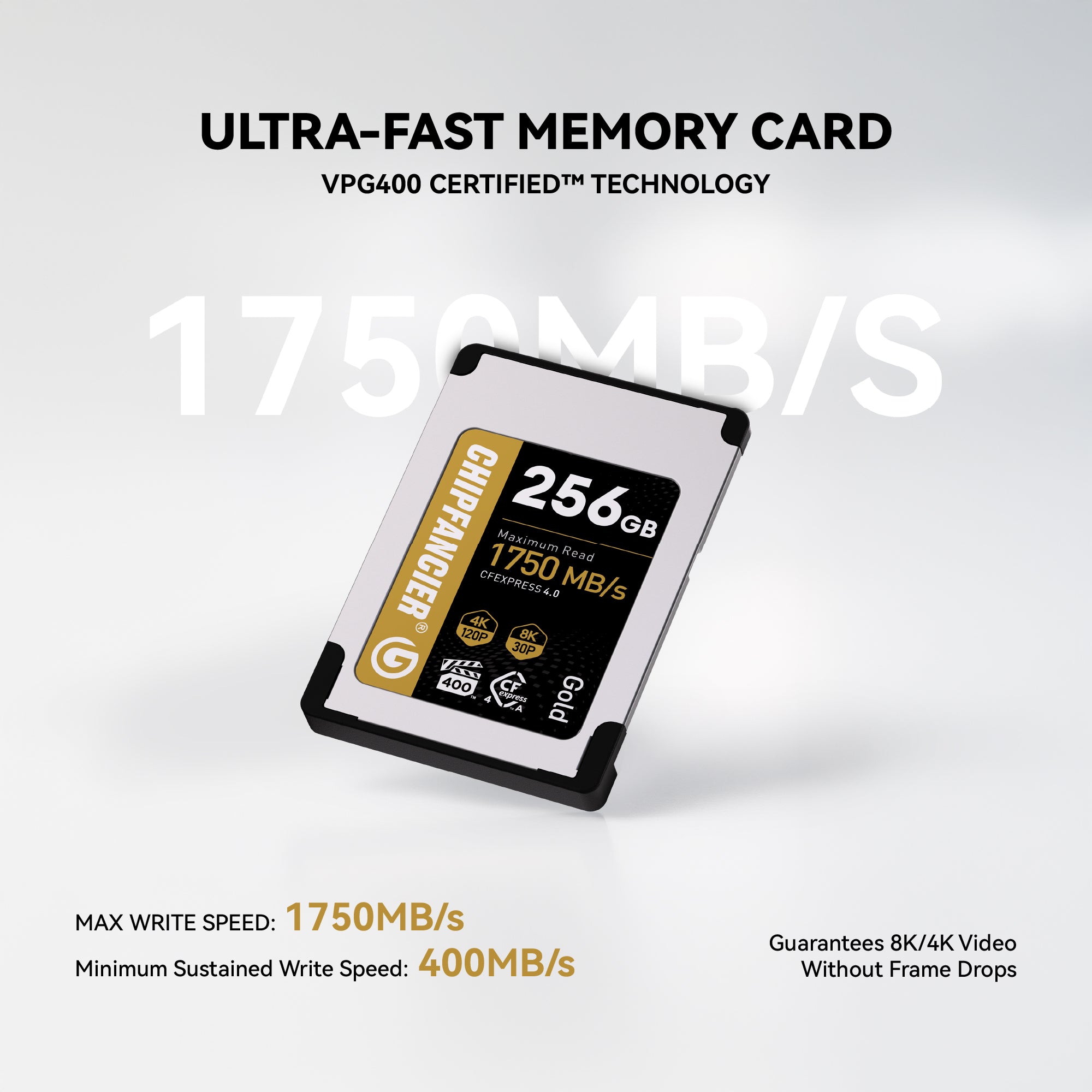

VPG400
3D TLC

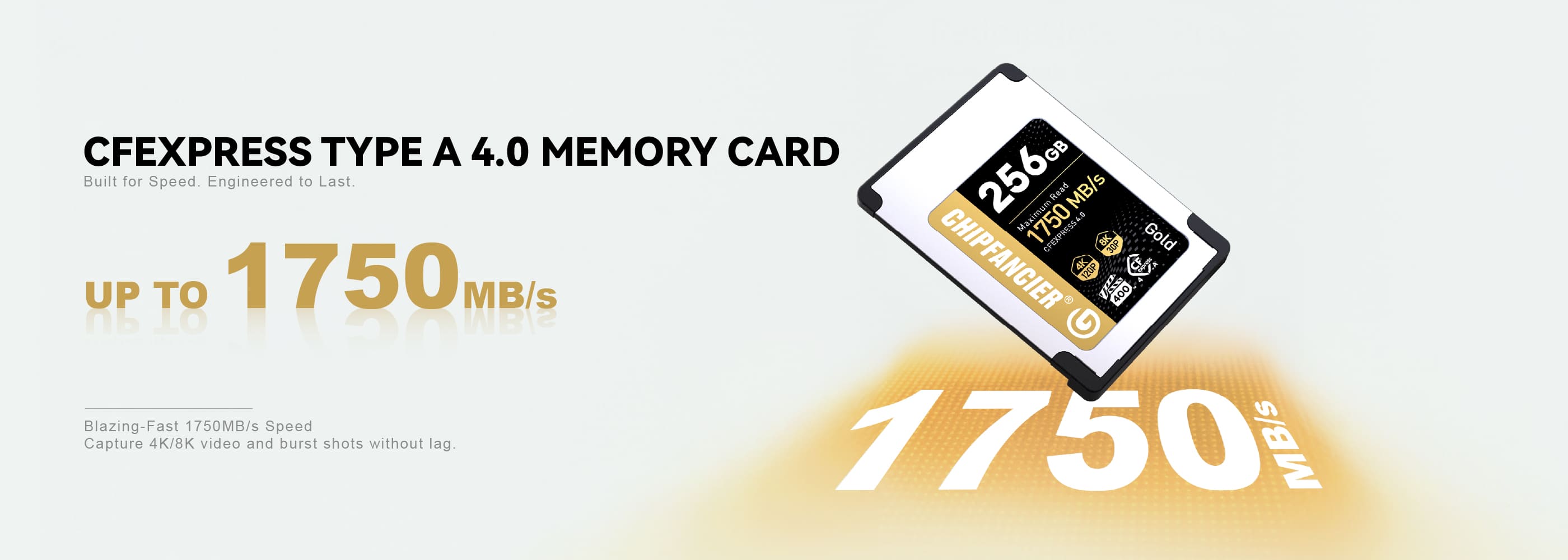

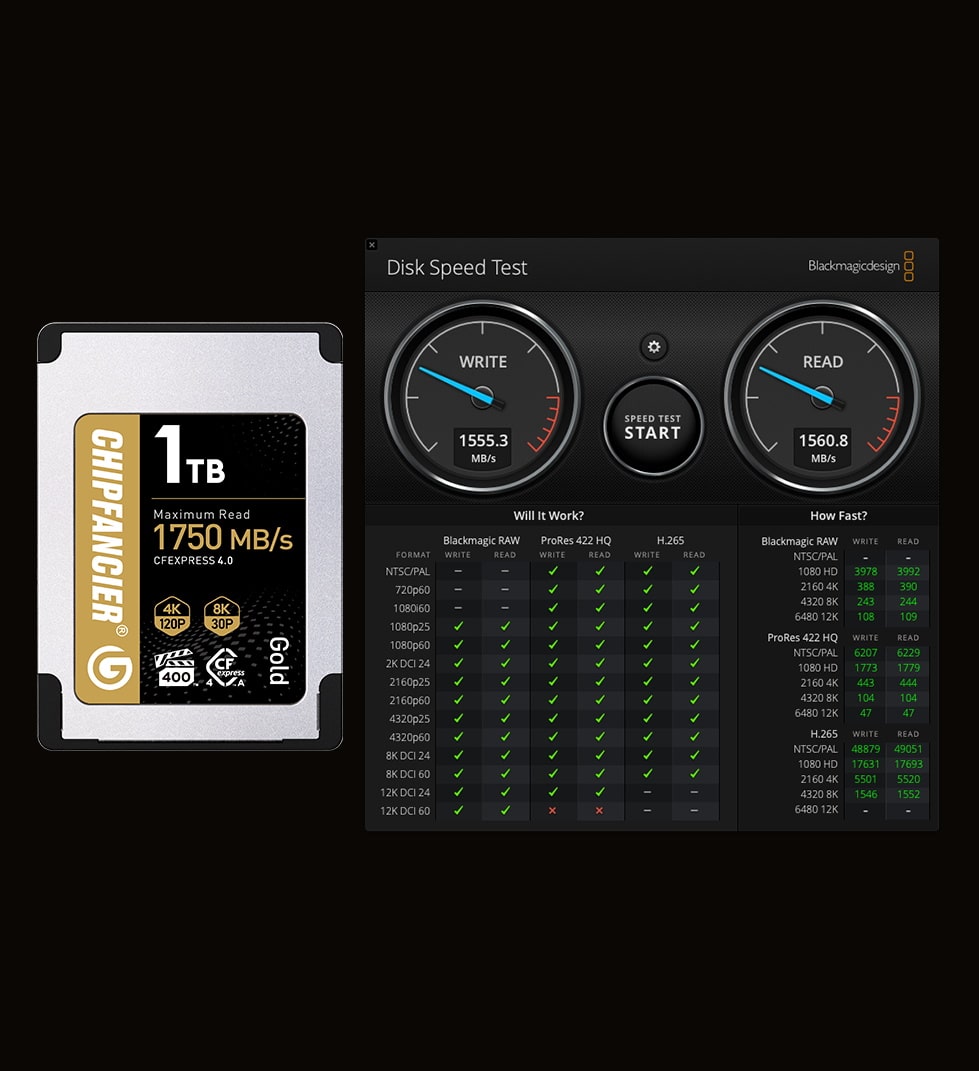

R:1750MB/s
W:1750MB/s
Lifetime warranty
232L
Sony:A7M4、A7R5、A7SE、A93、A1、FX3、FX30、FX6
12 nanometers
107%
PCIe 4.0
-15° degrees Celsius to 75° degrees Celsius
-40° degrees Celsius to 85° degrees Celsius
IP68 three proof
Double the performance
Upgrade without skimping

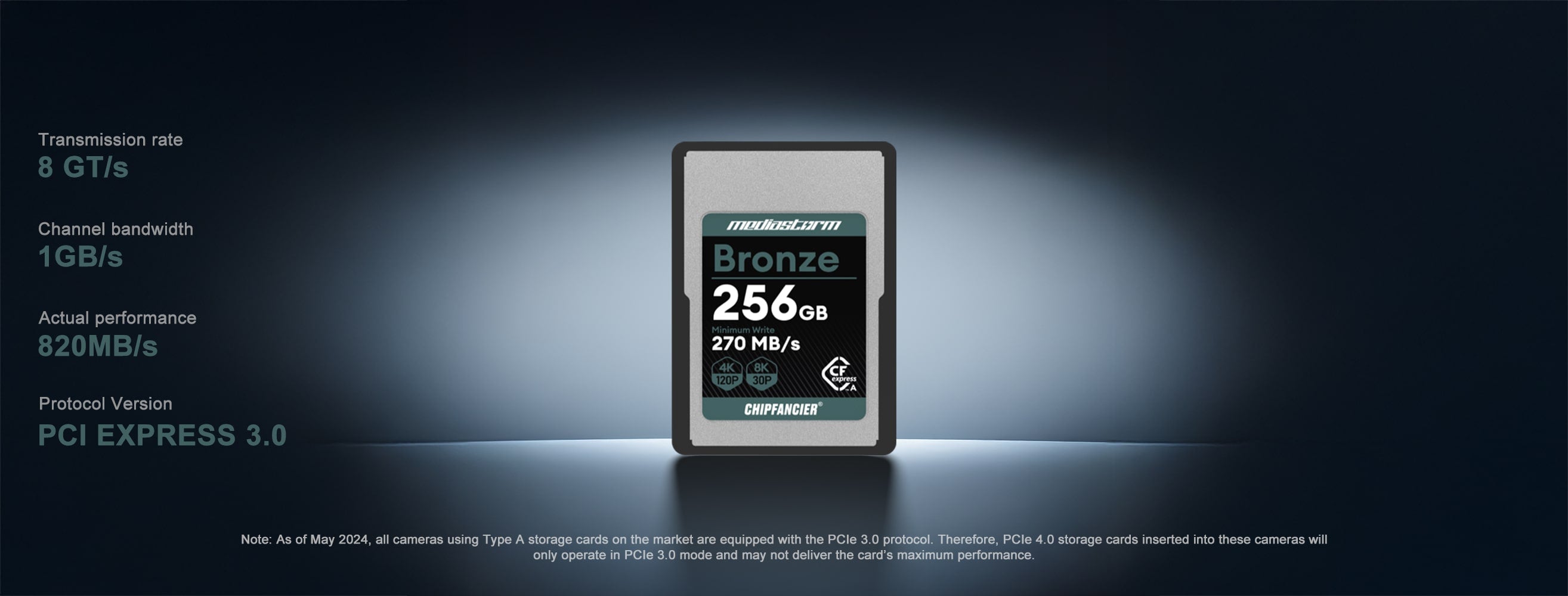

CFexpress Type-A 3.0 Bronze
CFexpress Type-A 4.0 Gold

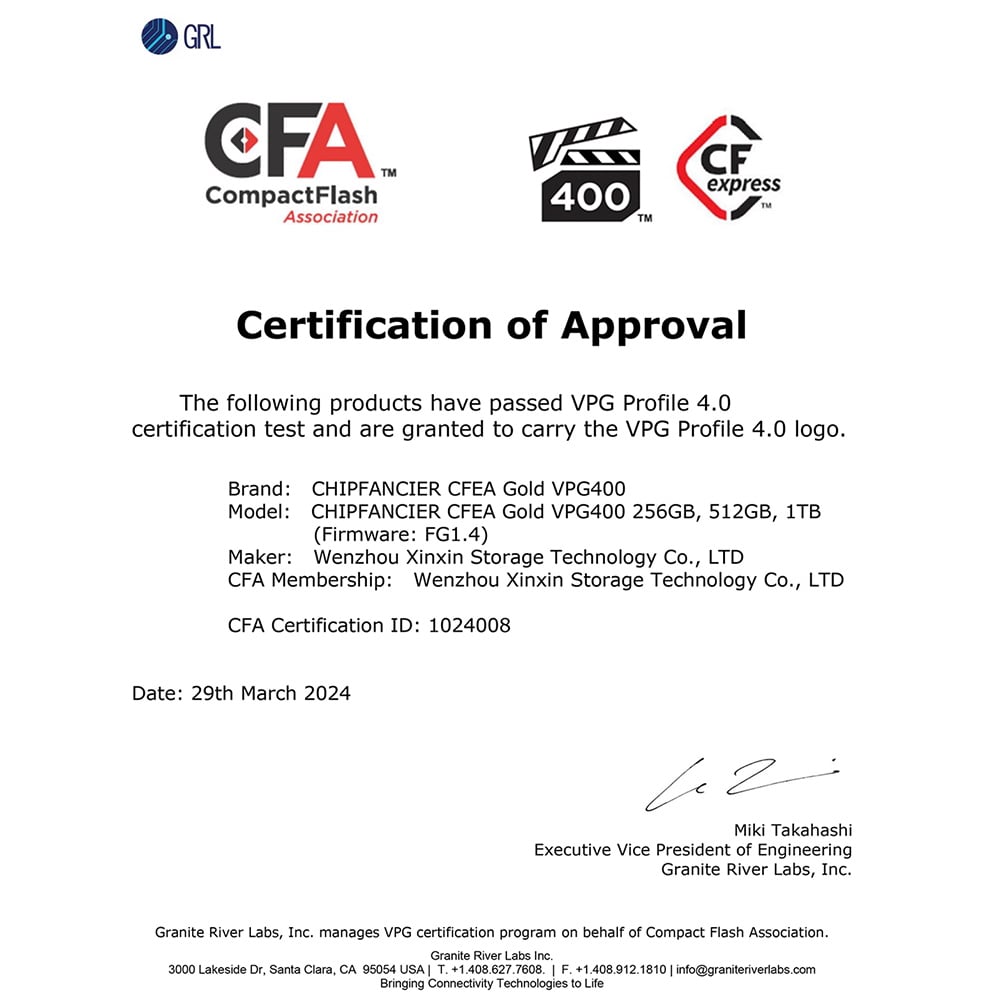

Officially certified by the CFA Association.
The association formulating the CFexpress Type-A standard.

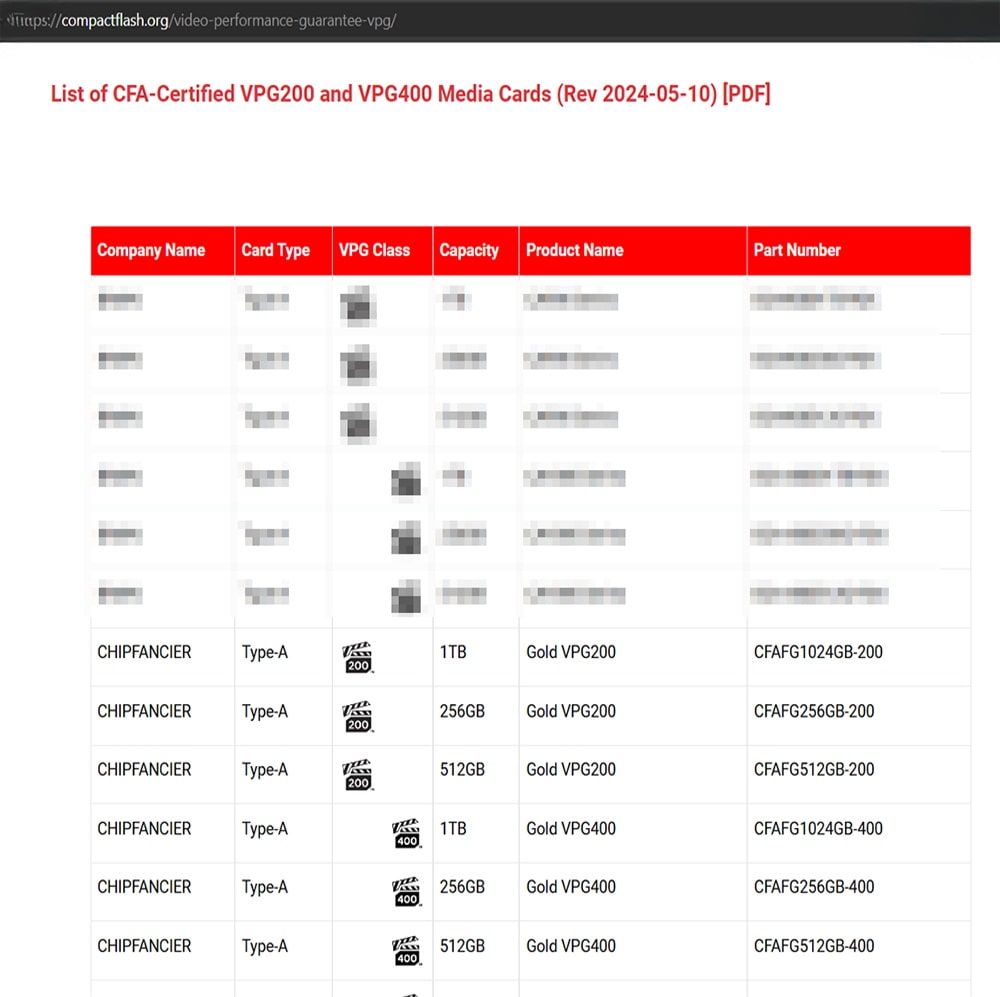

The memory card tested and certified by the CompactFlashAssociation(CFA).
CHIPFANGIER® is an executive member of the global CompactFlash Association (CFA). We are committed to being responsible for formulating the CFA association protocol versions and voting on new protocols. This includes but is not limited to standard protocol products such as CF, Cfast, and CFexpress. Our brand products are developed, authorized, and tested in strict accordance with the standards formulated by the association to provide better stability and compatibility for the products.
Chipfancier's new CFexpress 4.0 memory card, with excellent performance, boosts professional imaging

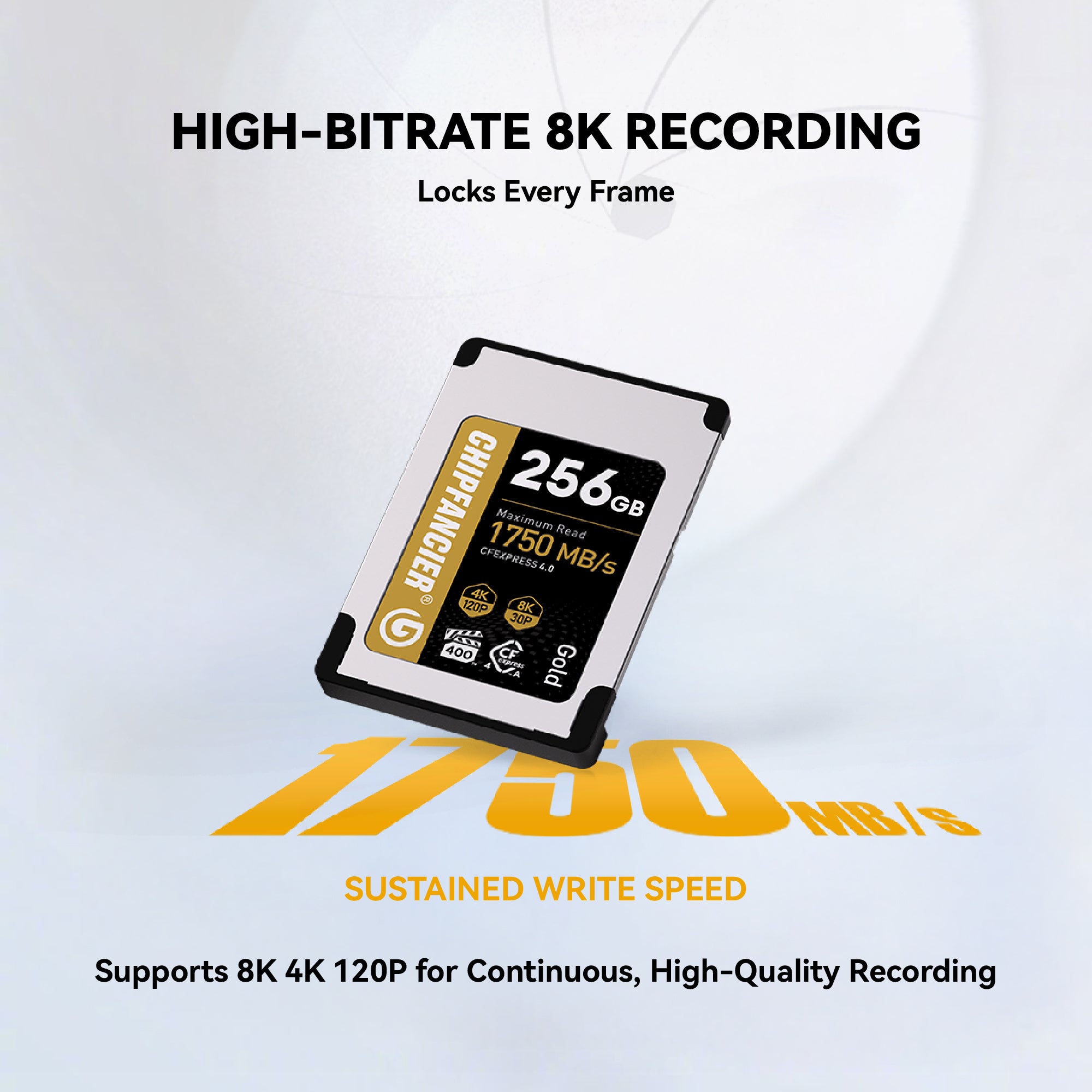

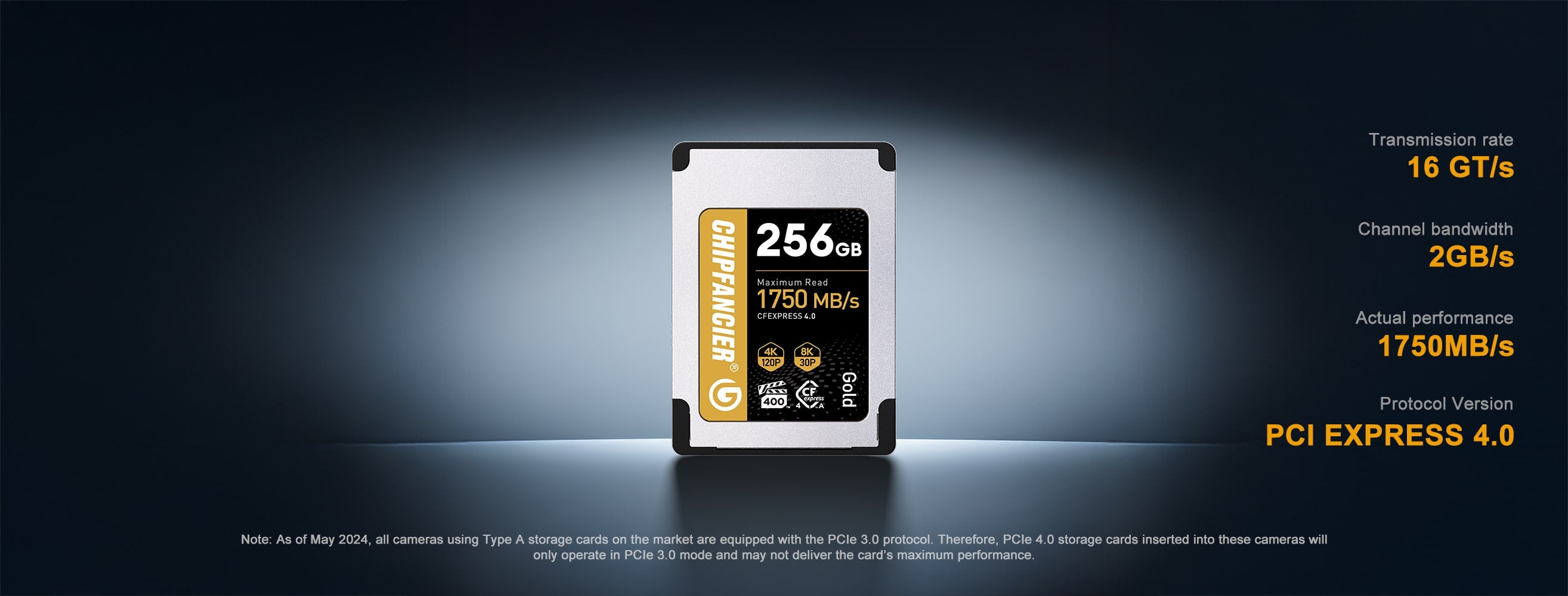

Chipfancier has developed its new CFexpress 4.0 Type A memory cards, offering next-gen performance with PCIe Gen 4 and NyMe technology. Available in 256GB, 512GB, and 1TB capacities, these cards provide read and write speeds up to 1750MB/s. Ideal for professional cameras and high-definition video capture, they ensure fast offloading of large video files and raw photos, making them perfect for smooth, uninterrupted 4K or 8K video recording.

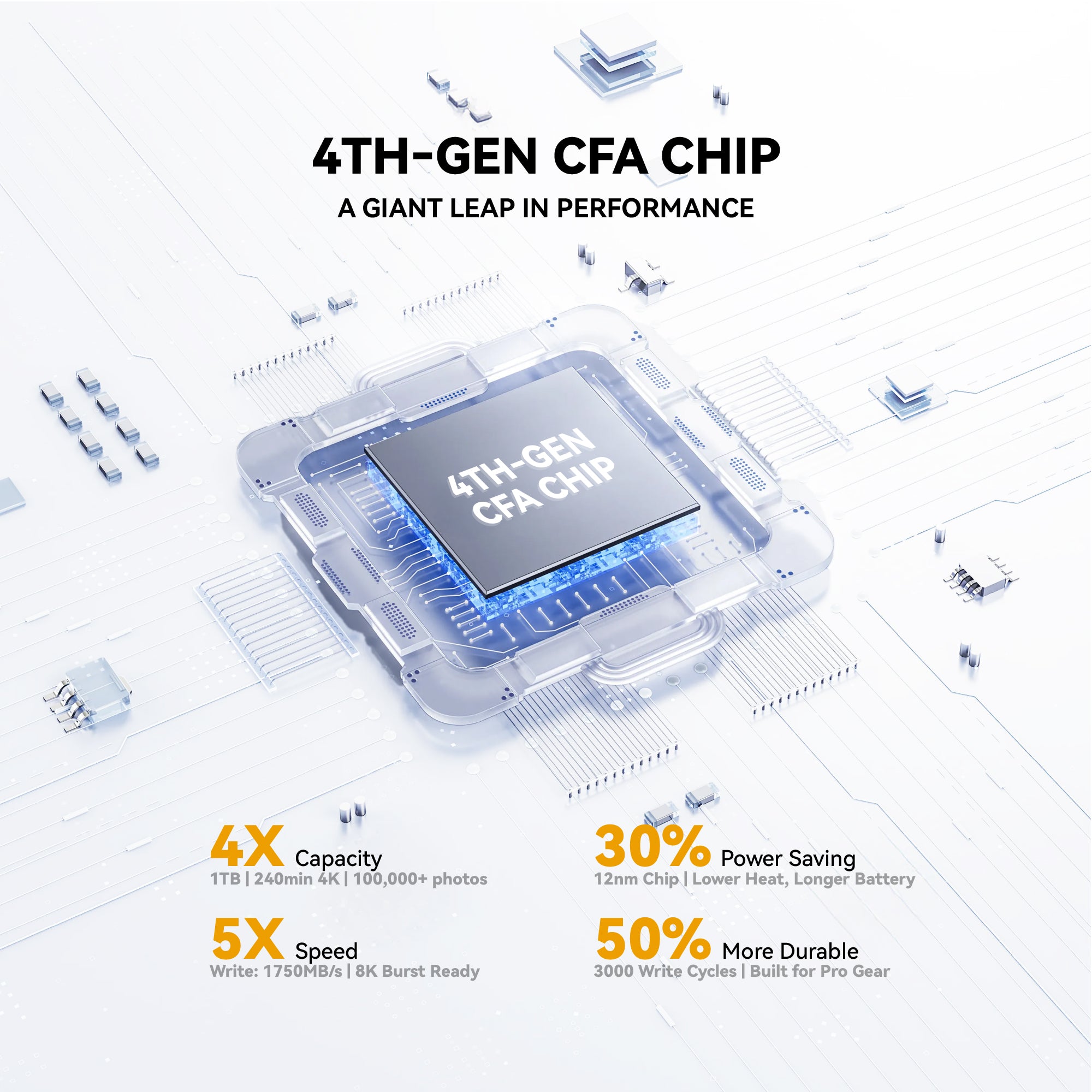

Advanced Manufacturing Process
12nm main control process

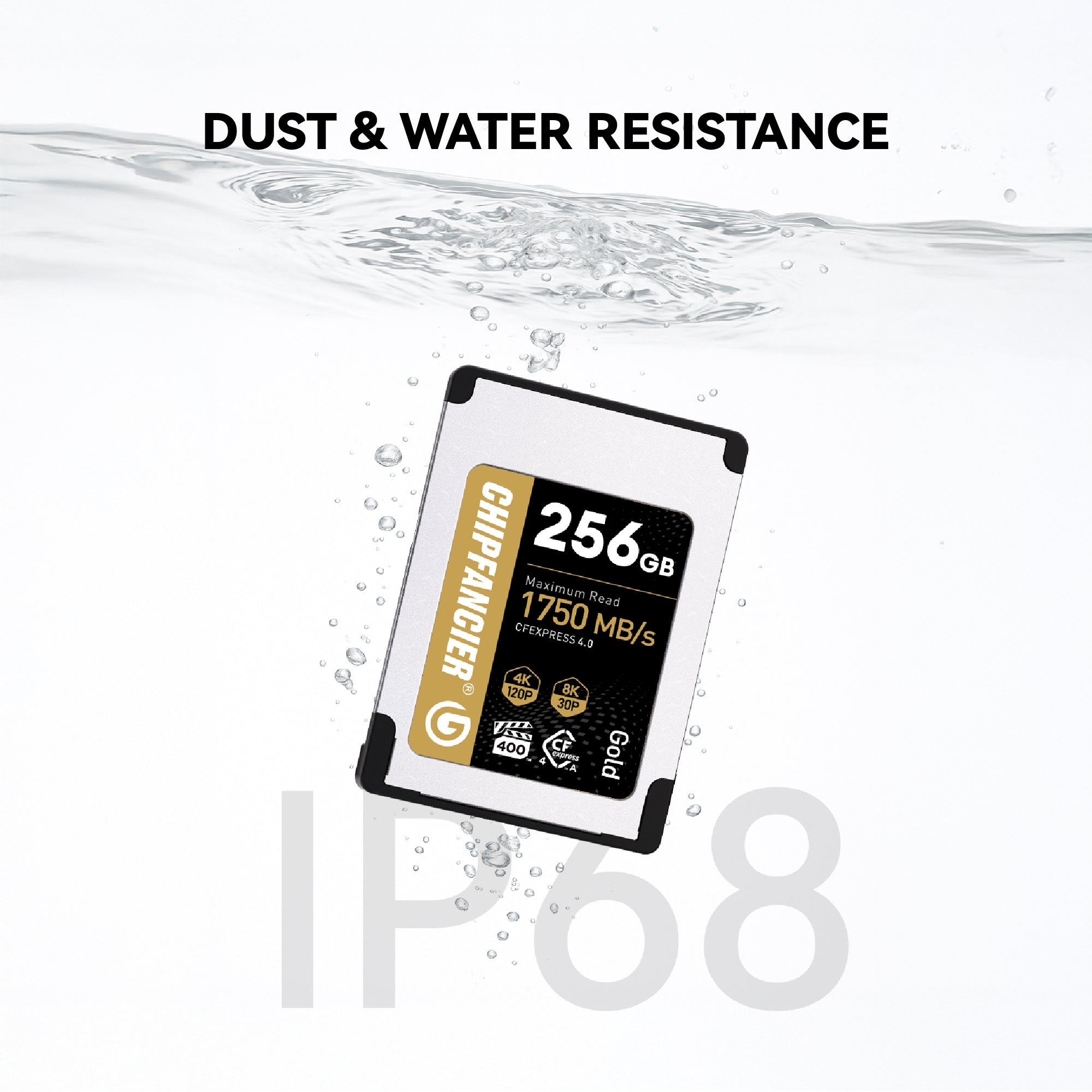

IP68 waterproof
Unlike traditional PCBA circuit boards, we use COB encapsulation process to encapsulate all the wafers and wires in the product as a whole, so that the IC chip is no longer exposed, which makes it more effective in terms of impact resistance, dust resistance and IP68 level waterproof performance. It can also protect the data under harsh conditions.

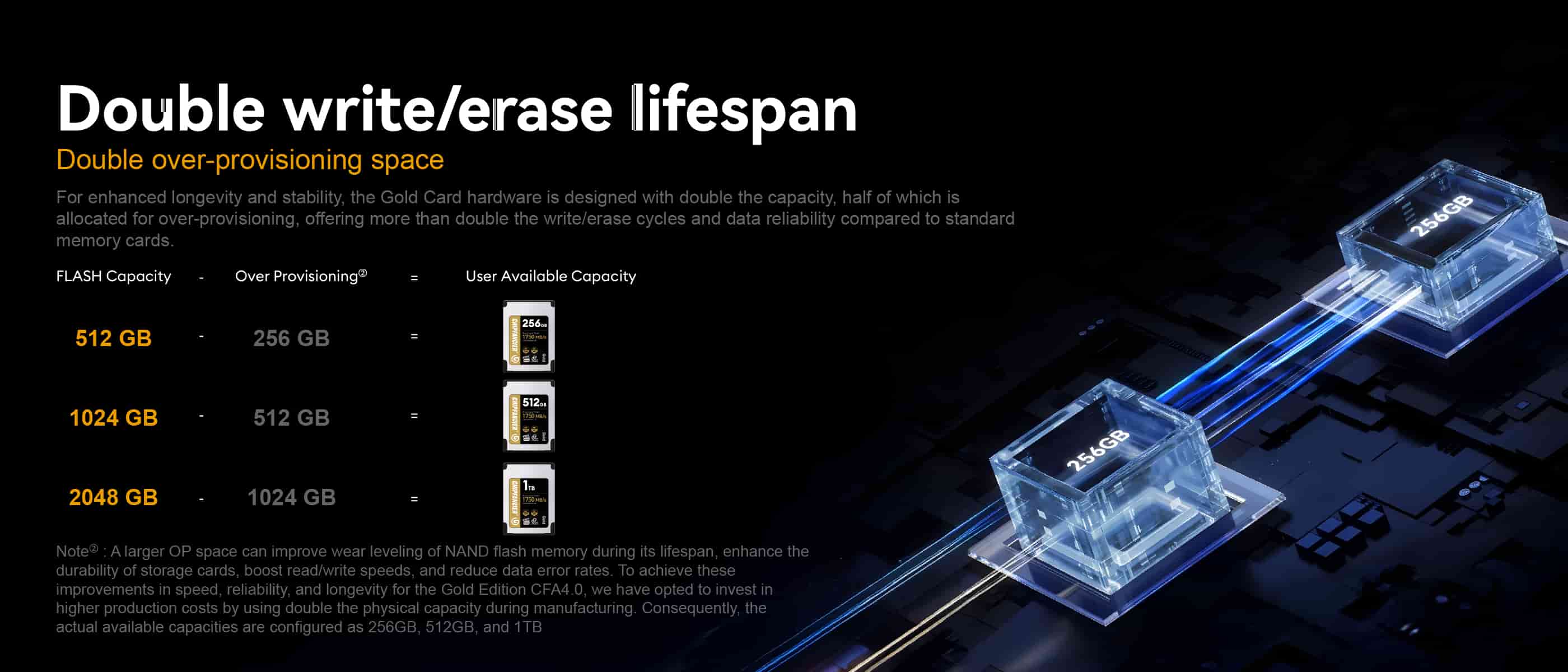

Double Erase Life Double Reserved Space
For even better longevity and stability, Gold Card hardware is produced using a double-capacity design-half for redundant space-for more than double the erasure life and data reliability of ordinary memory cards.

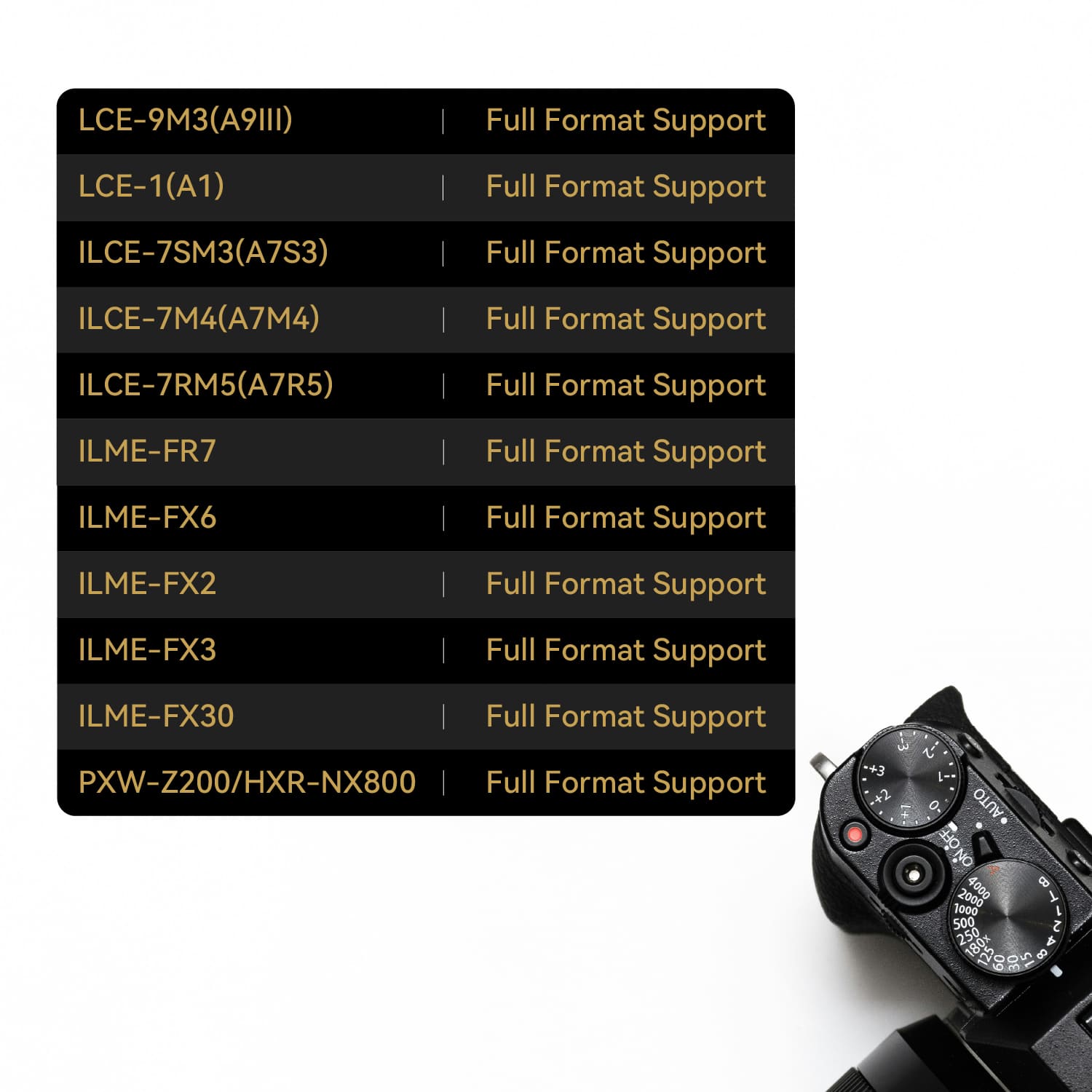

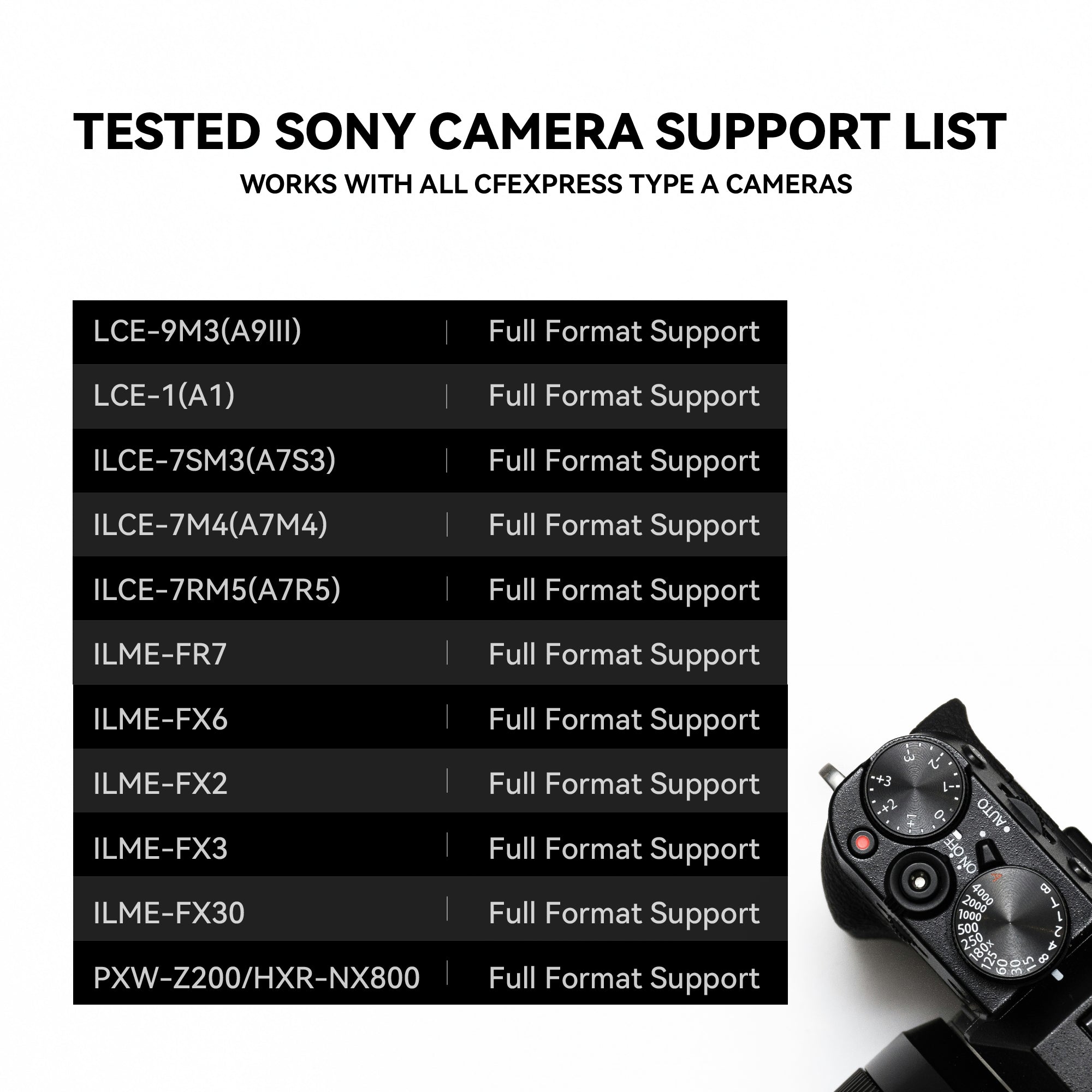

Compatible Devices

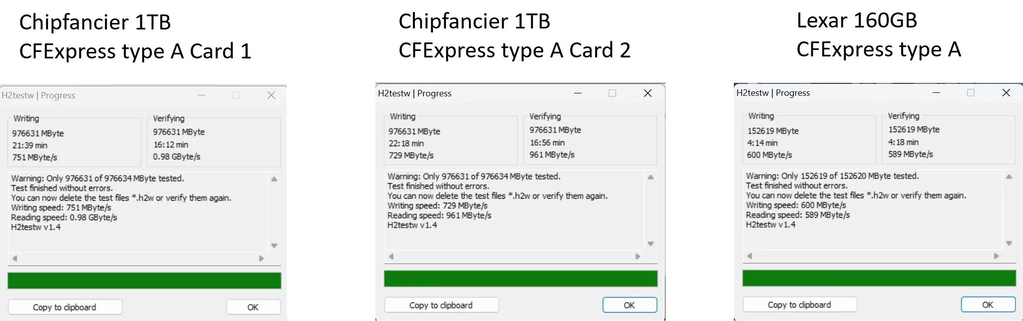

Note: Tested memory cards and cameras are the latest firmware versionsThis table will be kept up to date based on camera and memory card firmware iterationsUpdated:July 31, 2024

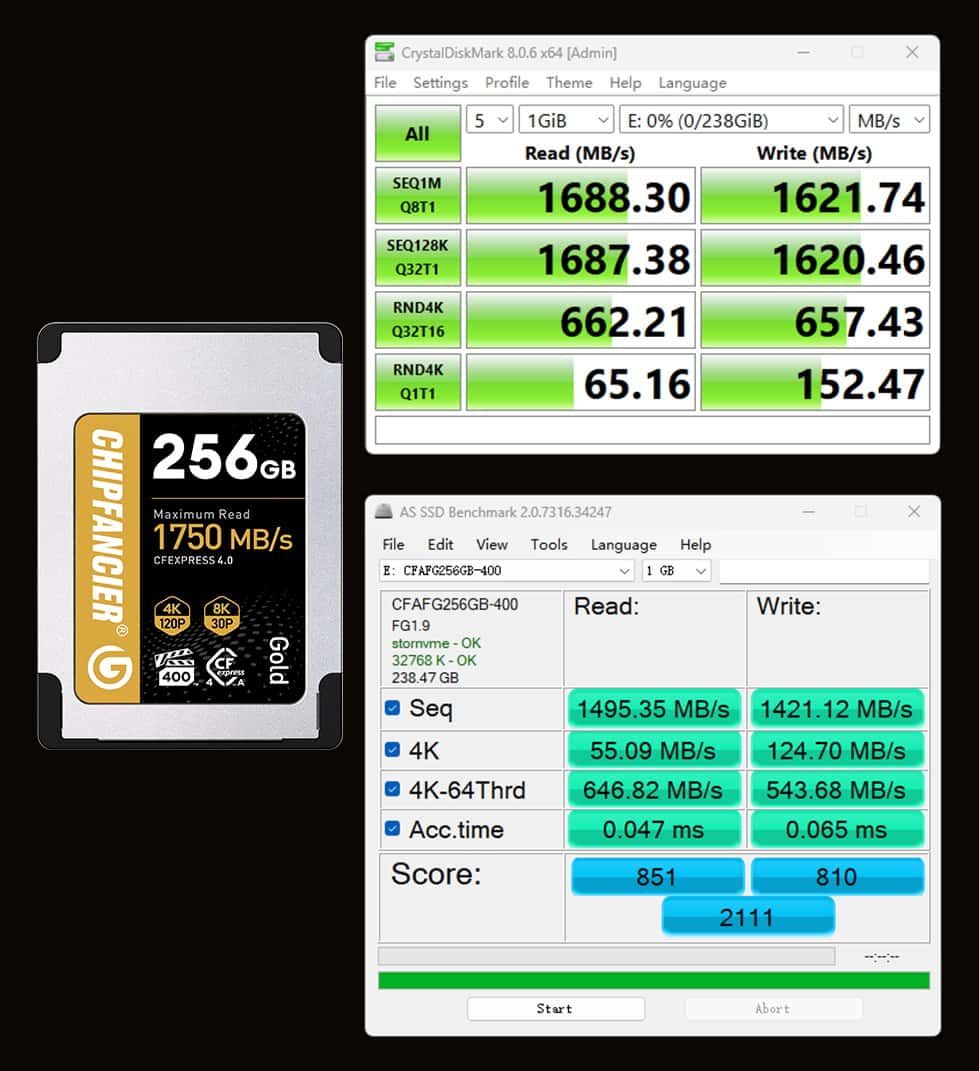

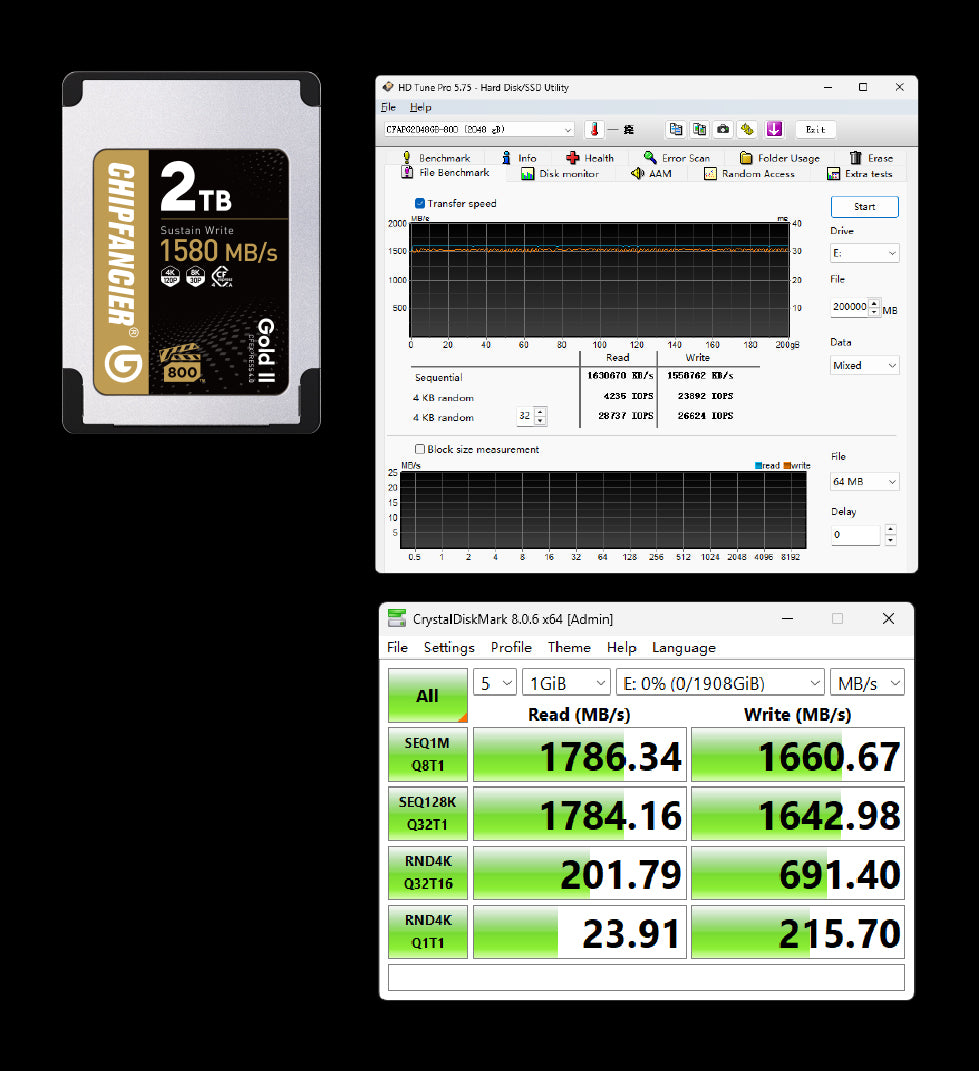

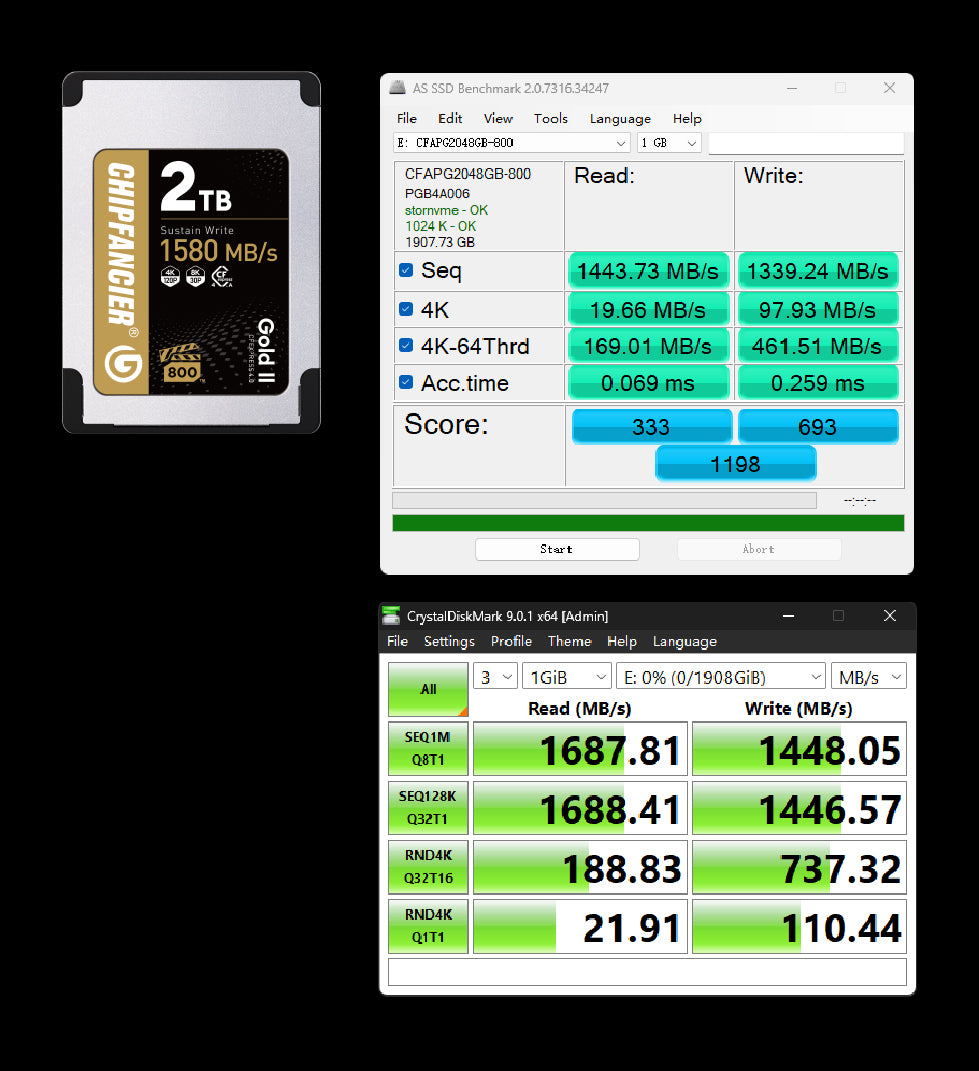

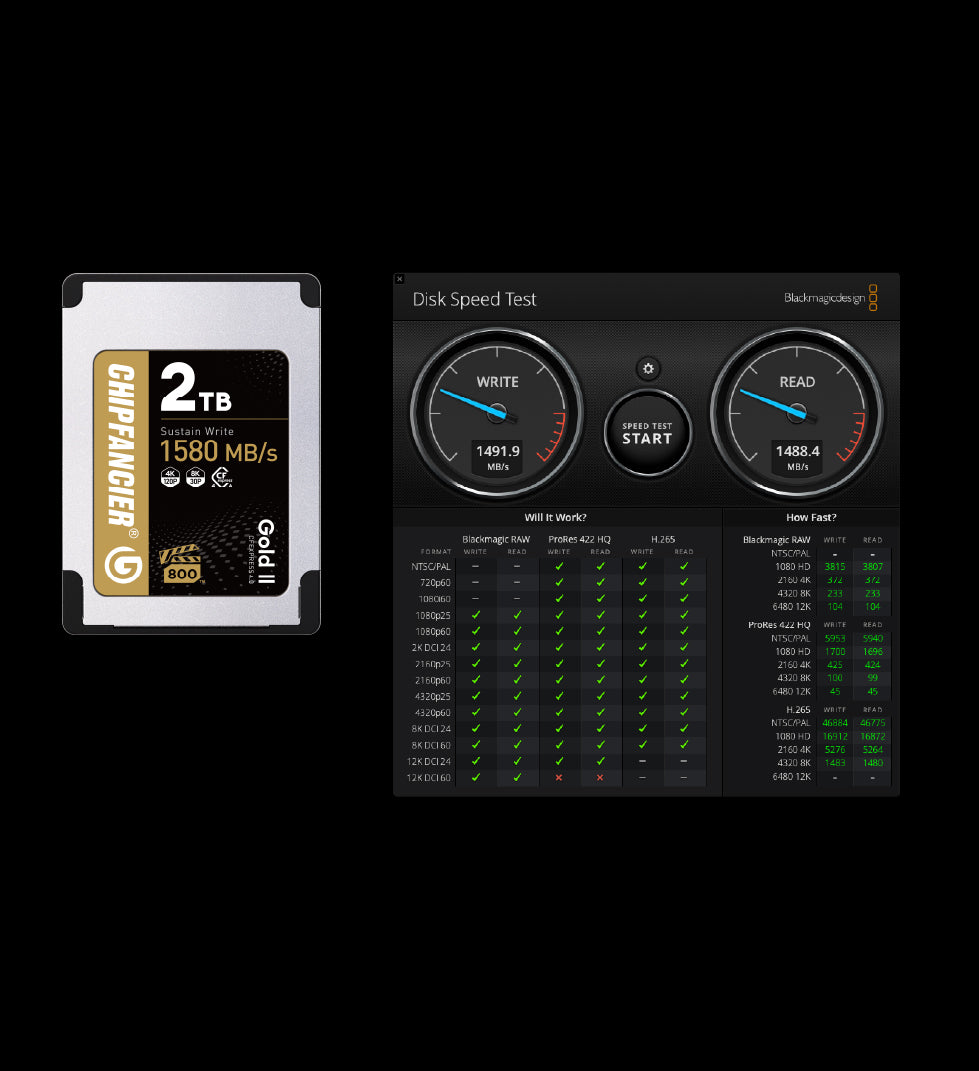

Test interface: CFEXPRESS adapter card connected to the motherboard PCle slot
Signal: PCle4.0 lossless transmission
Motherboard: MSI PRO Z690-A
CPU: Intel(R) Core(TM) i9-12900K @P-Core 5.2G E-Core 4.0G (all CPU power-saving features turned off)
Memory: Oloy DDR4 8GBX2 4000Mhz Gearl C14-14-14-28.
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci

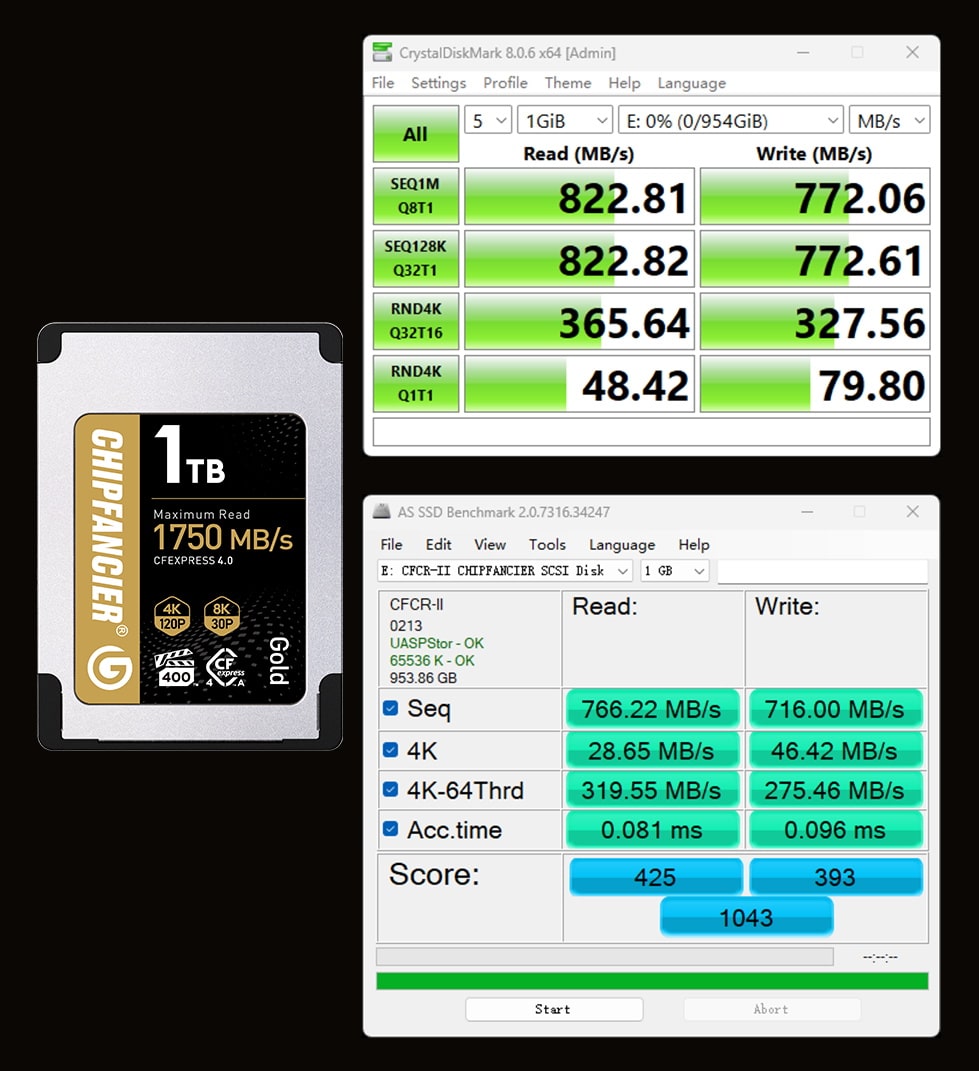

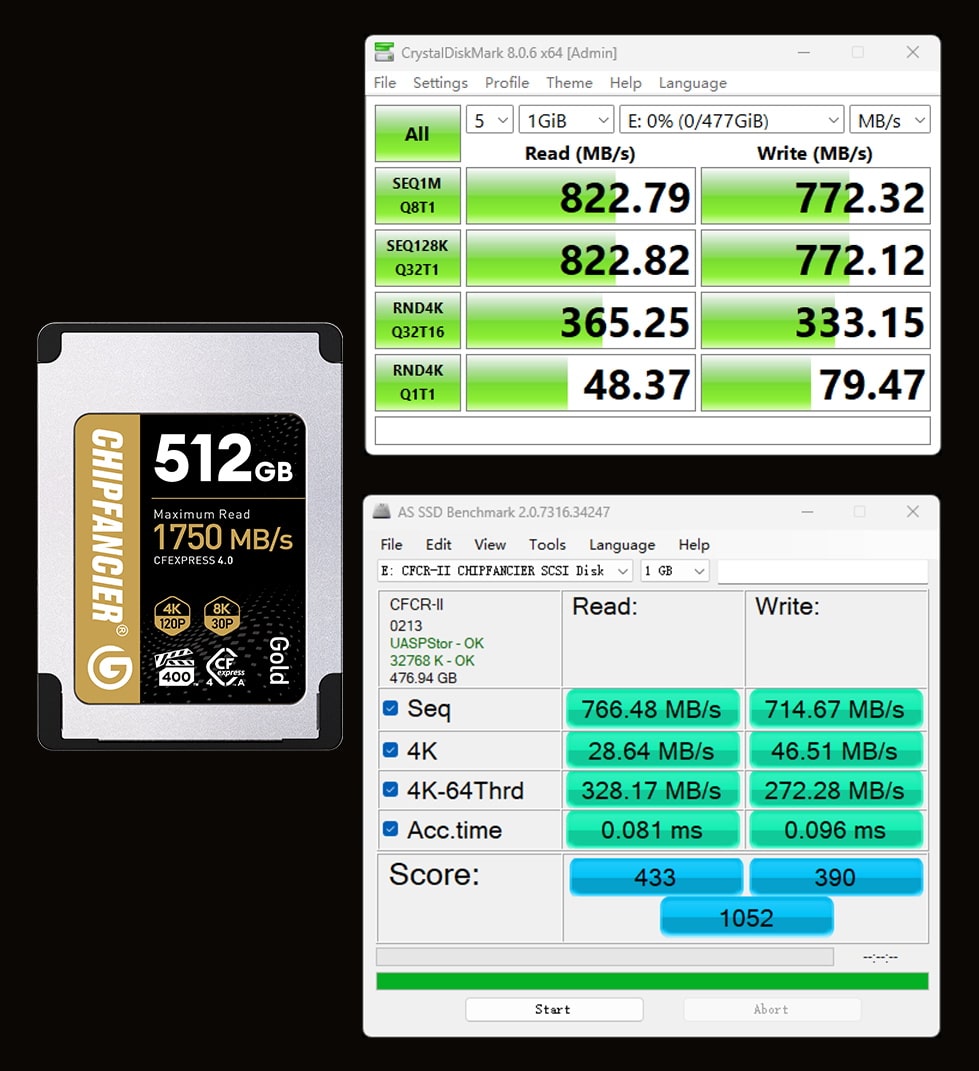

Test interface: USB4 40Gb/s card reader plug Thunderbolt 4 interface
Signal: PCle4.0 to USB4 40Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R)Core(TM)i9-14900K@P-Core 5.8G E-Core 4.5G (all CPU power saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci
Test interface: USB3.1 10Gb/s card reader plug Thunderbolt 4 interface ③ ④
Signal:PCle3.0 to USB10Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R)Core(TM)i9-14900K@P-Core 5.8G E-Core 4.5G (all CPU power saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci
Test interface: CFEXPRESS adapter card connected to the motherboard PCle slot
Signal: PCle4.0 lossless transmission
Motherboard: MSI PRO Z690-A
CPU: Intel(R) Core(TM) i9-12900K @P-Core 5.2G E-Core 4.0G (all CPU power-saving features turned off)
Memory: Oloy DDR4 8GBX2 4000Mhz Gearl C14-14-14-28.
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci
Test interface: USB4 40Gb/s card reader plug Thunderbolt 4 interface
Signal: PCle4.0 to USB4 40Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R)Core(TM)i9-14900K@P-Core 5.8G E-Core 4.5G (all CPU power saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci
Test interface: USB3.1 10Gb/s card reader plug Thunderbolt 4 interface ③ ④
Signal:PCle3.0 to USB10Gb/s
Motherboard: ROG STRIX Z790-I GAMING WIFI
CPU: Intel(R)Core(TM)i9-14900K@P-Core 5.8G E-Core 4.5G (all CPU power saving features turned off)
Memory: Gloway DDR5 M-die 24GBX2 8000Mhz Gear2 C36-48-48-58
Hard disk: Samsung PM9A1 1TB 2280 nvme pci4.0
System: Windows 11 Enterprise (x64) 22H2 (power on excellent performance)
Driver: System default storahci

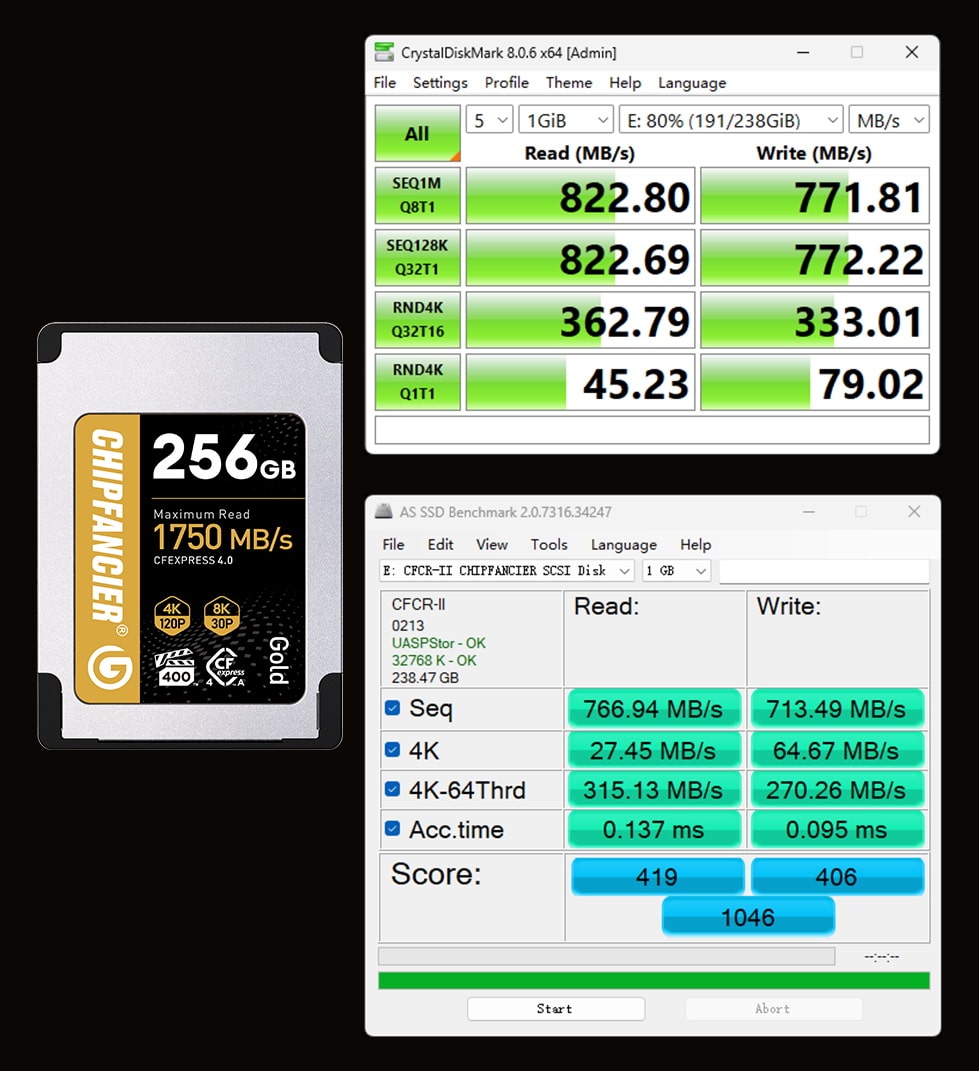

Note ③: Because PCle3.0x1 and USB3.1GEN2 card readers are limited by the interface bandwidth, the test results of different capacity memory cards are the upper limit of the bandwidth, so we will not do more tests, the upper limit of the speed of the different interfaces are about.
USB 2.0= 40MB/S
USB 3.0 / USB 3.1 GEN1/USB3.2 GEN1= 400MB/S
USB 3.1 GEN2 /USB 3.2 GEN2= 800MB/S

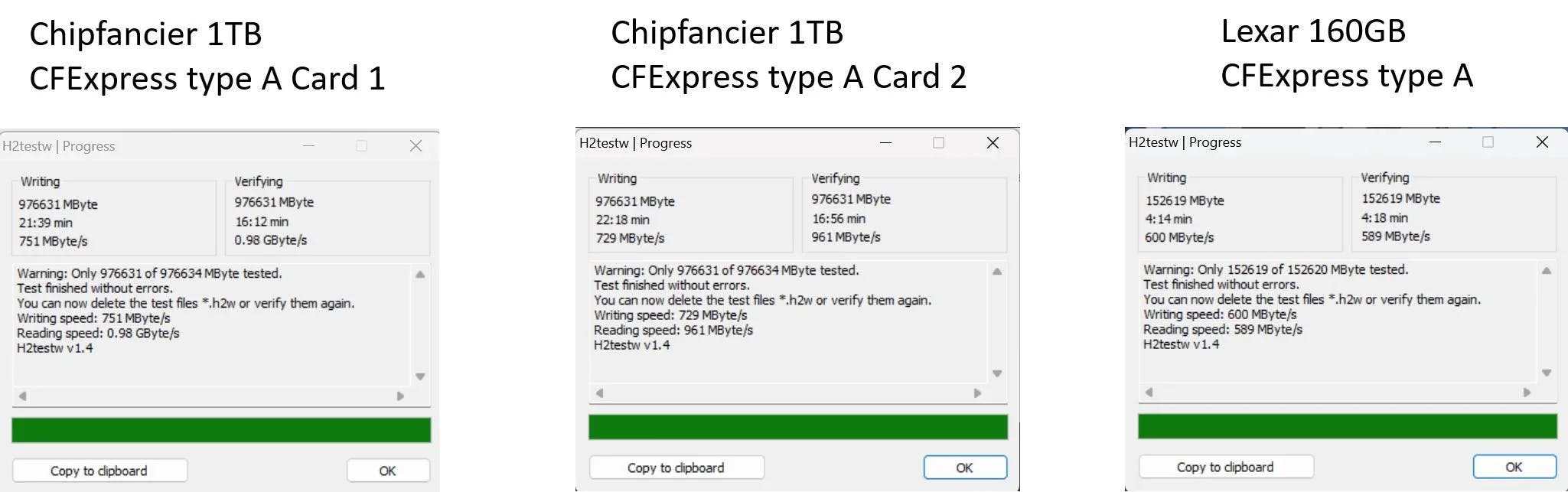

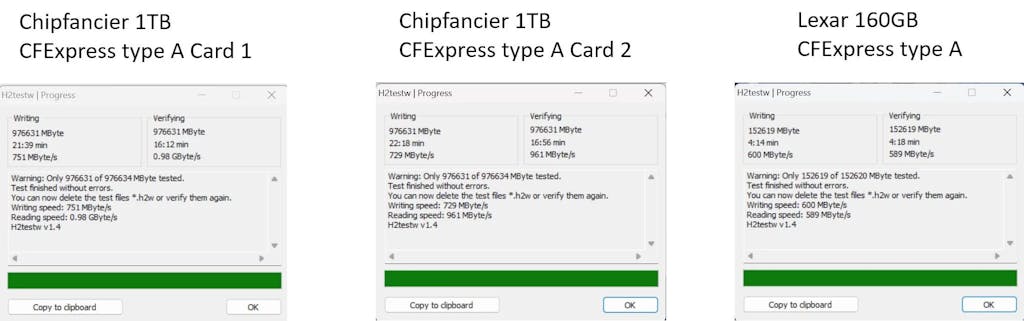

Note④: Gold Edition CFA4.0 has some SLC CACHE capacity in order to meet the VPG400 certification requirements, and is expected to slow down the full disk speed to 750MB/s for writing and 1750MB/s for reading.
(In order to meet the VPG certification of extreme high and low temperature reliability 256G, 512G, 1T slow outside the full disk are 750MB/S)
Frequently Asked Questions
Have a question ? We are here to help.

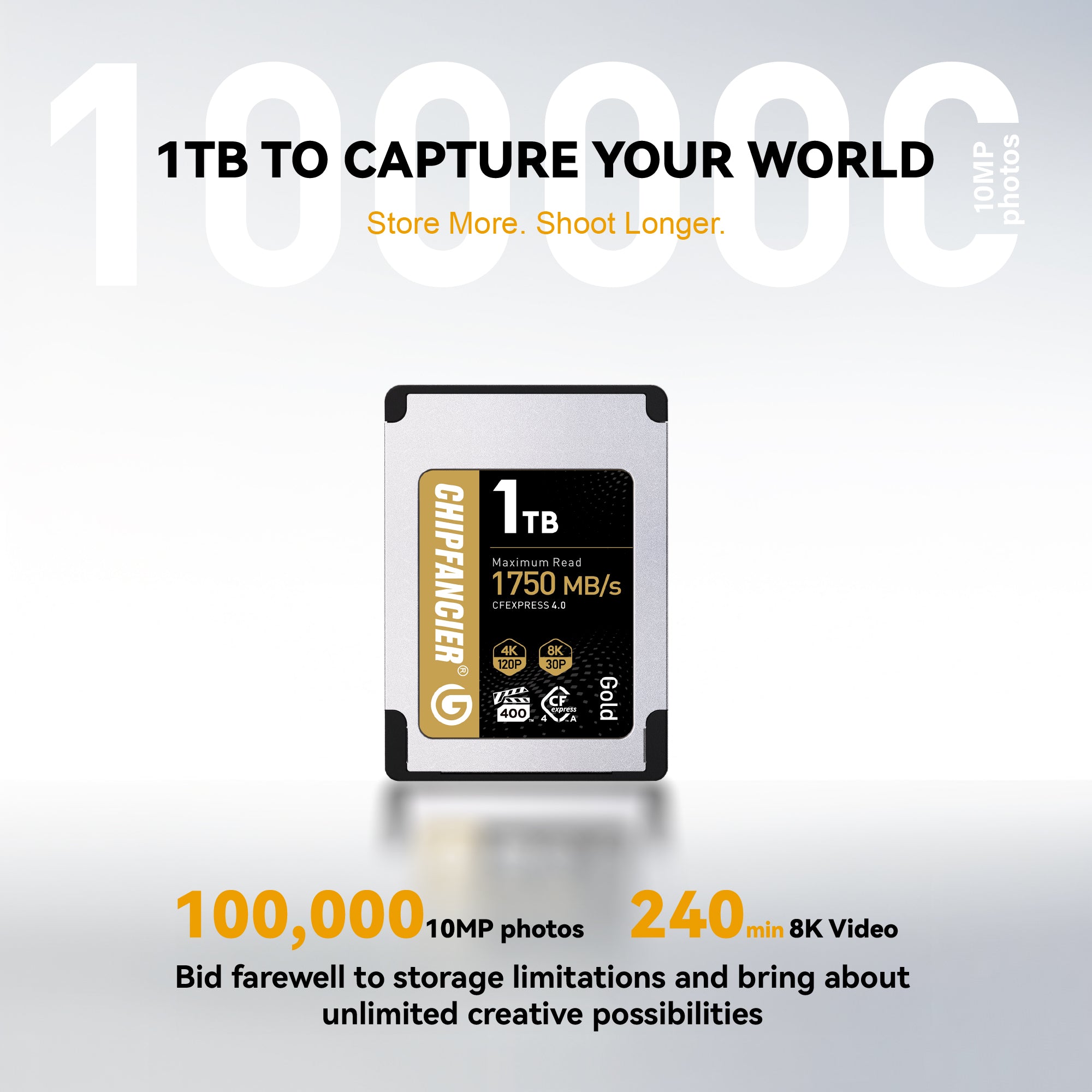

Q: How should I choose the storage capacity? Should I buy 256GB, 512GB, or 1TB?
A: For example, with 8K RAW on the R5, a 512GB card can store only about 24 minutes of footage, while a 1TB card can store around 48 minutes. Therefore, if you have high-bitrate video recording needs, we generally recommend starting with a 512GB card. However, if you are just doing regular photography, a 128GB or 256GB card should be sufficient.
Q: Is your memory card compatible with my camera? How is the compatibility?
A: Our memory cards are compatible with the vast majority of currently available cameras and do not have compatibility issues. Additionally, we continuously update and improve the firmware of the cards to better support newly released cameras. For a detailed list of supported models, please refer to the information at the beginning or contact customer service.
Q: What is the actual capacity displayed on the camera and on the computer?
A: For example, with a 512GB card, the difference in capacity display is due to the binary (1GB = 1024MB) and decimal (1GB = 1000MB) calculation methods. Cameras and Windows systems use binary calculation, so they display 476GB. macOS uses decimal calculation, so it displays 512GB.
Q: How does your product compare to other brands like Sony or SanDisk?
A: Sorry, we do not comment on competitors' products, as they are respected counterparts. We recommend purchasing our product for your own comparison. We offer a 7-day no-reason return policy, so if you are not satisfied with our product, you can return it.
Q:Can purchasing a memory card guarantee data recovery?
A: Sorry, we do not make such absolute guarantees. Although the overall failure rate of our memory cards is very low, we cannot guarantee that they will never encounter issues. Without being able to predict the exact cause of any potential problems, we cannot offer a 100% data recovery guarantee. However, if you do encounter such difficult issues, we will make every effort to attempt data recovery, and this service is provided free of charge.

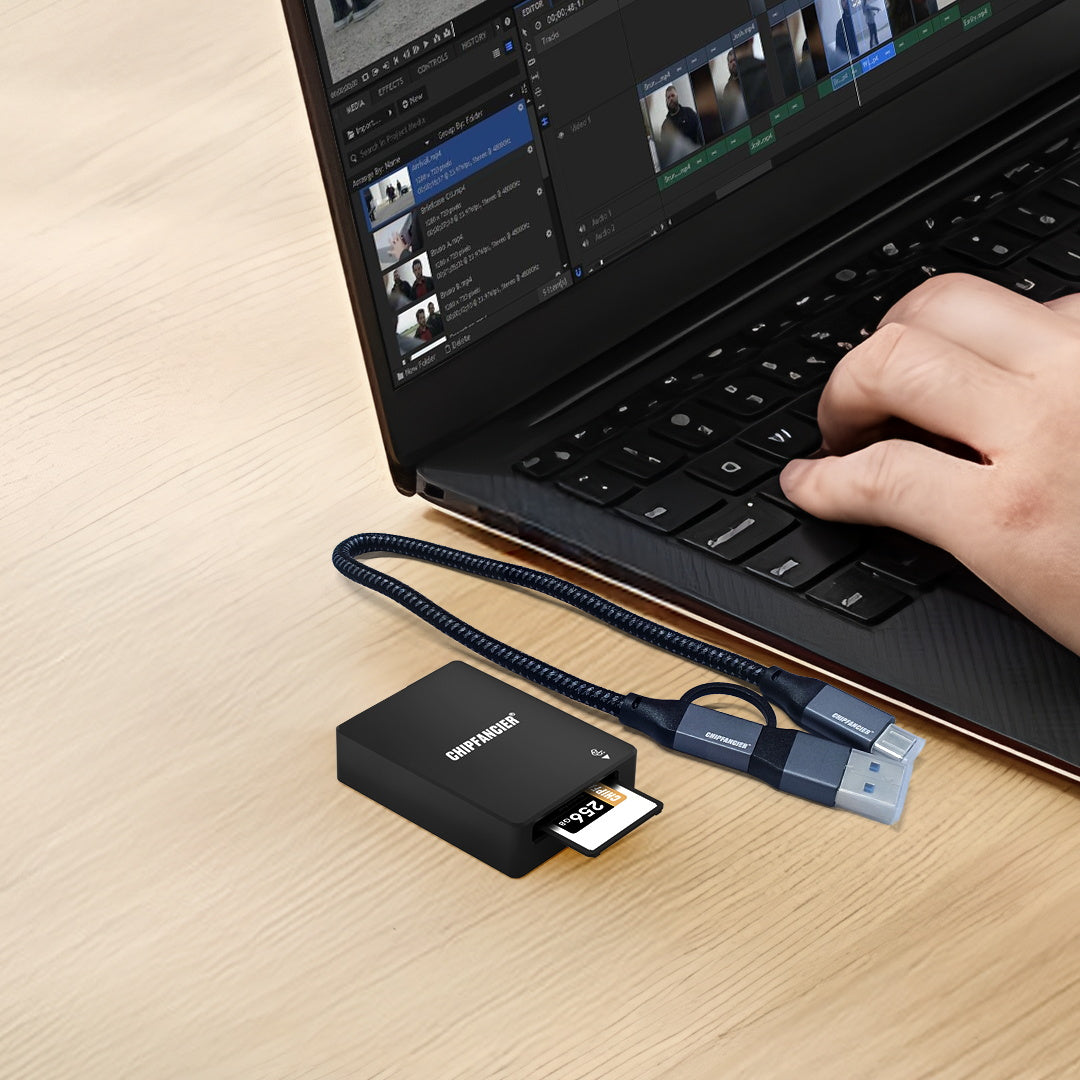

Q: Is the card reader universal? Can it use an XQD reader? Does it overheat?
A: Other brands' CFexpress card readers should theoretically be compatible with our memory cards, but actual performance may vary, and we cannot guarantee 100% compatibility. XQD card readers, in theory, cannot support CFexpress memory cards. Our memory cards have high performance, so some heat generation is inevitable during operation. However, we have optimized the algorithm protocol and power DCDC to ensure that, compared to other products, our cards generate relatively low heat.
Q: What are the overall advantages of your CFexpress?
A: We are a senior council member of the global CFA organization (https://compactfash.org), which is responsible for setting the CFexpress standards. Each of our memory card products undergoes testing and certification by the CFA association, so you can be assured of their quality and compatibility.
Q: Does it support Z8/Z9’s 8.3K 60P and RED W’s 8K 120P? Can it continuously record until full?
A: The Gold version offers excellent performance, meeting the high specifications required for demanding recording needs, including 8.3K 60P NRAW quality for the Z9, as well as 8K recording for the R5, R5C, and RED VV. Additionally, the Gold version has low power consumption and maintains stable full-card speeds, supporting recording until the card is full.
Q: What is the actual speed on the computer? Is it as fast as advertised?
A: Actual speed can be affected by your computer's configuration and the files being copied, similar to how a sports car's speed is influenced by the type of road it’s on. Computer speed is a "bucket effect," where any limitations can become a bottleneck. For example, if you use a USB 2.0 port, even the best computer will only achieve speeds of around 20-30 MB/s. Similarly, if you’re copying from an HDD to a CFexpress card, even with a USB 3.0 connection, the speed will be limited by the HDD’s read speed.
Q: What brand is this? Is it made in China?
A: Our company has been selling enterprise-level and camera storage products since 2013, and started developing and launching solid-state USB drives in 2014. Our products use solutions from various regions in China, including ASMedia (Taiwan), SM (Taiwan), InnoGrit (Shanghai), and Phison (Taiwan). The flash memory is supplied by companies like Toshiba (Japan), SanDisk (Japan), and Micron (USA). Therefore, while we are a semiconductor design company based in China, our core components come from around the world.
Q: How is the product warranty handled?
A: CFexpress memory cards come with a lifetime warranty and have no write limit. Card readers come with a 1-year warranty. For qualit y issues within 30 days of the order, we will cover the round-trip shipping costs. After 30 days, shipping costs will be shared. Please note that issues caused by user actions such as disassembly, repair, bending, deformation, or water damage will void the warranty.
