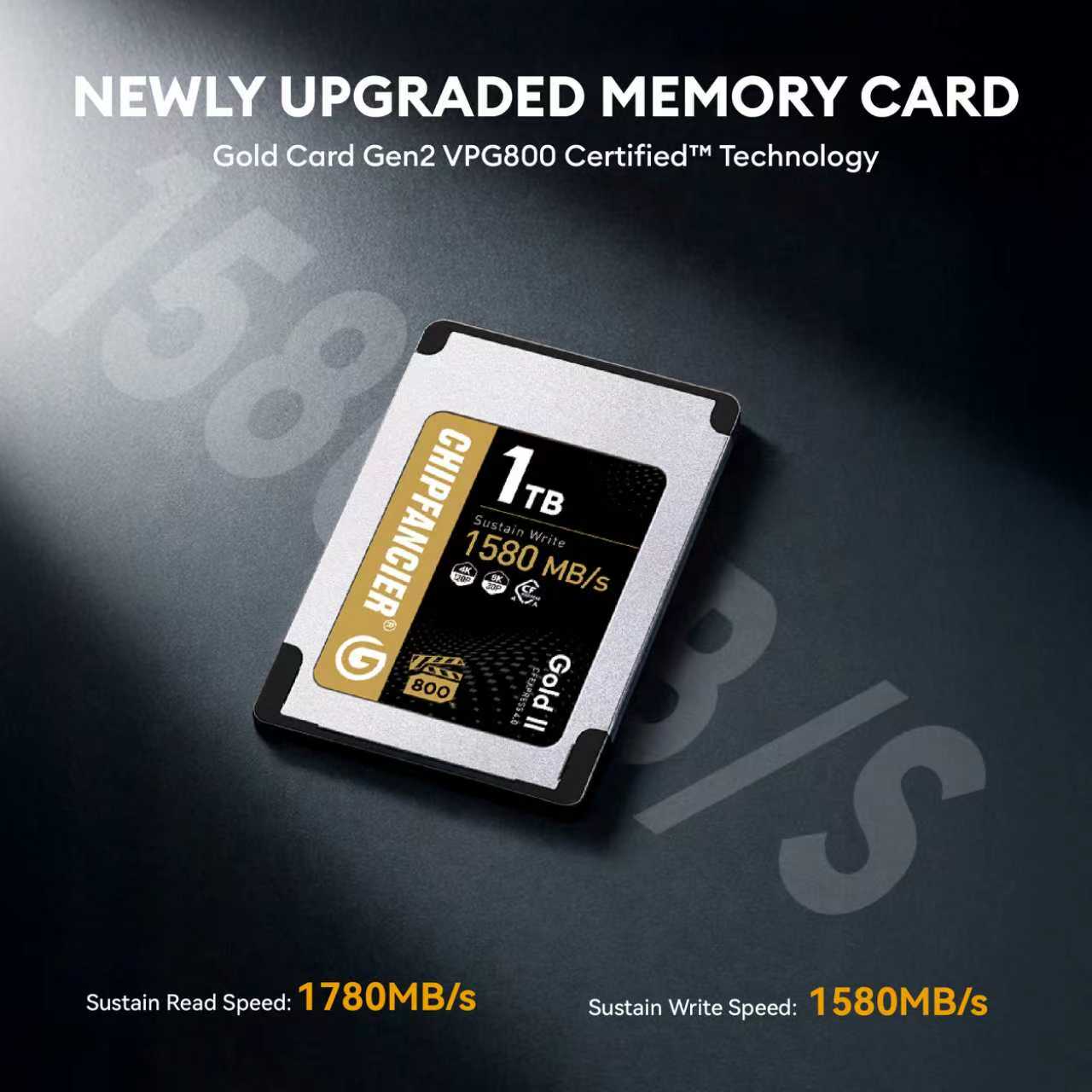

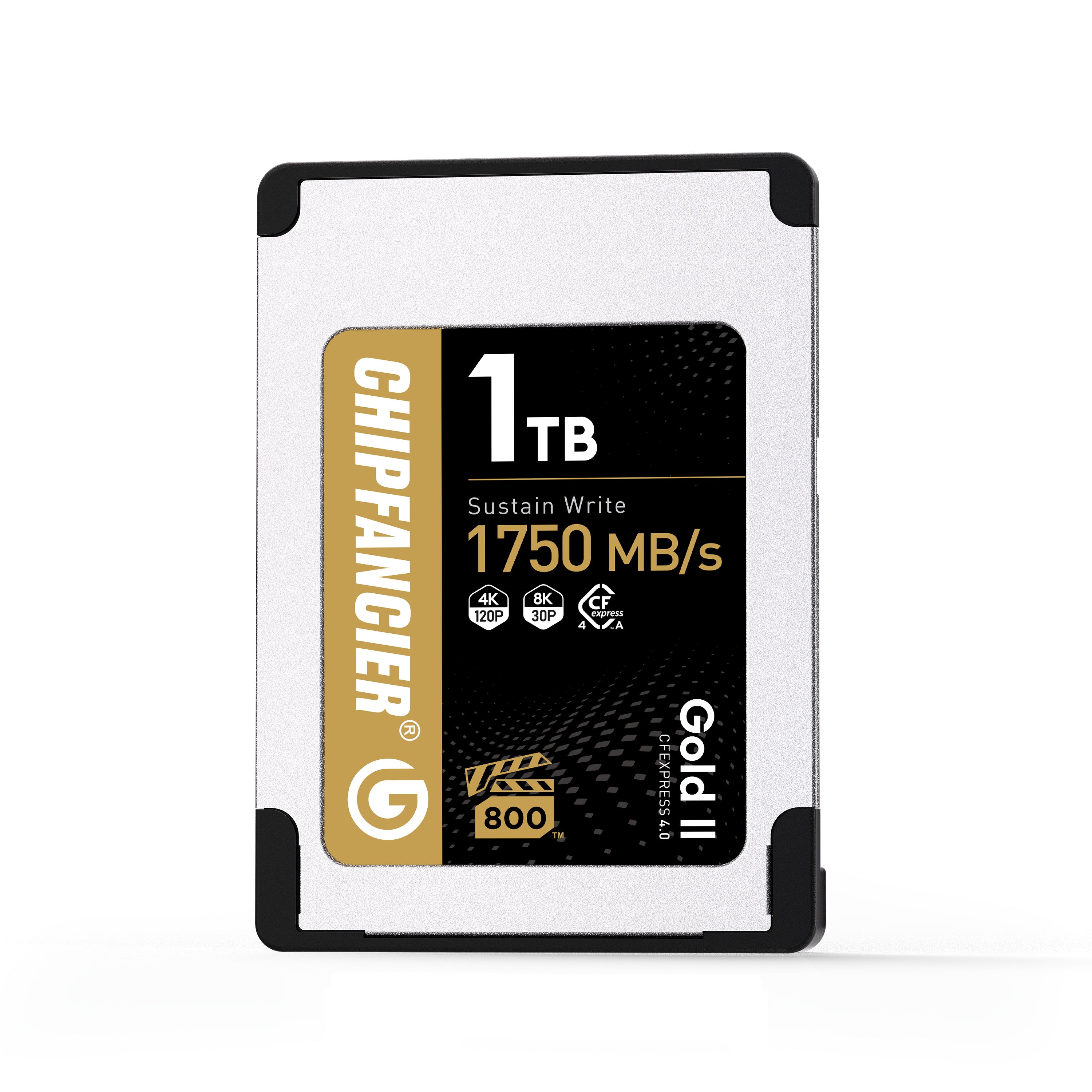

CHIPFANCIER CFexpress Type A 4.0 Gold Gen II Memory Card VPG800 Certified

Sale price$239.99 USD

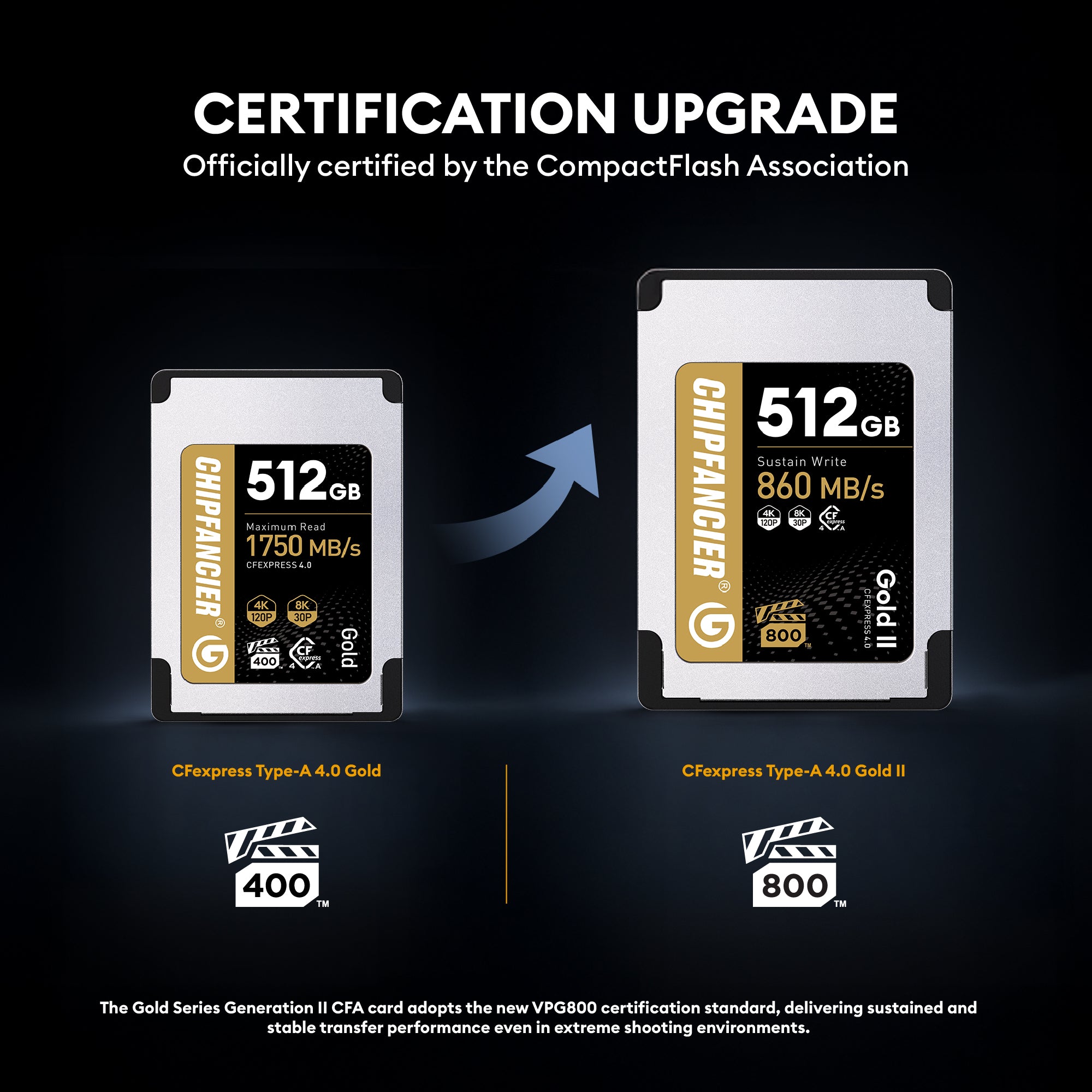

New VPG800 certified for sustained stable performance.

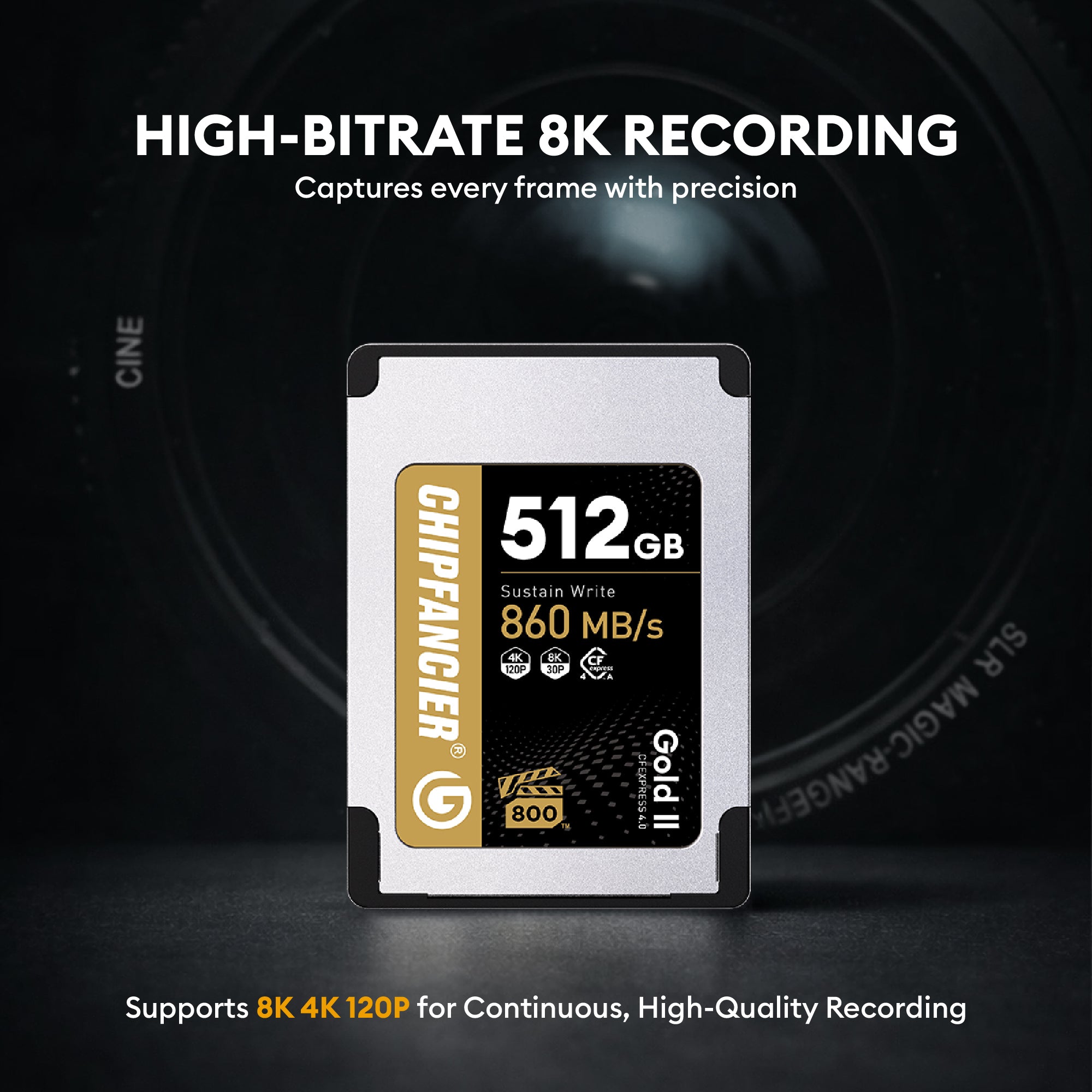

Supports 8K 4K 120P for Continuous, High-Quality Recording


Capacity: 512GB

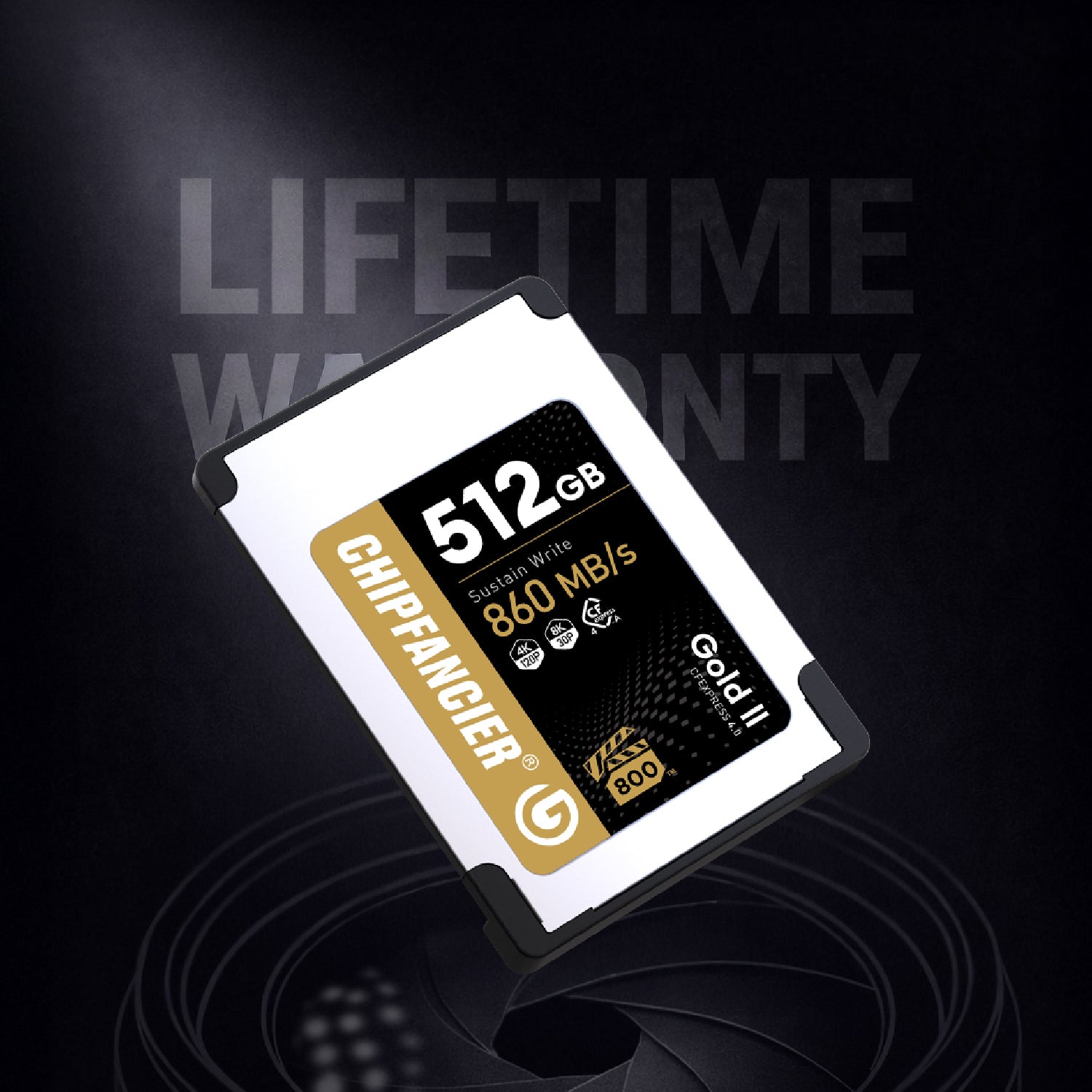

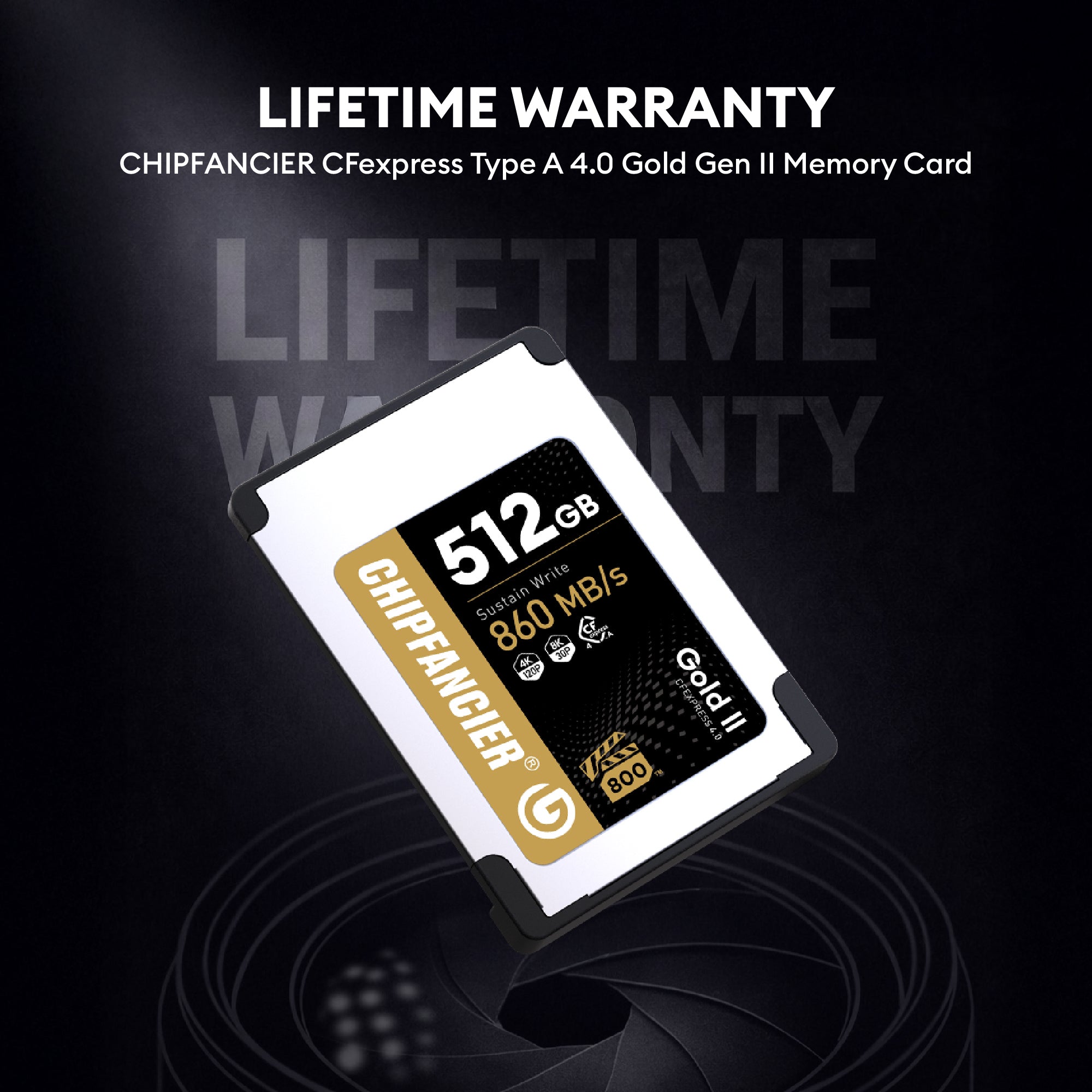

Lifetime Warranty

Our Gold Card II memory card comes with a lifetime warranty. In the event of non-human damage, we provide free replacement or repair. As long as the product is used under normal conditions, we take full responsibility for any quality issues.

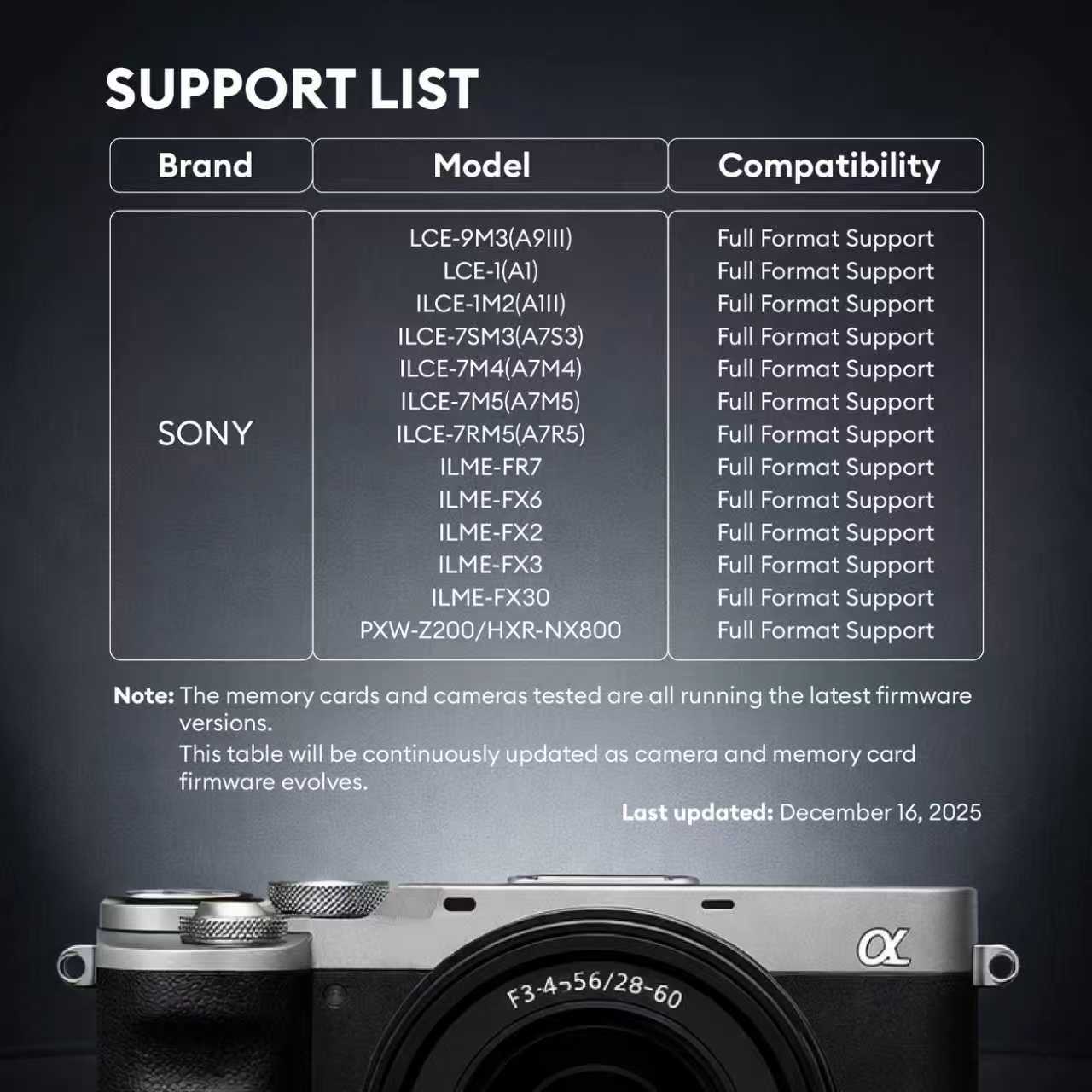

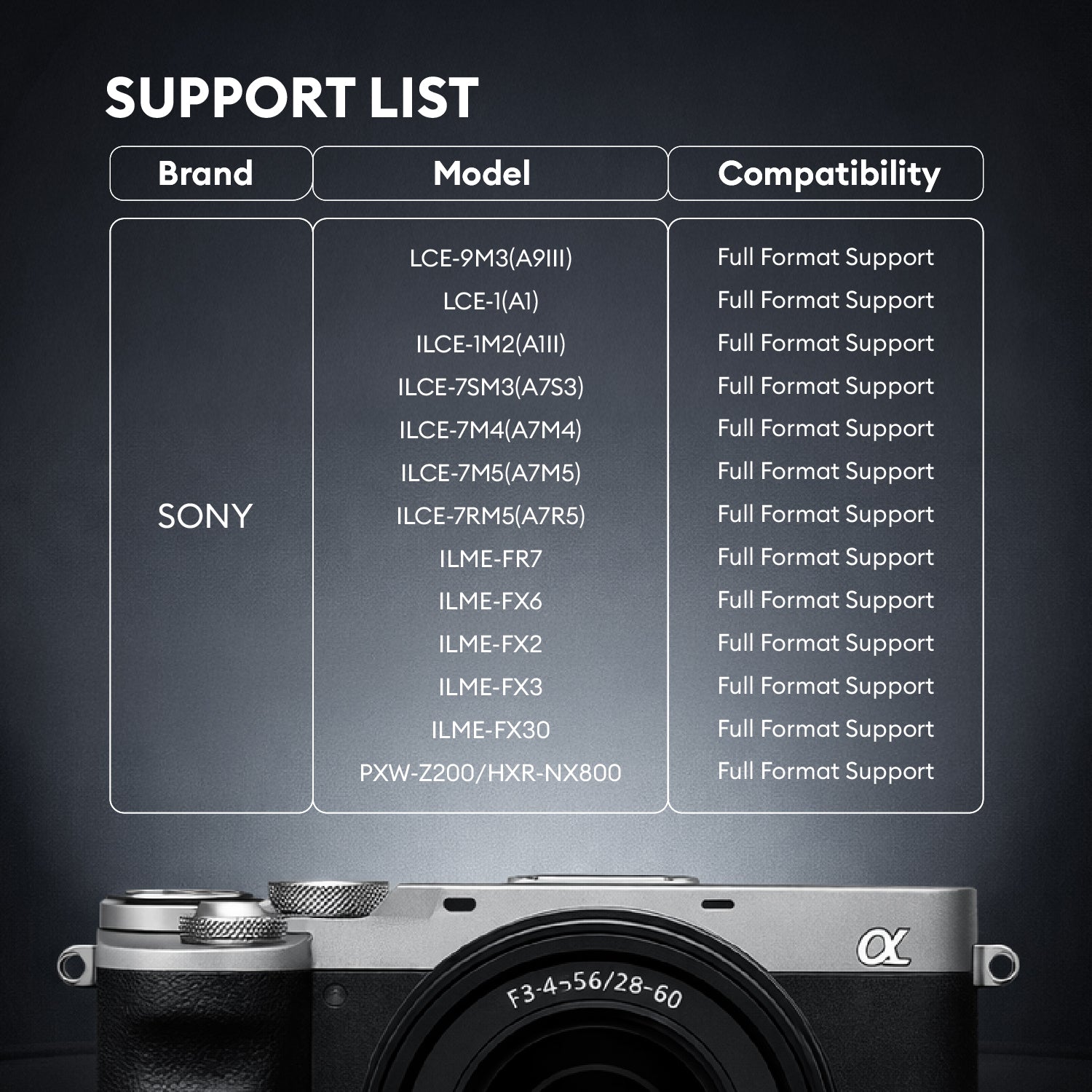

Device Compatibility

Note:The memory cards and cameras tested are all running the latest firmware versions.The Gold Card Gen 2 is compatible with all cameras featuring CFA card slots.This table will be continuously updated as camera and memory card firmware evolves.

Last updated: December 16, 2025

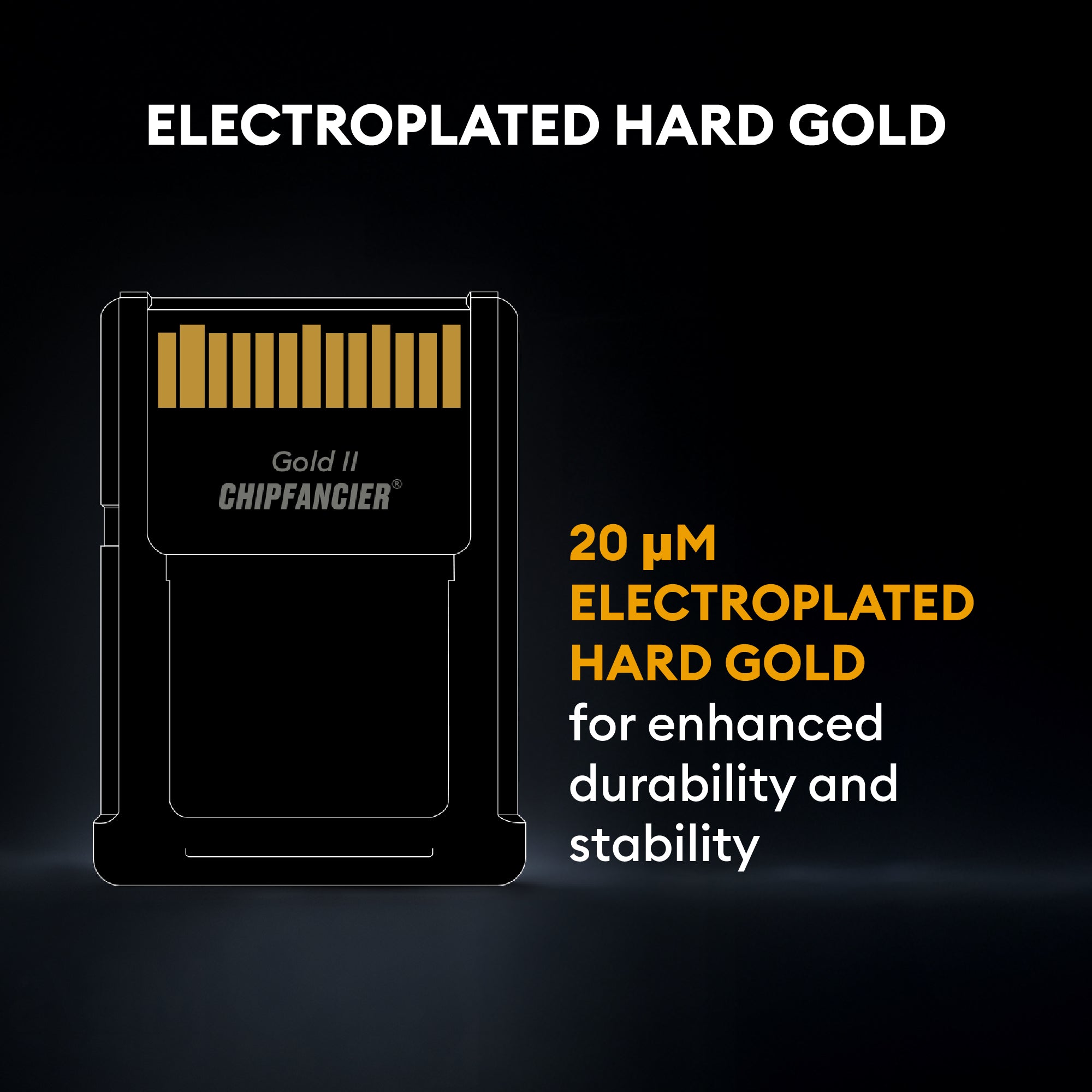

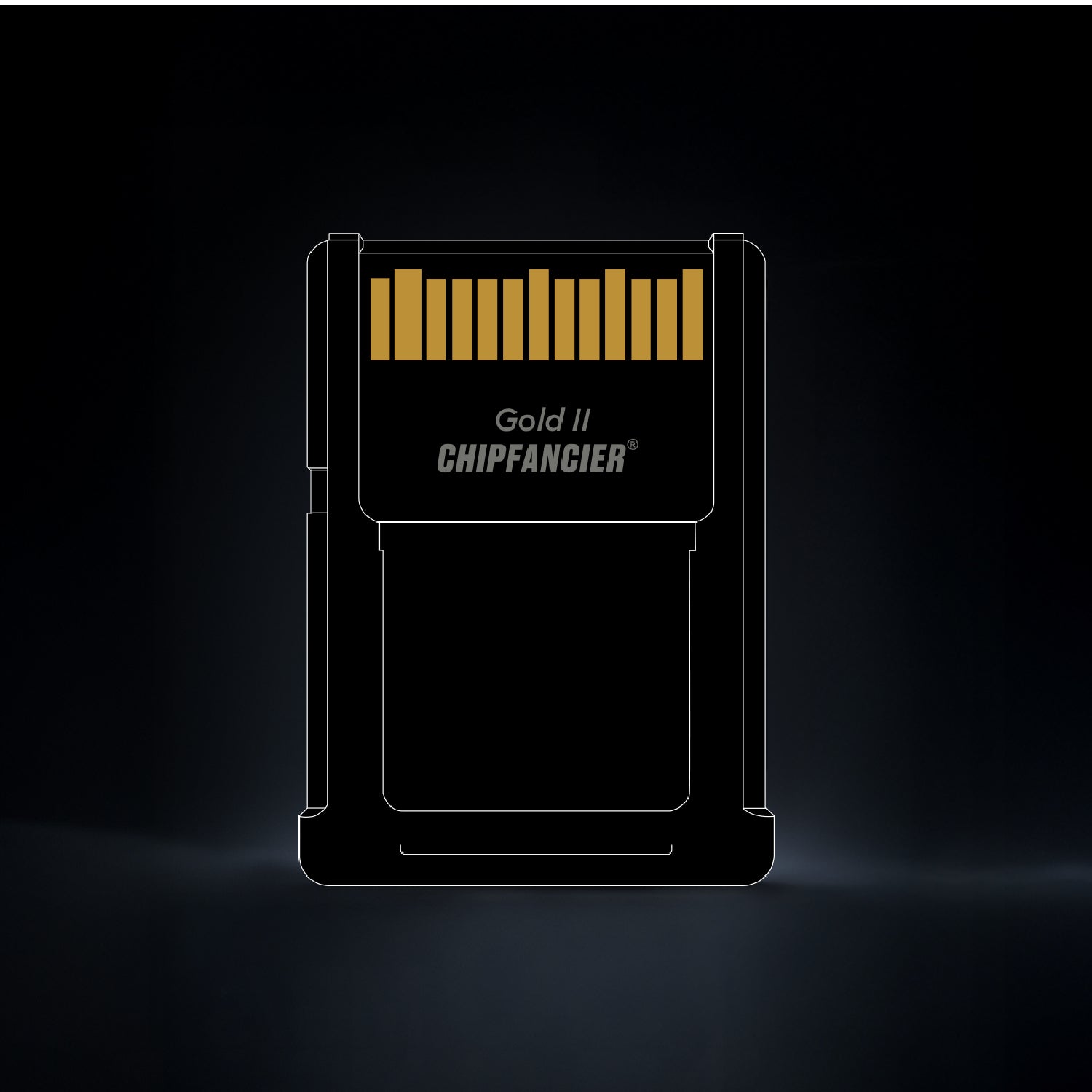

Electroplated Hard Gold Process

A 20 μm gold layer is applied through electroplating to ensure consistent contact quality, precise thickness control, and long-term structural reliability.

Algorithm iteration ensures stability across the entire drive

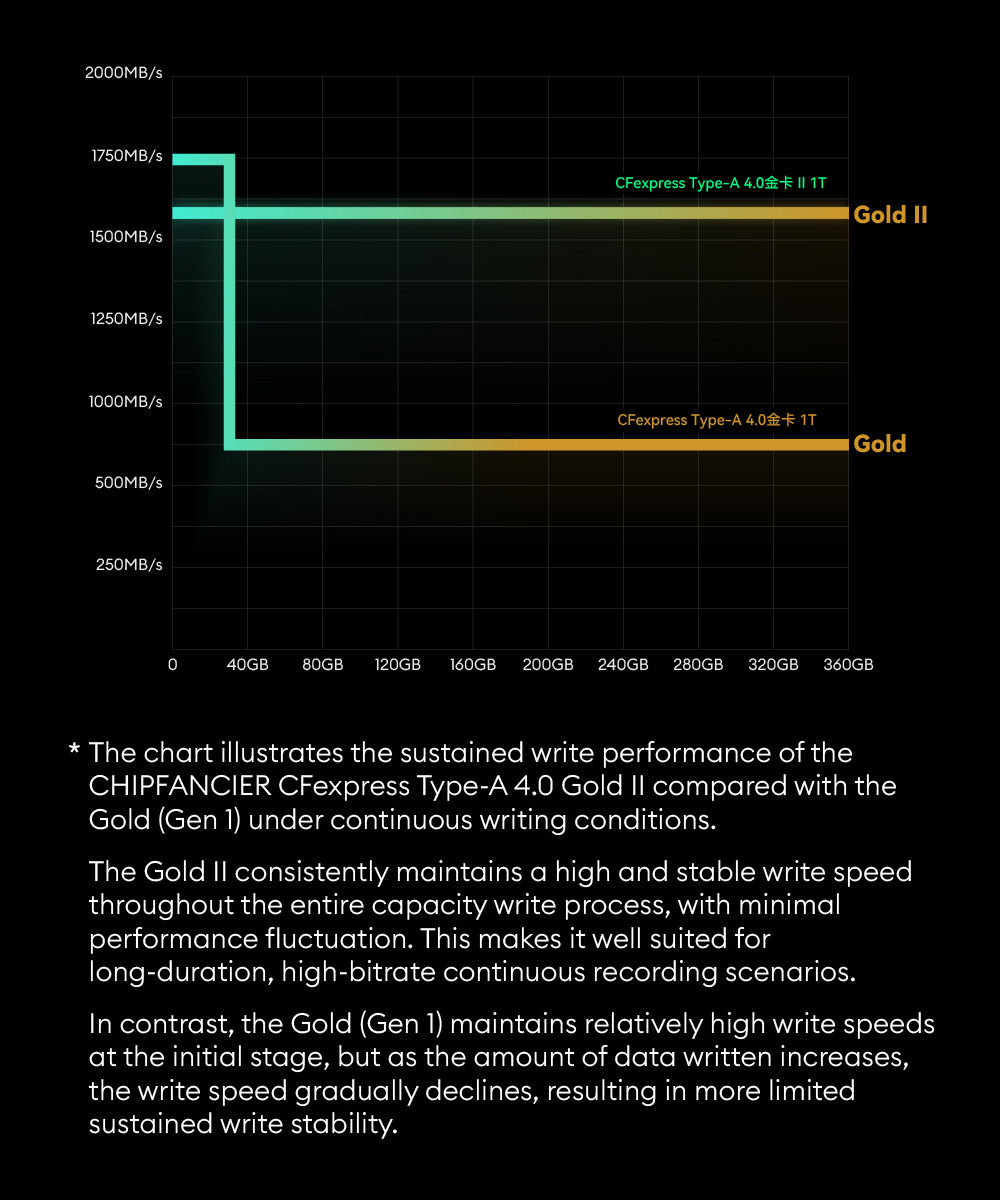

Stable Write, Reliable Performance

To achieve more reliable sustained write performance, the CFA 4.0 Gold II card adopts a TLC direct-write firmware algorithm, keeping write speeds stable across the entire capacity and ensuring safer, more reliable footage recording.

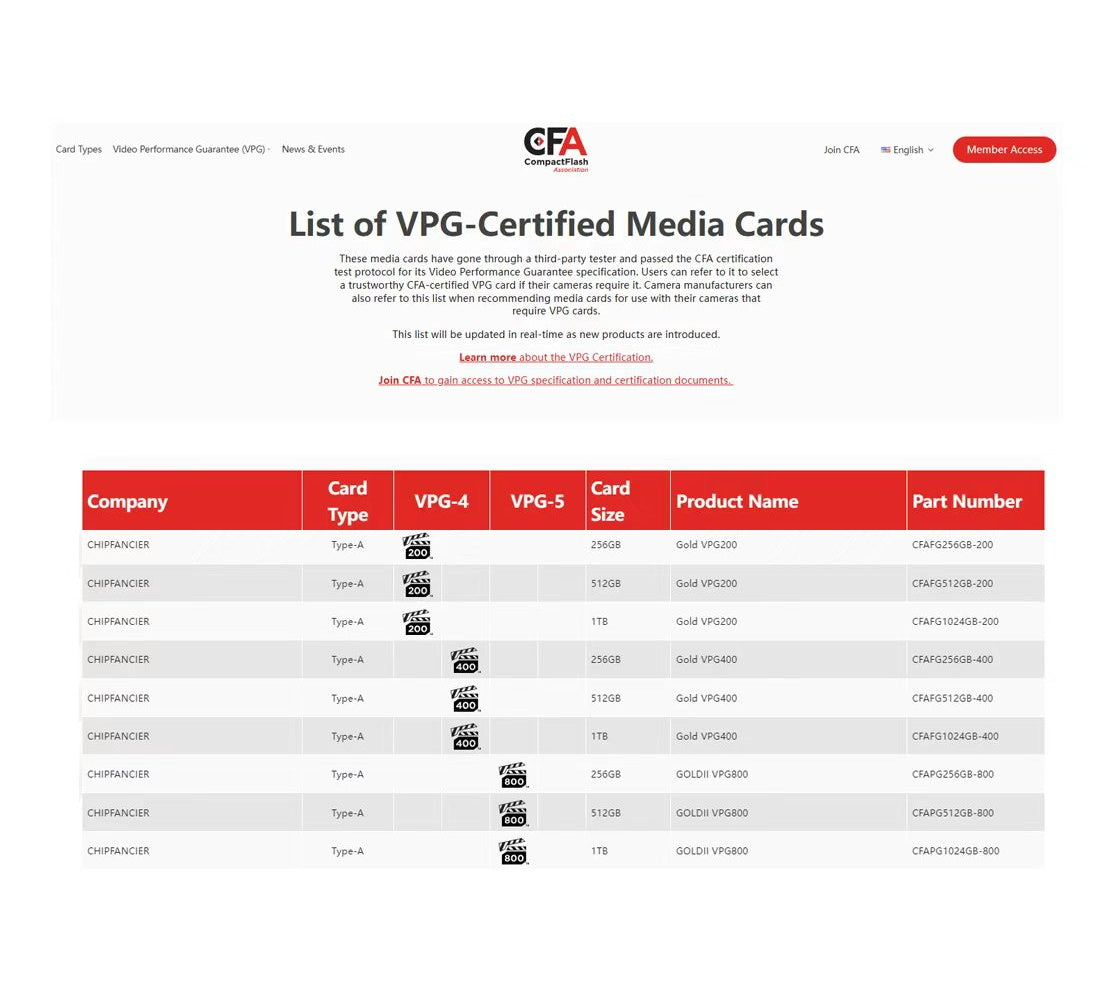

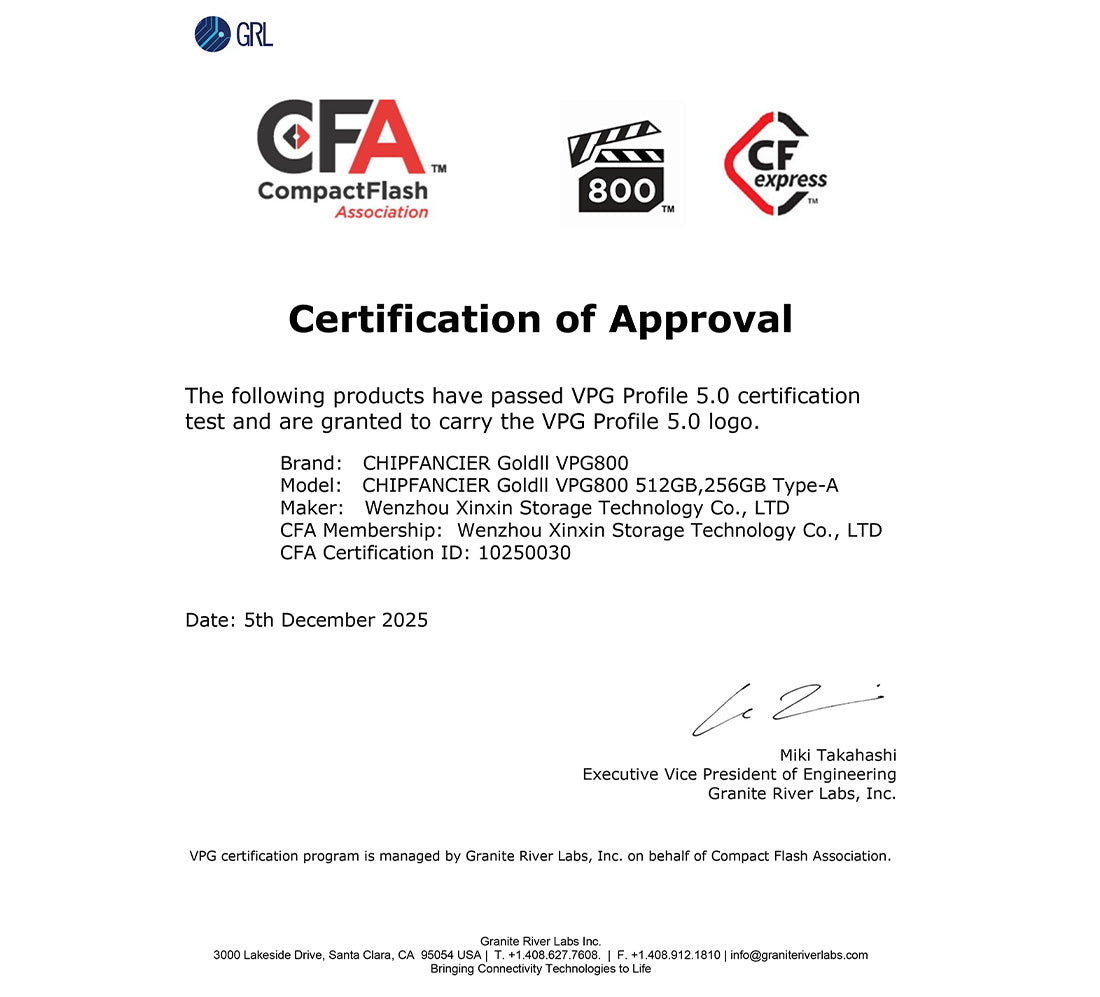

Officially certified by the CFA Association.

The association formulating the CFexpress Type-A standard.
The memory card tested and certified by the CompactFlashAssociation(CFA).

CHIPFANGIER®is an executive member of the global CompactFlash Association (CFA). We are committed to being responsible for formulating the CFA association protocol versions and voting on new protocols. This includes but is not limited to standard protocol products such as CF, Cfast, and CFexpress. Our brand products are developed, authorized, and tested in strict accordance with the standards formulated by the association to provide better stability and compatibility for the products.

About the CFexpress 4.0 type-A Gold II card

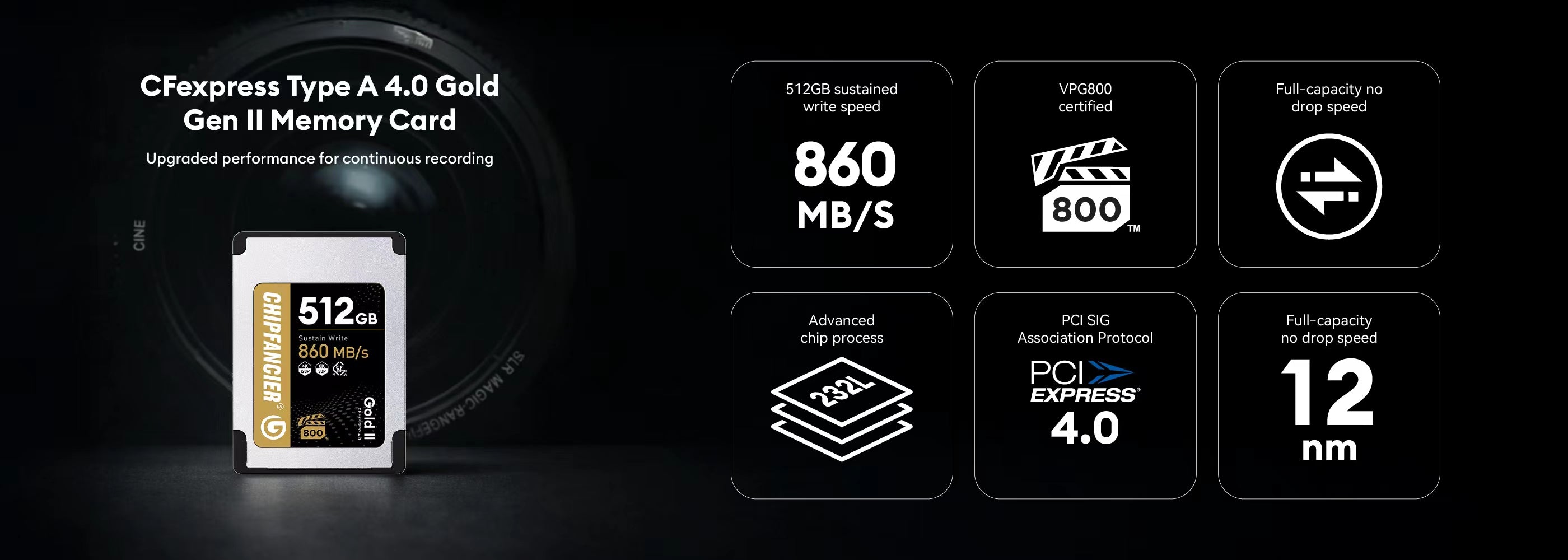

CFA4.0 Gold II Edition Detailed Parameters

The CFexpress 4.0 Type-A Gold II card delivers sustained read and write performance with enhanced stability and reliable durability. Designed for high-resolution video and continuous shooting, it ensures smooth operation in demanding professional workflows.

Interface

CFexpress Type-A

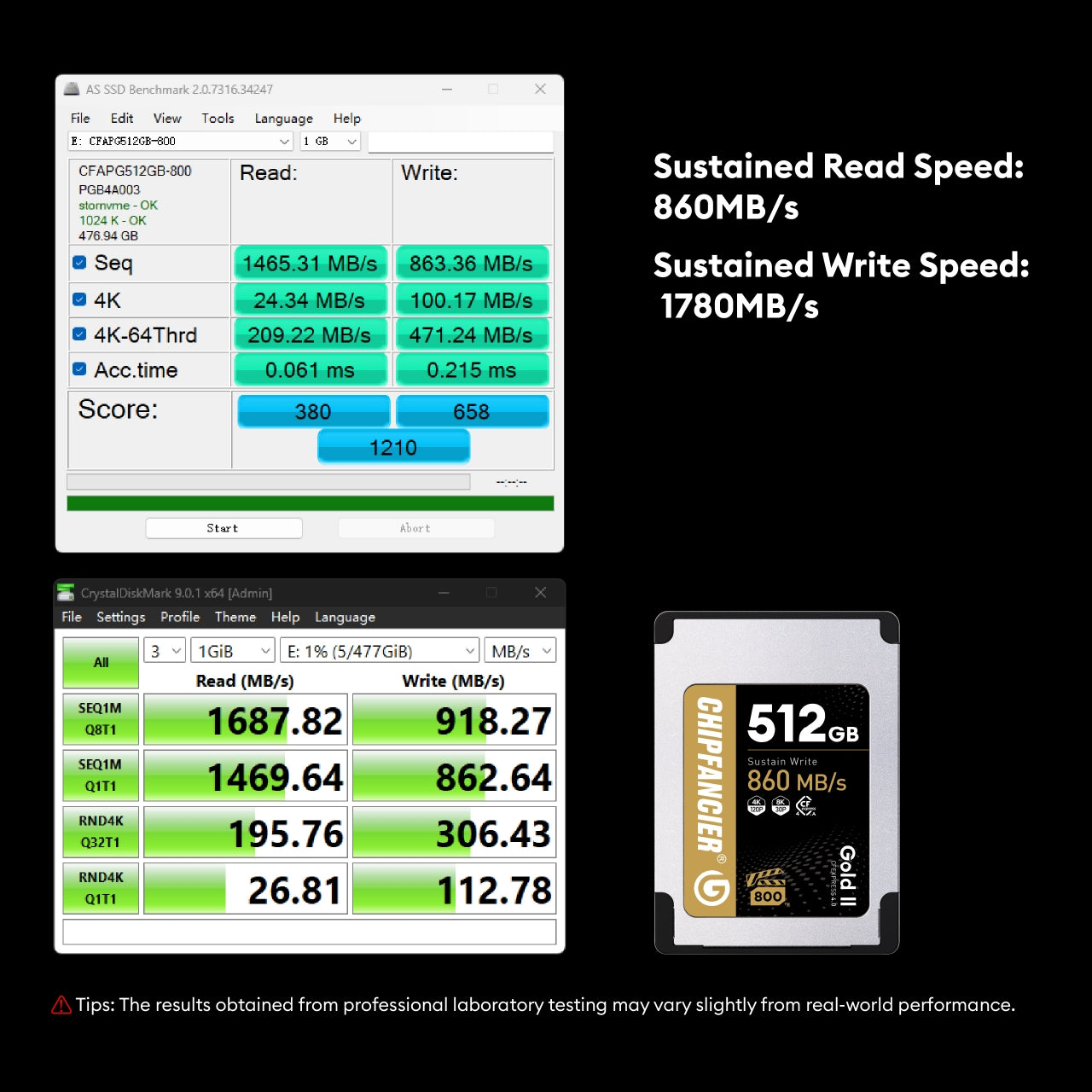

Product speed

512GB:Sustain Write 860MB/S
512GB:Sustain Read 1780MB/S

1 TB:Sustain Write 1560MB/S
1 TB Sustain Read:3500MB/S

Speed Level

VPG800

Storage Type

3D TLC

Storage Stack

232L

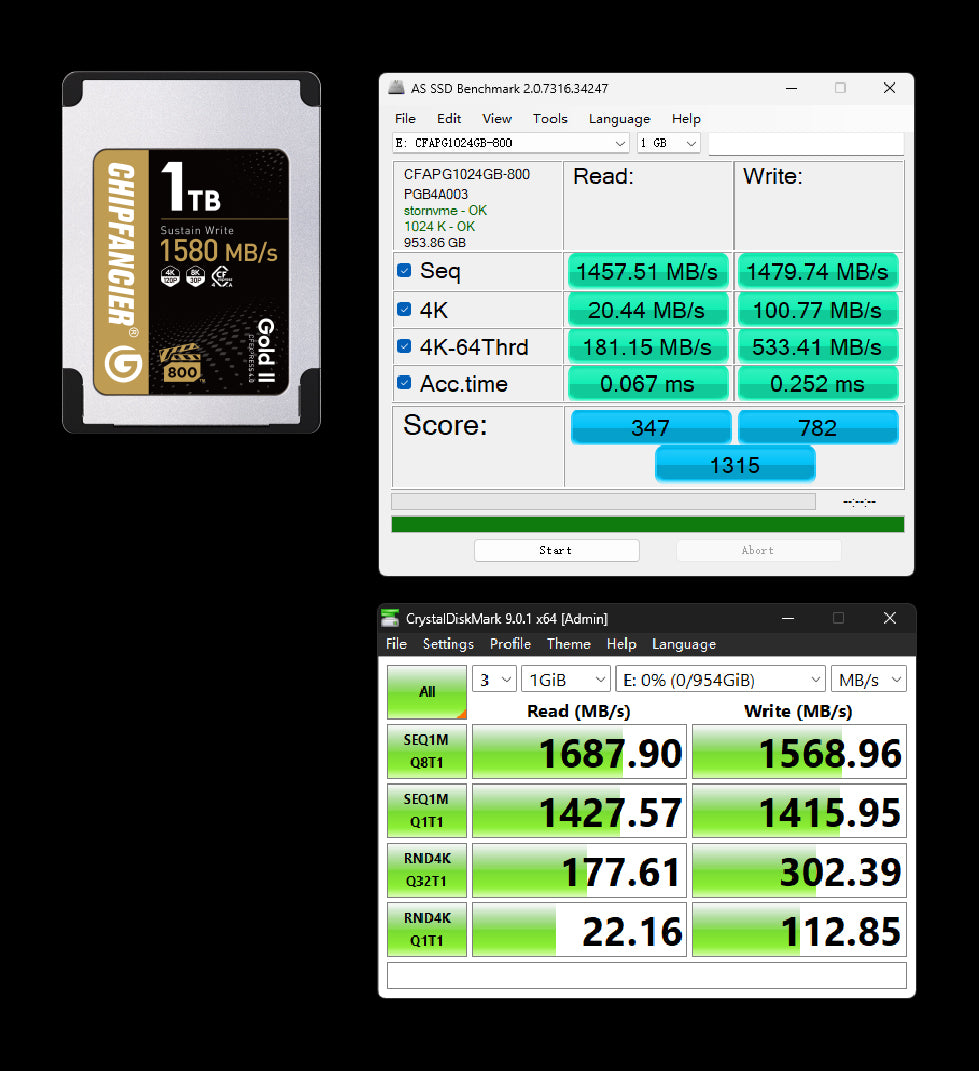

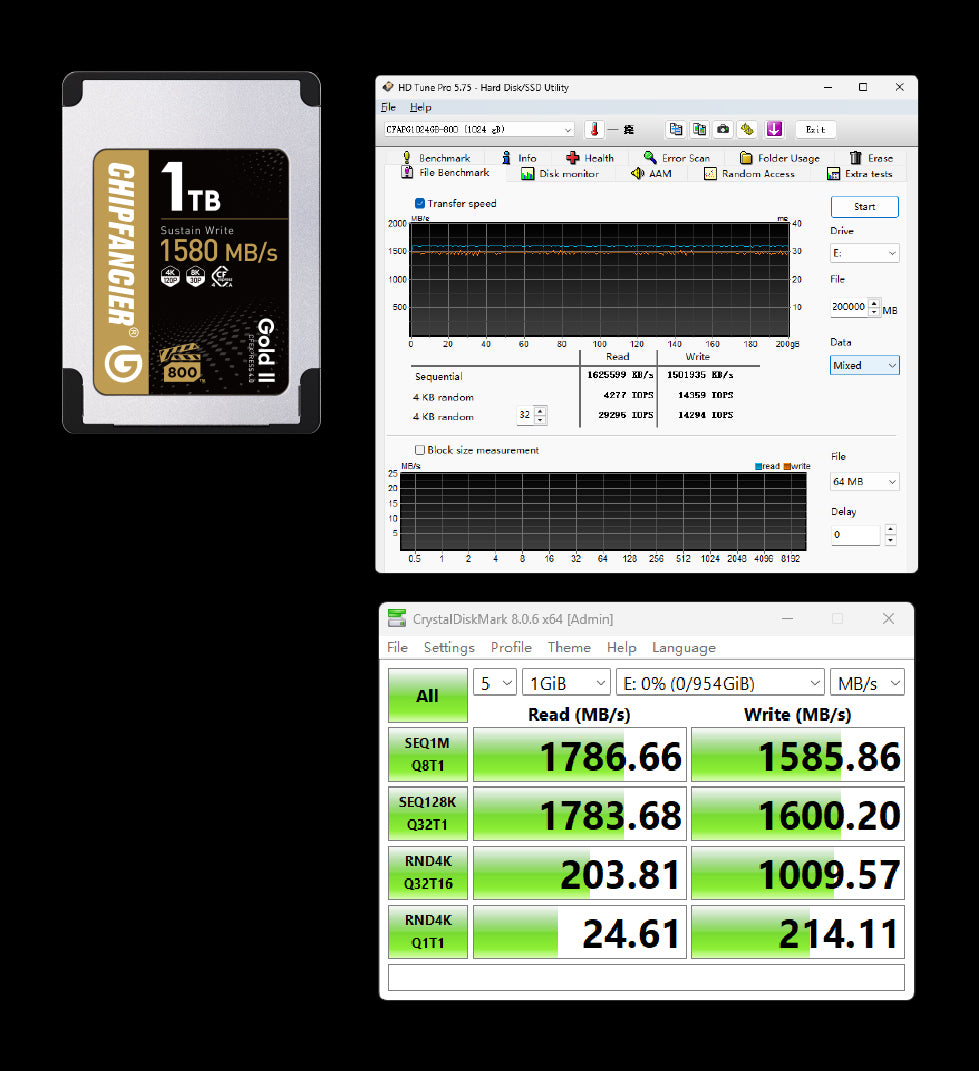

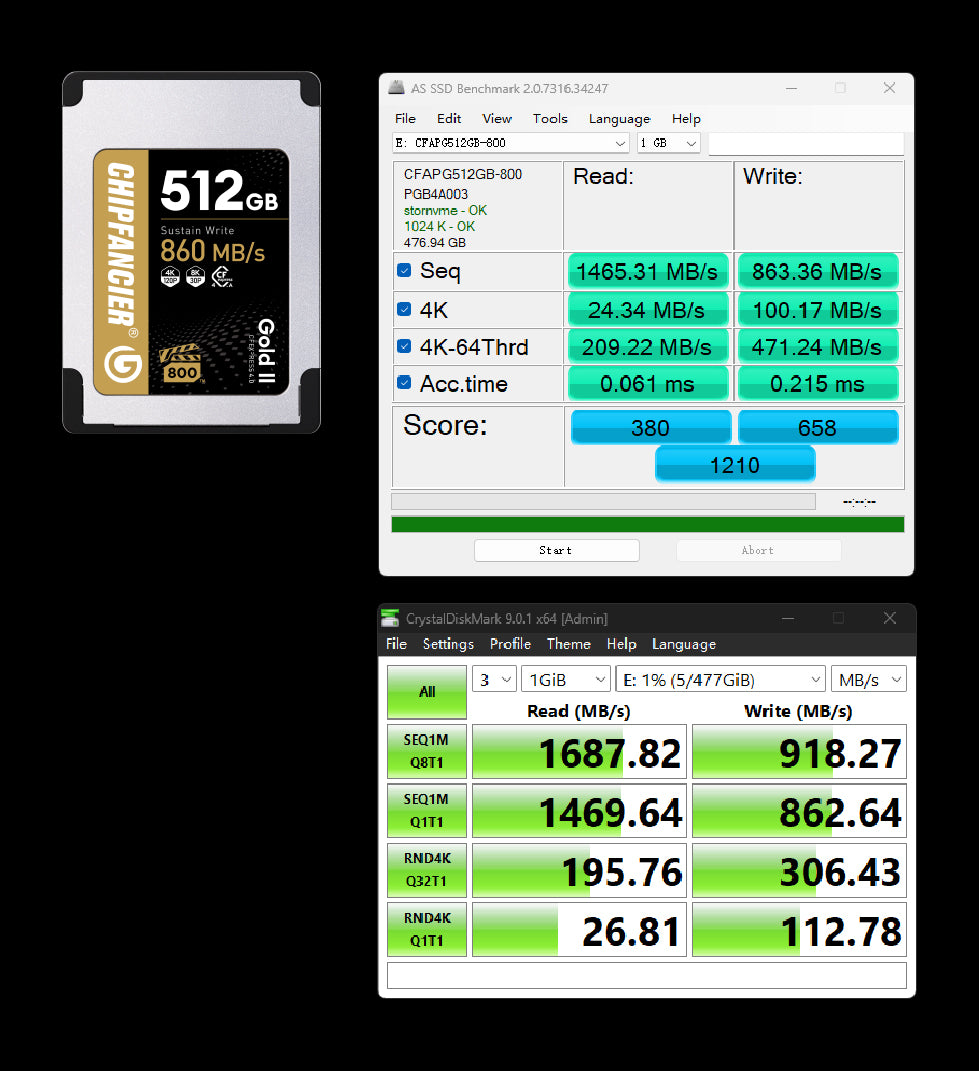

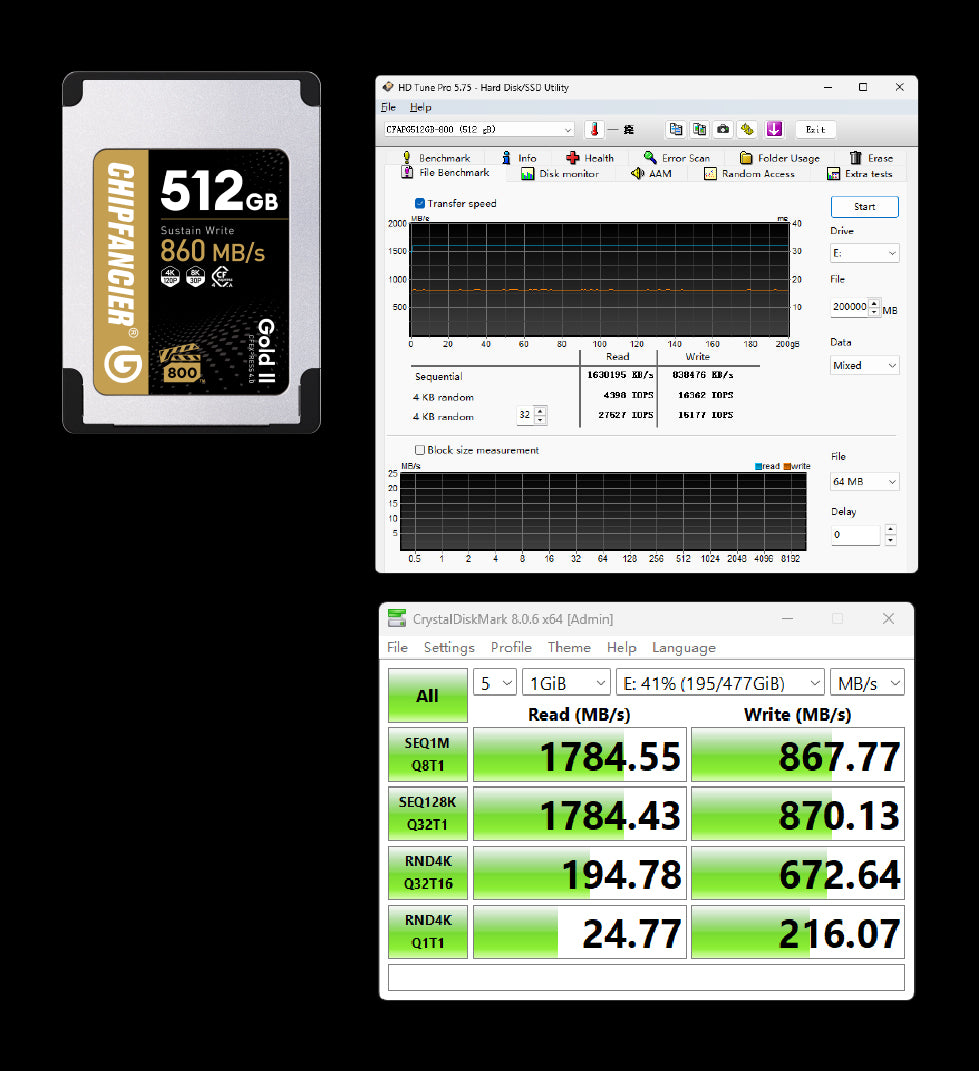

Measured Performance

Test Interface: CFexpress card connected to the motherboard PCIe slot via an adapter
Signal: PCIe 4.0 lossless transmission
Motherboard: MSI MPG Z790 EDGE WIFI DDR4
CPU: Intel® Core™ i9-14900KF @ 5.8 GHz (P-cores) / 4.5 GHz (E-cores)(All CPU power-saving features disabled)
Memory: OLOy DDR4 8GB ×2, 4000 MHz, Gear 1, CL14-14-14-28
Storage: Samsung PM9A1 1TB 2280 NVMe, PCIe 4.0
Operating System: Windows 11 Enterprise (x64) 24H2(Power mode set to Ultimate Performance)
Driver: System default storahci

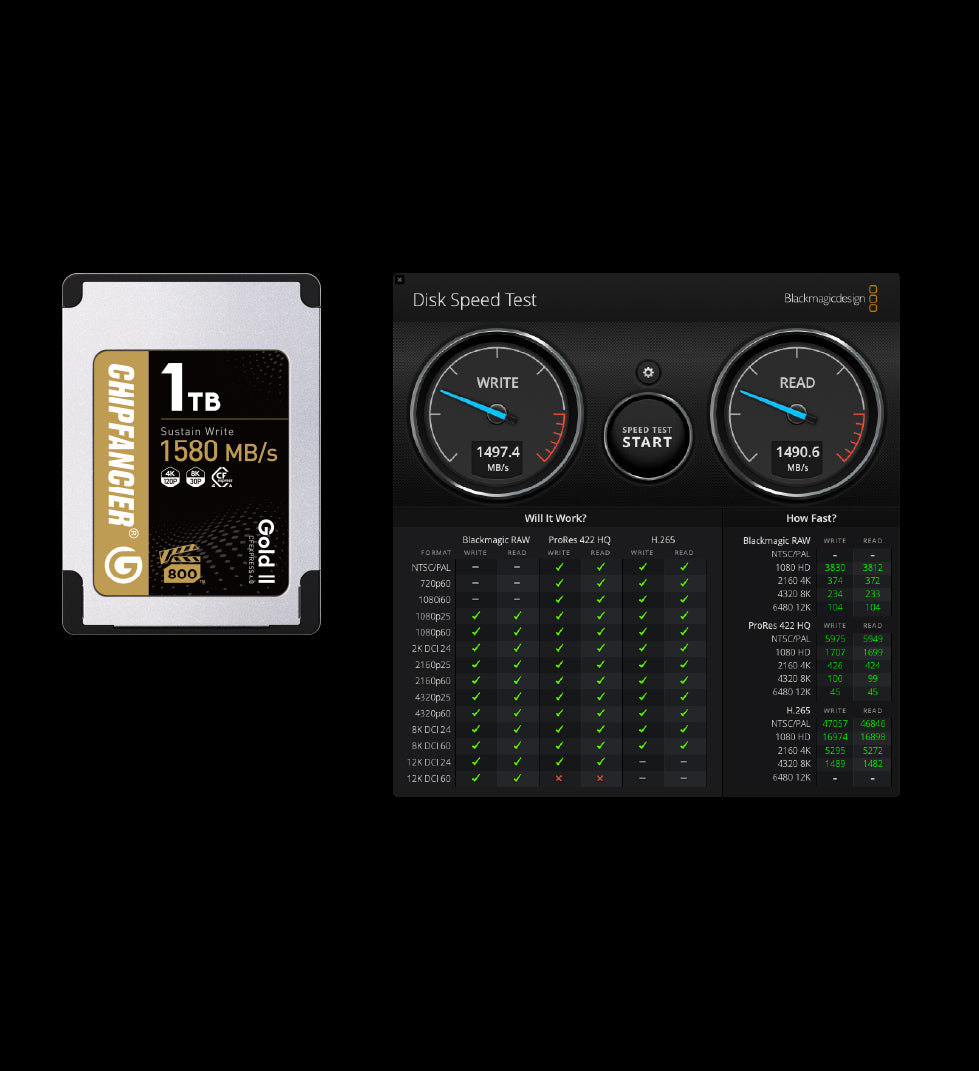

Measured Performance

Test Interface:USB4 40 Gb/s card reader connected to a Thunderbolt 4 40 Gb/s port
Signal:PCIe 4.0 transmission
Device:Mac mini (2024)
CPU:Apple M4
Memory:Apple 16 GB
Storage:Apple 256 GB
Operating System:macOS Sequoia 15.1.1

Measured Performance

Test Interface: CFexpress card connected to the motherboard PCIe slot via an adapter
Signal: PCIe 4.0 lossless transmission
Motherboard: MSI MPG Z790 EDGE WIFI DDR4
CPU: Intel® Core™ i9-14900KF @ 5.8 GHz (P-cores) / 4.5 GHz (E-cores)(All CPU power-saving features disabled)
Memory: OLOy DDR4 8GB ×2, 4000 MHz, Gear 1, CL14-14-14-28
Storage: Samsung PM9A1 1TB 2280 NVMe, PCIe 4.0
Operating System: Windows 11 Enterprise (x64) 24H2(Power mode set to Ultimate Performance)
Driver: System default storahci

Measured Performance

Test Interface:USB4 40 Gb/s card reader connected to a Thunderbolt 4 40 Gb/s port
Signal:PCIe 4.0 transmission
Device:Mac mini (2024)
CPU:Apple M4
Memory:Apple 16 GB
Storage:Apple 256 GB
Operating System:macOS Sequoia 15.1.1

Measured Performance

Test Interface: USB4 40Gb/s card reader connected to a Thunderbolt 4 40Gb/s port
Signal: PCIe 4.0 transmission
Device: Beelink SER7
CPU: AMD Ryzen™ 7 7840HS, Core 5.1G (all CPU power-saving features disabled)
Memory: Gloway DDR5 M-die 12GB ×2, 4800 MHz, Gear 2, C40-39-39-77
Storage: Samsung 990 PRO 2TB 2280 NVMe, PCIe 4.0
OS: Windows 11 Enterprise (x64) 24H2 (Power mode set to Best Performance)
Driver: System default storahci

Measured Performance

Test Interface: USB4 40Gb/s card reader connected to a Thunderbolt 4 40Gb/s port
Signal: PCIe 4.0 transmission
Device: Beelink SER7
CPU: AMD Ryzen™ 7 7840HS, Core 5.1G (all CPU power-saving features disabled)
Memory: Gloway DDR5 M-die 12GB ×2, 4800 MHz, Gear 2, C40-39-39-77
Storage: Samsung 990 PRO 2TB 2280 NVMe, PCIe 4.0
OS: Windows 11 Enterprise (x64) 24H2 (Power mode set to Best Performance)
Driver: System default storahci

Measured Performance

Test Interface: USB4 40Gb/s card reader connected to a Thunderbolt 4 40Gb/s port
Signal: PCIe 4.0 transmission
Device: Beelink SER7
CPU: AMD Ryzen™ 7 7840HS, Core 5.1G (all CPU power-saving features disabled)
Memory: Gloway DDR5 M-die 12GB ×2, 4800 MHz, Gear 2, C40-39-39-77
Storage: Samsung 990 PRO 2TB 2280 NVMe, PCIe 4.0
OS: Windows 11 Enterprise (x64) 24H2 (Power mode set to Best Performance)
Driver: System default storahci

Measured Performance

Test Interface: USB4 40Gb/s card reader connected to a Thunderbolt 4 40Gb/s port
Signal: PCIe 4.0 transmission
Device: Beelink SER7
CPU: AMD Ryzen™ 7 7840HS, Core 5.1G (all CPU power-saving features disabled)
Memory: Gloway DDR5 M-die 12GB ×2, 4800 MHz, Gear 2, C40-39-39-77
Storage: Samsung 990 PRO 2TB 2280 NVMe, PCIe 4.0
OS: Windows 11 Enterprise (x64) 24H2 (Power mode set to Best Performance)
Driver: System default storahci

Measured Performance

Test Interface:USB4 40 Gb/s card reader connected to a Thunderbolt 4 40 Gb/s port
Signal:PCIe 4.0 transmission
Device:Mac mini (2024)
CPU:Apple M4
Memory:Apple 16 GB
Storage:Apple 256 GB
Operating System:macOS Sequoia 15.1.1

Measured Performance

Test Interface:USB4 40 Gb/s card reader connected to a Thunderbolt 4 40 Gb/s port
Signal:PCIe 4.0 transmission
Device:Mac mini (2024)
CPU:Apple M4
Memory:Apple 16 GB
Storage:Apple 256 GB
Operating System:macOS Sequoia 15.1.1

Measured Performance

Test Interface:USB4 40 Gb/s card reader connected to a Thunderbolt 4 40 Gb/s port
Signal:PCIe 4.0 transmission
Device:Mac mini (2024)
CPU:Apple M4
Memory:Apple 16 GB
Storage:Apple 256 GB
Operating System:macOS Sequoia 15.1.1

Measured Performance

Test Interface:USB4 40 Gb/s card reader connected to a Thunderbolt 4 40 Gb/s port
Signal:PCIe 4.0 transmission
Device:Mac mini (2024)
CPU:Apple M4
Memory:Apple 16 GB
Storage:Apple 256 GB
Operating System:macOS Sequoia 15.1.1

Note:Due to interface bandwidth limitations, CFexpress card readers based on PCIe 3.0 ×1 and USB 3.1 Gen 2 reach their maximum bandwidth regardless of card capacity. As a result, further testing across different capacities was not conducted.

Approximate interface bandwidth limits are as follows:
USB 2.0 = 40 MB/s
USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1 = 400 MB/s
USB 3.1 Gen 2 / USB 3.2 Gen 2 = 800 MB/s

Series

Gold

Gold II

Interface

Type A

Type A

Association Certification

VPG400

VPG800

Capacity

256G/512G/1TB

512G/1TB

Memory Type

3D TLC

3D TLC

Memory Stack

232L

232L
